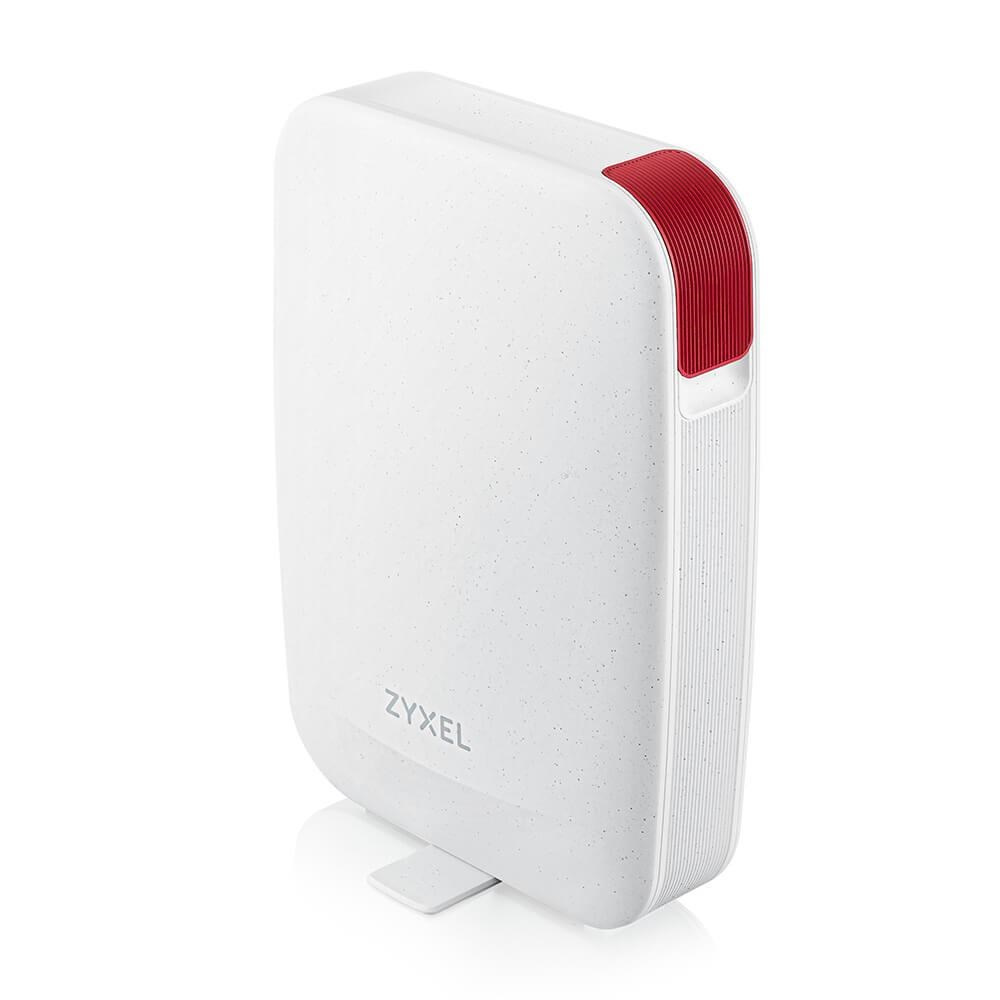

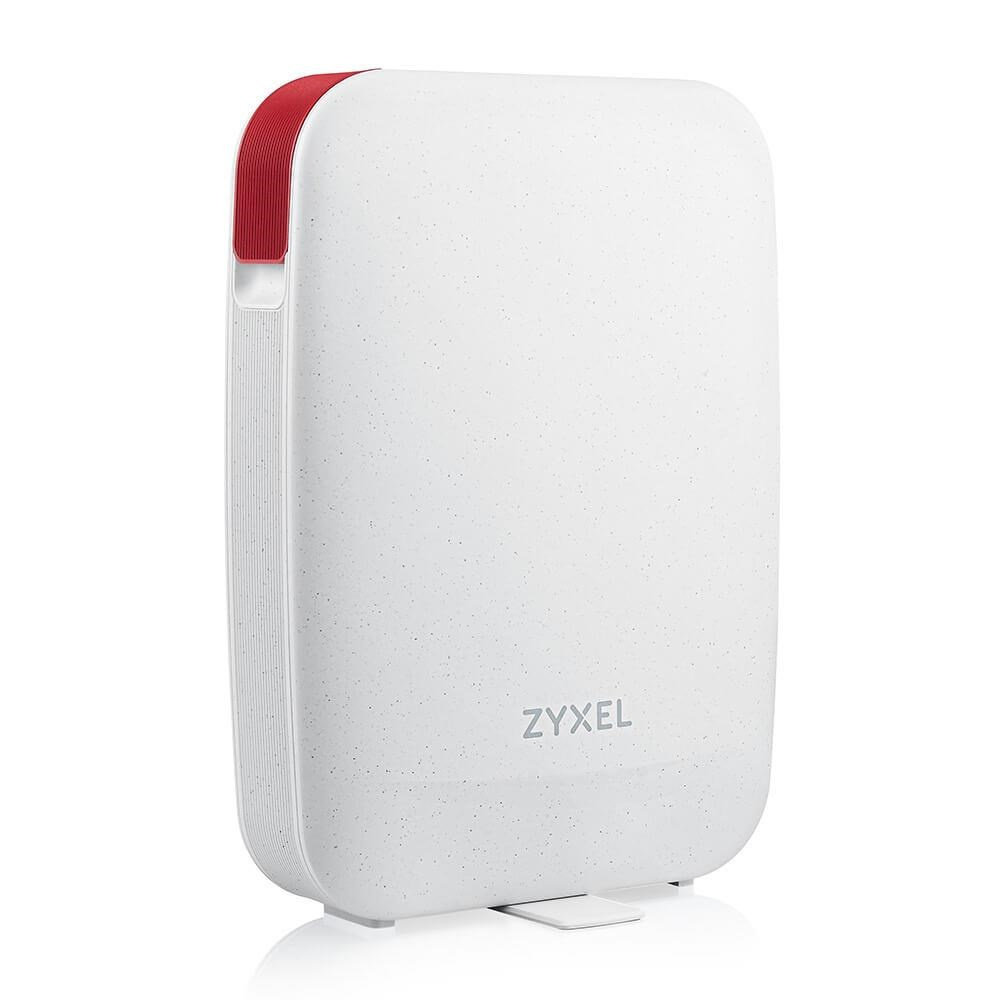

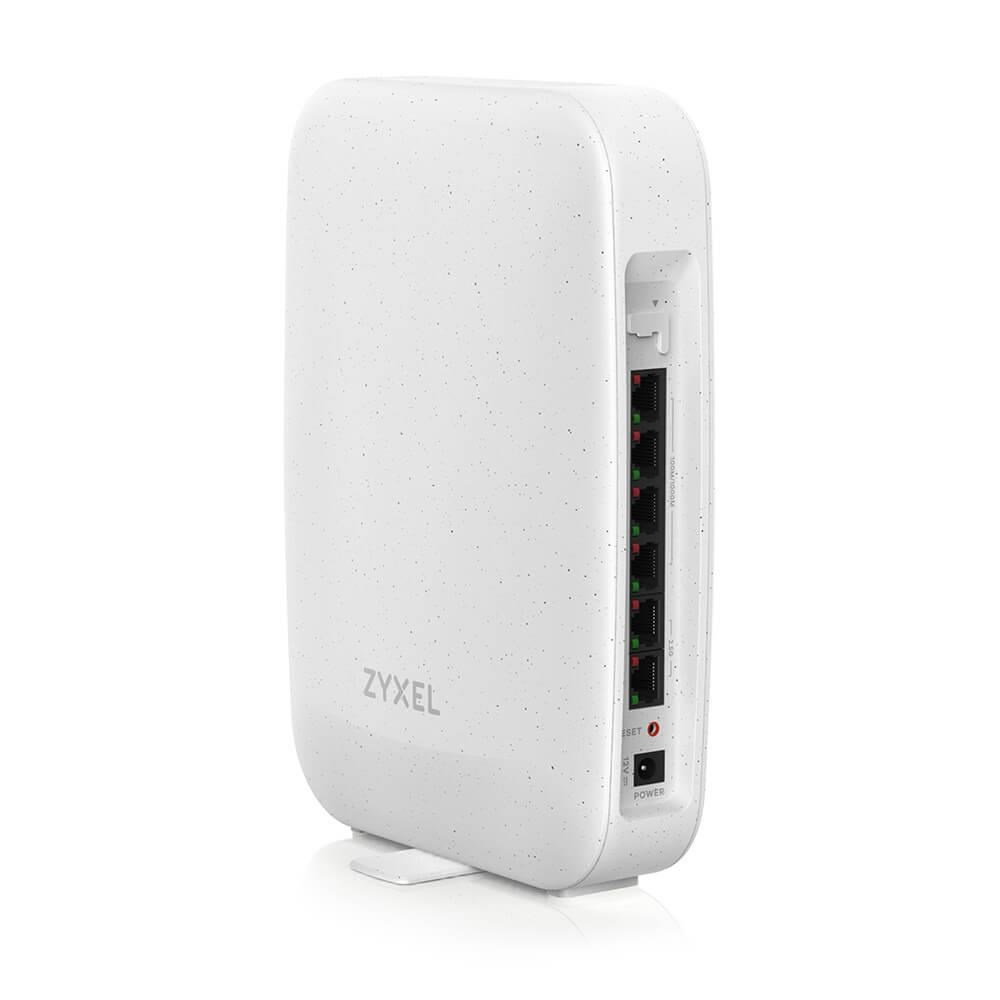

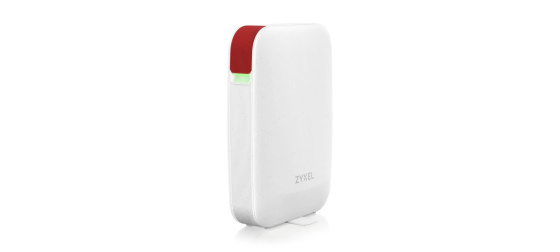

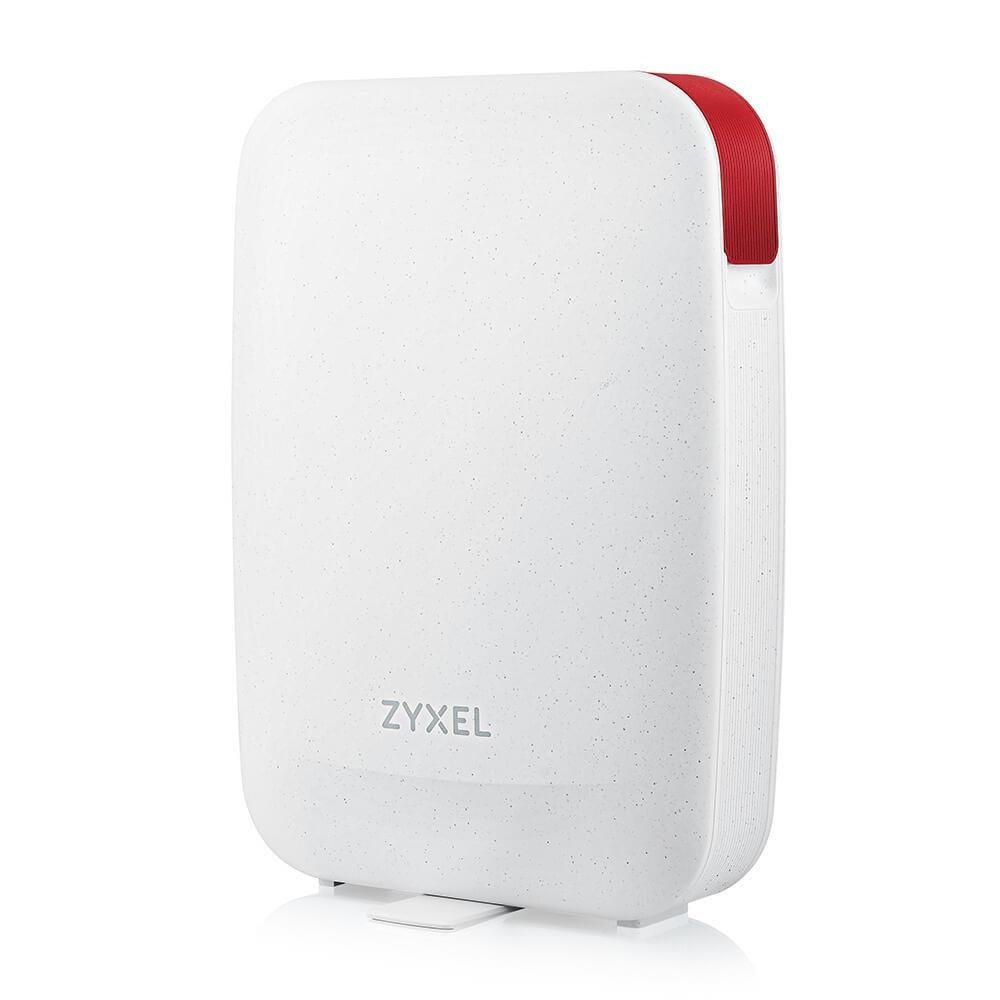

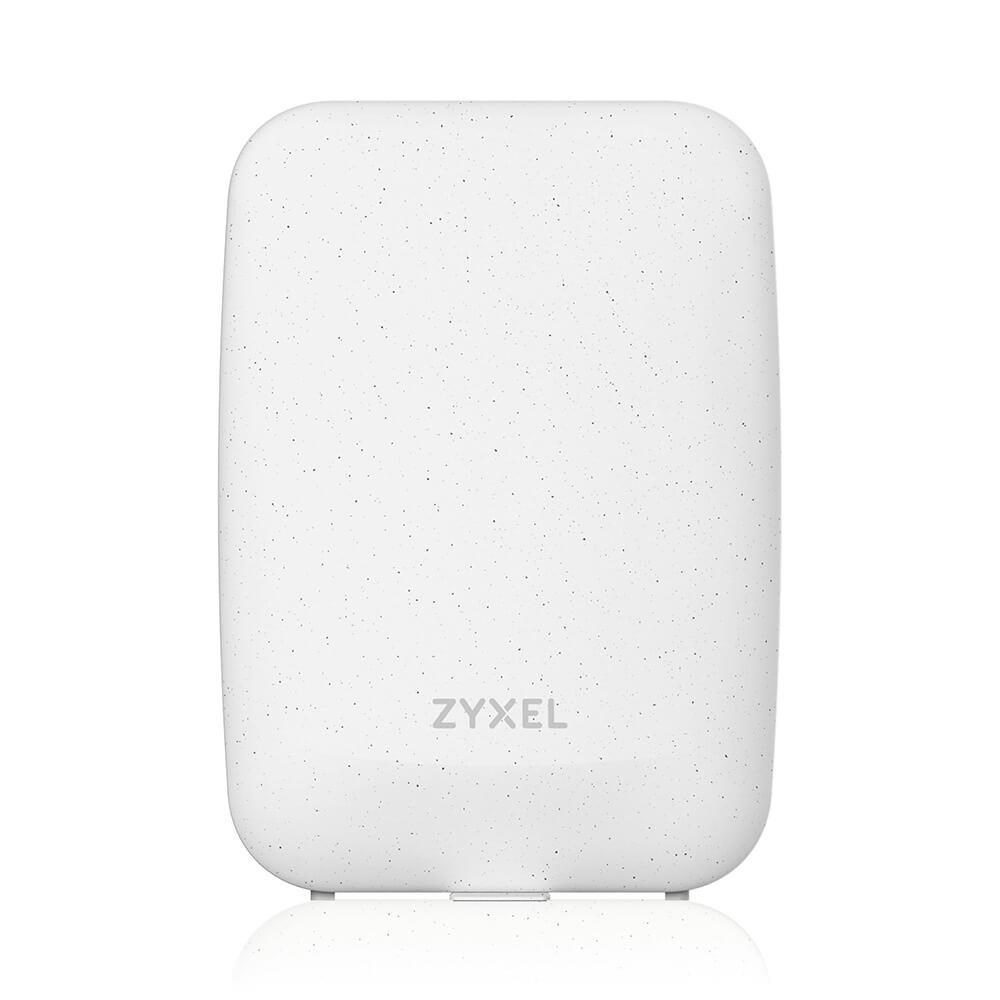

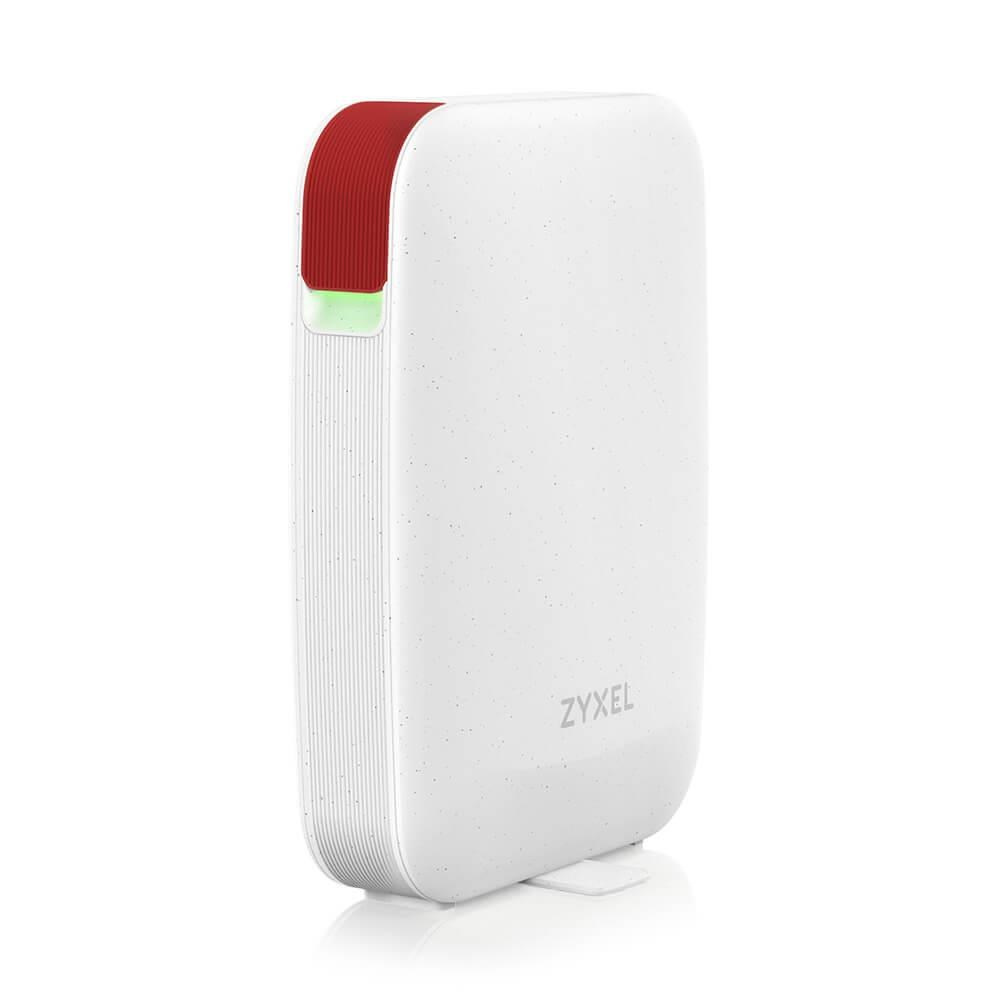

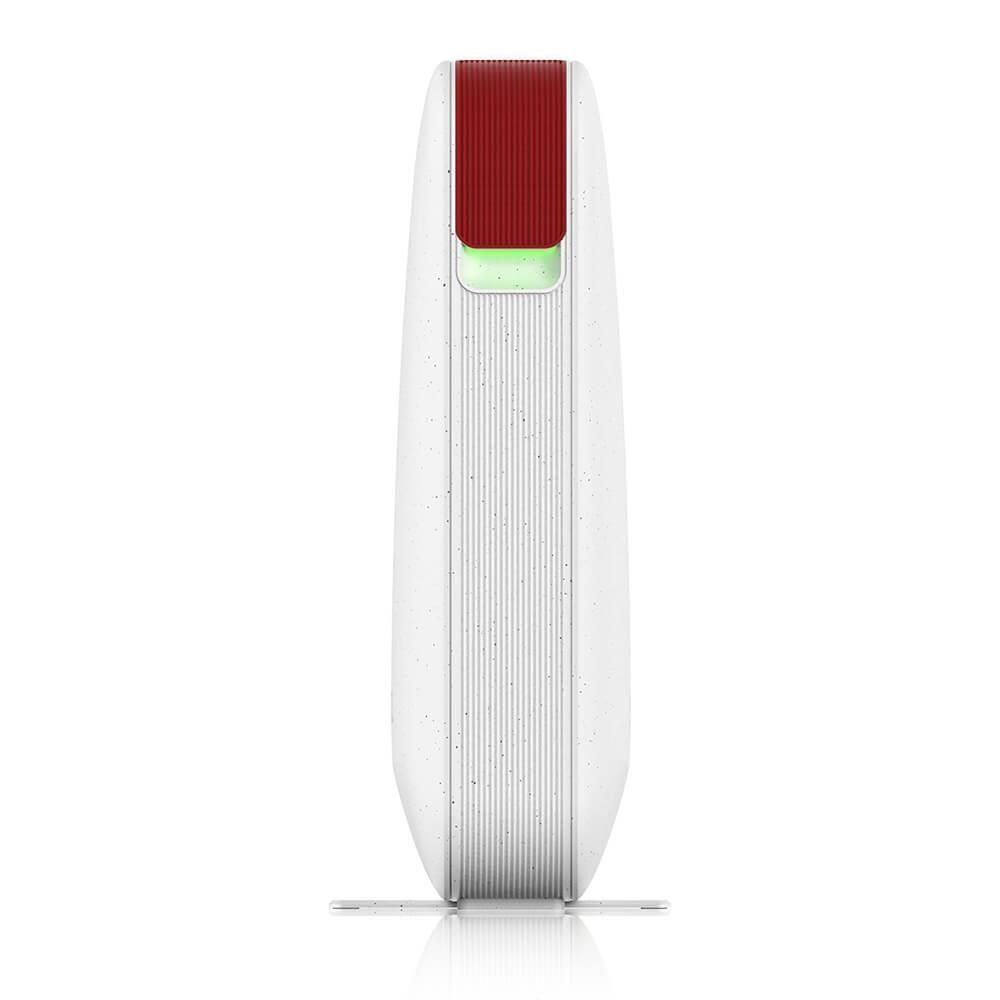

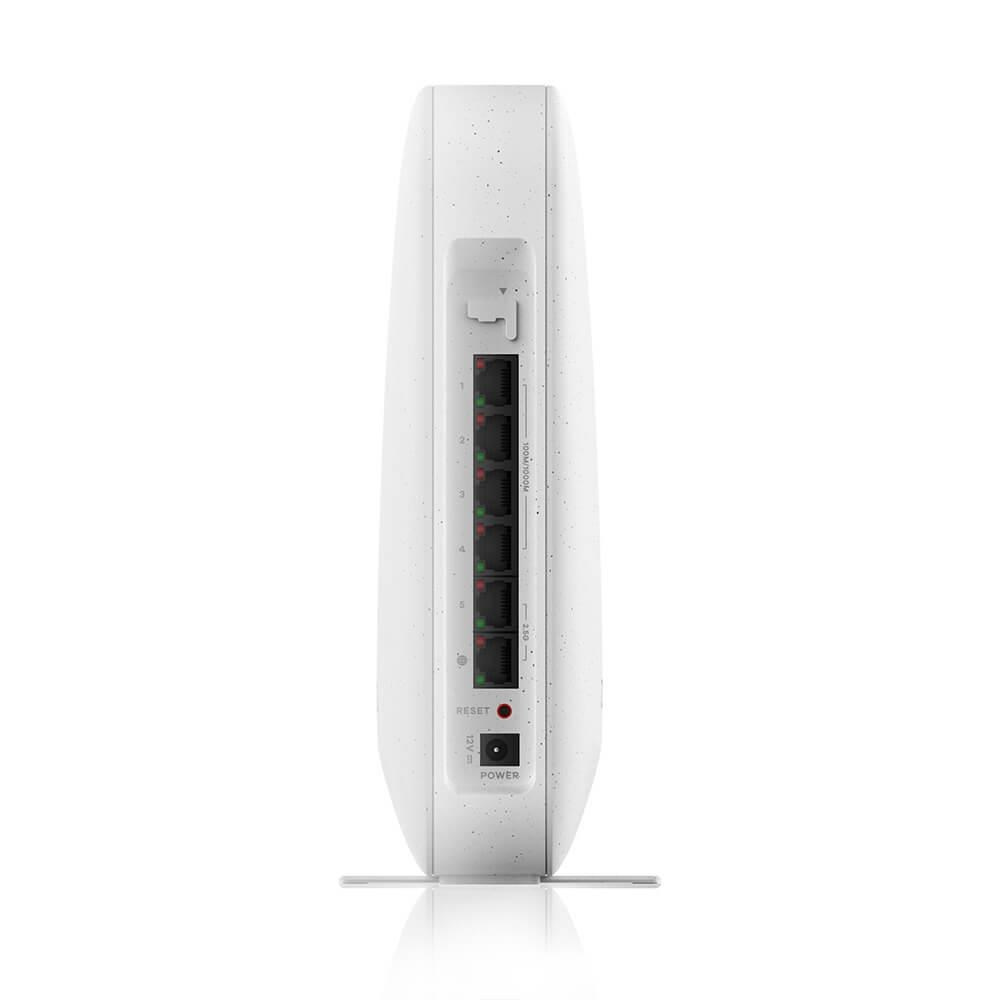

Zyxel USGLITE60AX Security Router - USG LITE 60, 4*GbE LAN, 1*2.5 GbE Lan, 2.5GbE WAN, Wifi 6 Mesh

Hardware Specifications ________________________________________ CPU Quad-core, 2.00 GHz RAM/FLASH 1 GB/512 MB Ethernet ports WAN: 1 x 100/1000/2500 Mbps LAN: 1 x 100/1000/2500 Mbps 4 x 100/1000 Mbps Wireless Specifications ________________________________________ Standard IEEE802.11 ax/ac/n/g/b/a MIMO MU-MIMO Wireless speed 2.4 GHz: 1150 Mbps 5 GHz: 4800 Mbps Frequency band 2.4 GHz: USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz: USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz Bandwidth 20-, 40- ,80-, and, 160-MHz Conducted typical transmit output power*1 US (2.4GHz/5GHz): 29/29 dBm EU (2.4GHz/5GHz): 20/29 dBm Wireless security Open, WPA2-PSK, WPA3-Personal SSID number 8 Fast roaming 802.11r/k/v MESH Networking Smart Mesh Antenna type 4 (internal) Antenna gain 2.4Ghz: 3.65 dBi, 4x4: 4SS 5Ghz: 4.63 dBi, 4x4: 4SS System Capacity & Performance*2 ________________________________________ SPI firewall throughput LAN to WAN (Mbps)*3 2,000 Throughput with Application management on (Mbps) 2,000 Throughput with Threat management on (Mbps) 2,000 VPN Throughput (Mbps)*4 300 Max. TCP concurrent sessions*5 20,000 Max. gateway-to-gateway IPsec VPN tunnels 3 Max. remote VPN tunnels 5 VLAN interface 4 Security Features ________________________________________ Ransomware / malware prevention Yes Intrusion blocker Yes Dark Web Blocker Yes Stop mail fraud & phishing Yes Block Ads Yes Block VPN proxy Yes Firewall Yes Country Restriction (Geo IP blocking) Yes Exception list Yes Custom allowed / blocked domain Yes Traffic Management (applications & clients) Yes Security event analytics Nebula Threat Report Real-time threat intelligence*6 Yes Web Filtering (Content Filter)*6 Yes VPN Features ________________________________________ Site2site VPN IPSec Remote access VPN Yes Networking Features ________________________________________ WAN Type DHCP/Static IP/PPPoE Reserve IP (static DHCP) Yes Block clients Yes NAT - Virtual server Yes DHCP server and DHCP relay Yes Dynamic DNS (DDNS) Yes Static route Yes Guest Network Yes VLAN Segmentation Yes Management ________________________________________ Onboarding WAN setting method Yes Site-wide SSID management Yes Multi-site management Yes Client report Yes Remote support and diagnostics Yes Keep device settings in the Nebula Yes Live tools Yes Event Log Yes Nebula Pro Pack - Advance feature set*6 Yes Power Requirements ________________________________________ Power input 12 V DC, 3.0 A Max. power consumption (Watt Max.) 31W Physical Specifications ________________________________________ Item Dimensions (WxDxH)(mm/in.) 161.7 x 65 x 229 mm (6.37” x 2.56” x 9.02”) Weight (g/lb.) 707/1.56 Environmental Specifications ________________________________________ Operating Temperature 0°C to 40°C (32°F to 104°F) Humidity 5% to 95% (Non-condensing) Storage Temperature -30°C to 70°C (-22°F to 158°F) Humidity 5% to 95% (Non-condensing) Certifications ________________________________________ CE Yes FCC Yes BSMI Yes.
