MSI MB Sc LGA1700 PRO B760M-P DDR4, Intel B760, 4xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX
Kód: 2648472Skladem100ks
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:Intel B760; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:1; PCI Express x1:2; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:1; DVI:0; DisplayPort Type-C:0; USB 2:8; USB 3:3.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
2648472
EAN:
4711377030991
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR4
Socket (patice):
Socket 1700
Formát základní desky:
micro ATX
Chipset:
Intel B760
PCI Express x16:
1
Podpora RAID:
1, 5, 10
COM port:
Ano
Pro procesory:
Intel
Počet paměťových slotů:
4
3.5mm Jack:
Ano
LAN:
1Gbit/s
DisplayPort:
1
Bezdrátové připojení:
bez
Led Header:
Ano
TPM:
Ano
PCI Express x1:
2
USB 2:
8
USB 3:
3
USB C:
1
M.2 slot:
2
SATA 3:
4
VGA:
1
HDMI:
1
Popis MSI MB Sc LGA1700 PRO B760M-P DDR4, Intel B760, 4xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX

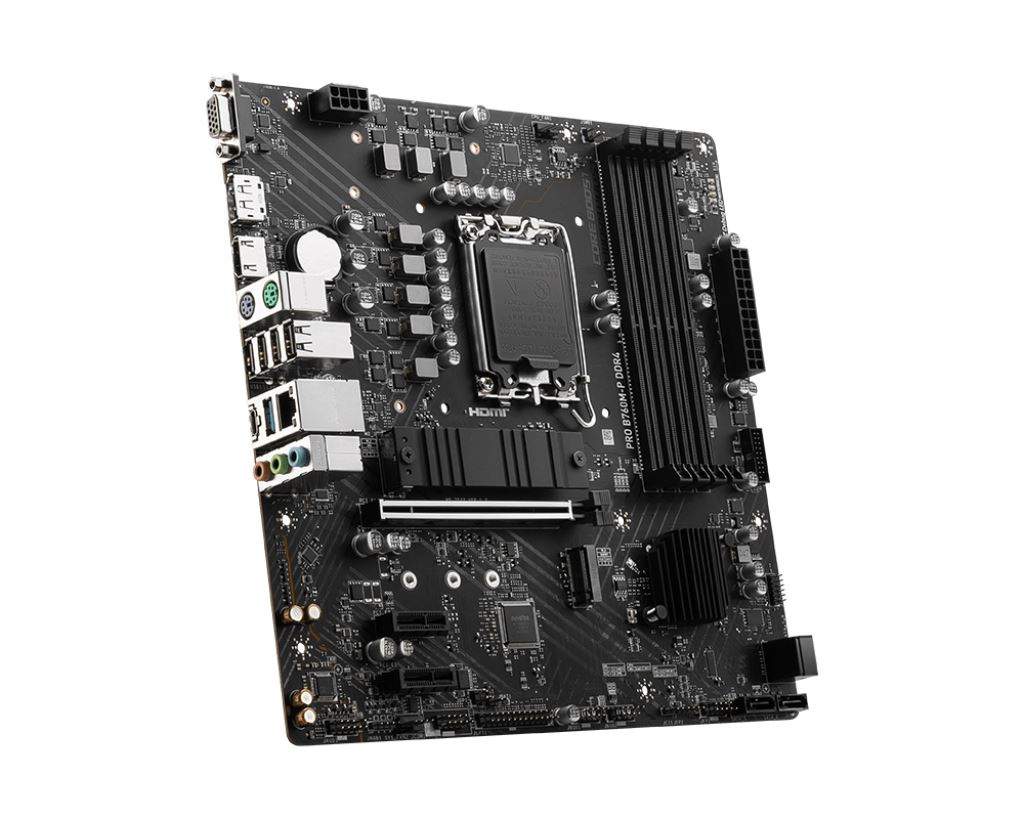

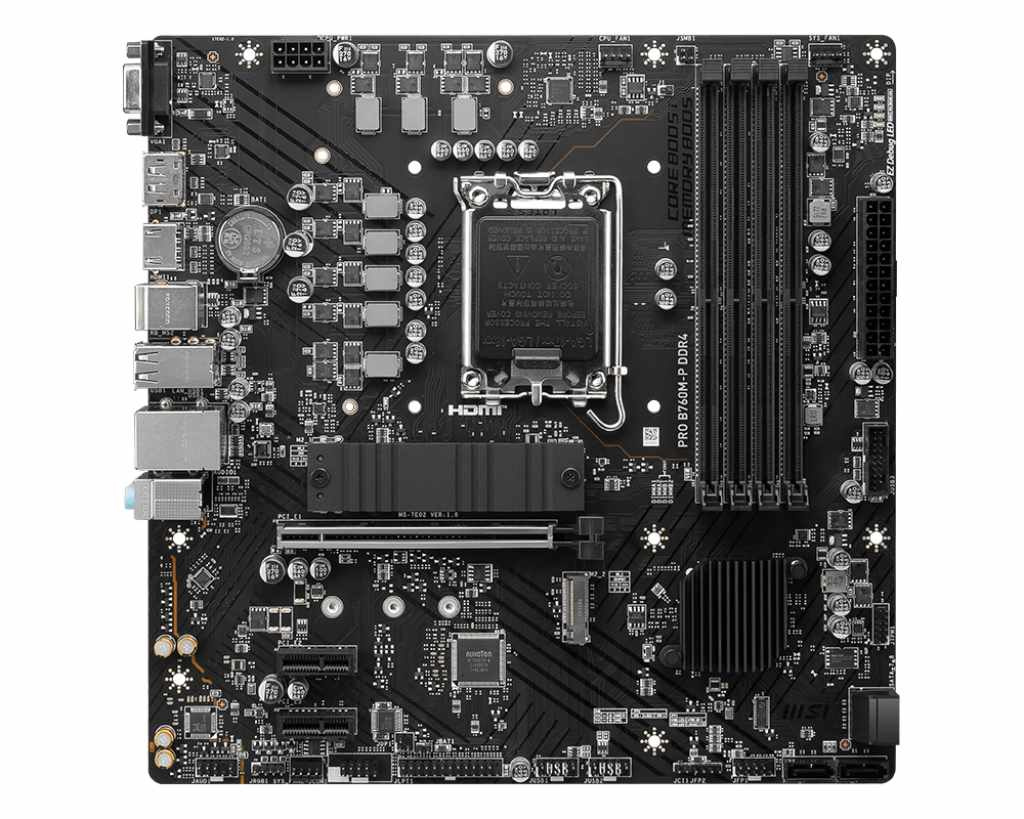

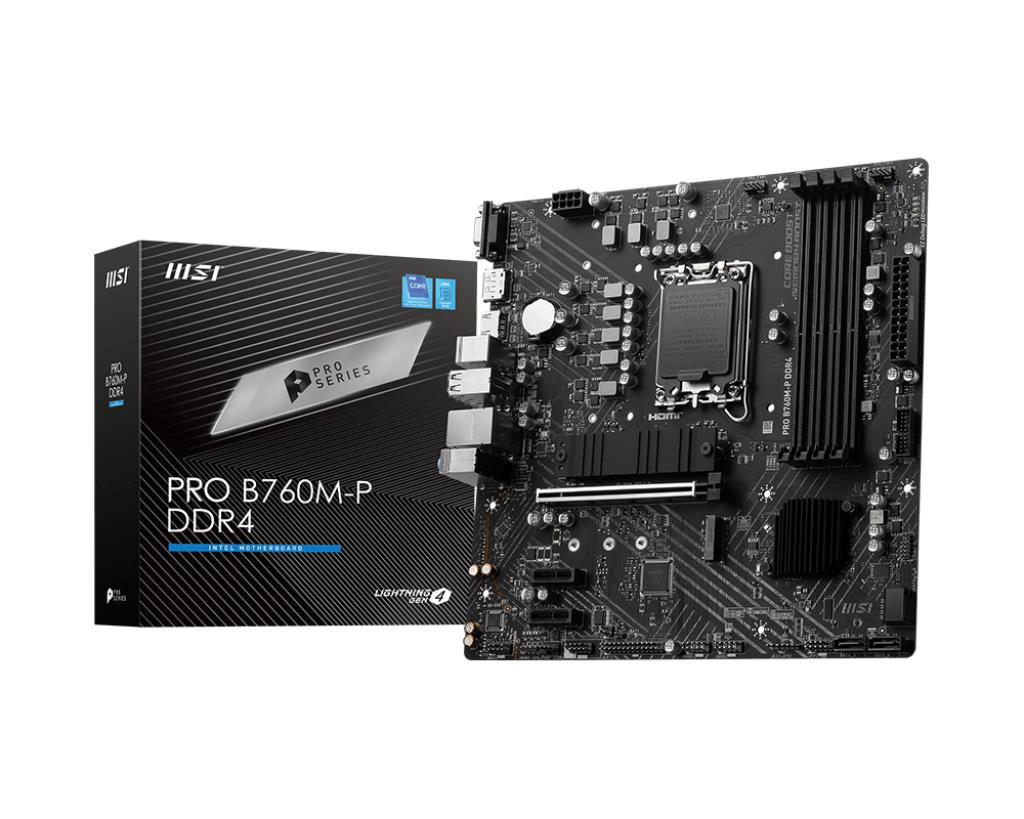

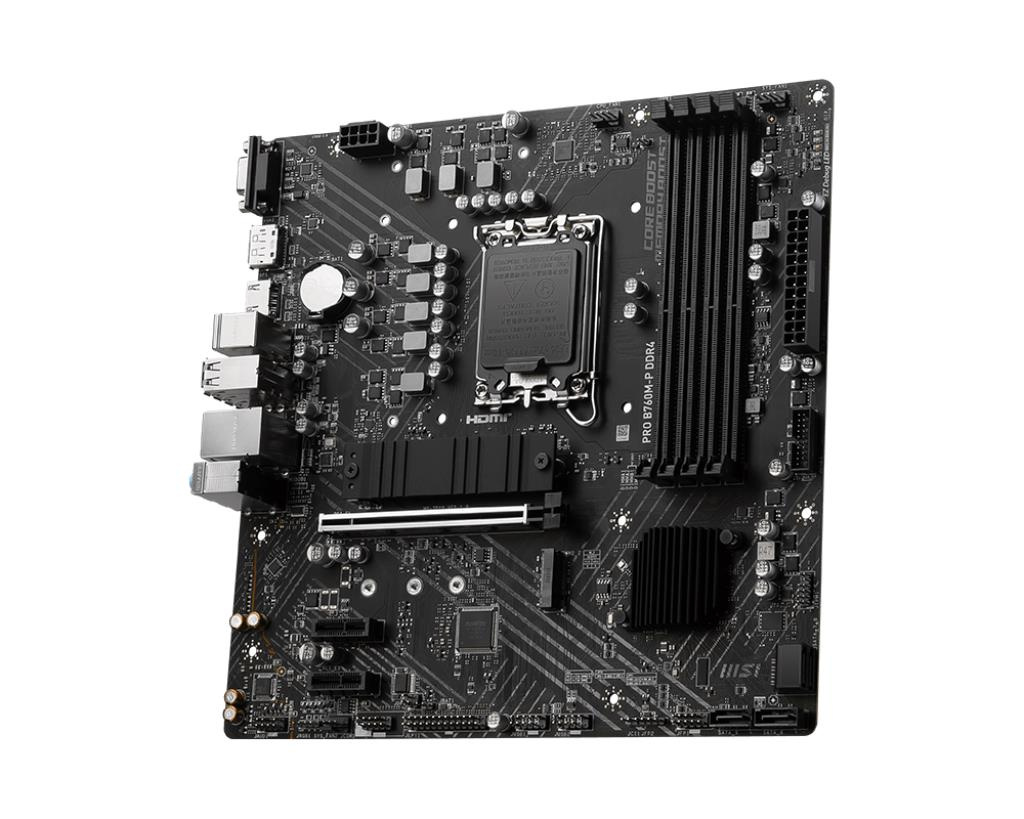

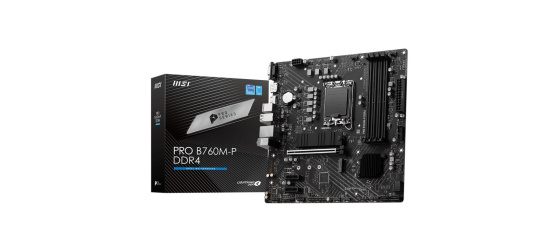

MSI PRO B760M-P DDR4
- Supports Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Chipset
INTEL B760
Memory
4x DDR4, Maximum Memory Capacity 128GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Graphics
1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Ethernet
Realtek® RTL8111H Gigabit LAN
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type C (Rear)
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio

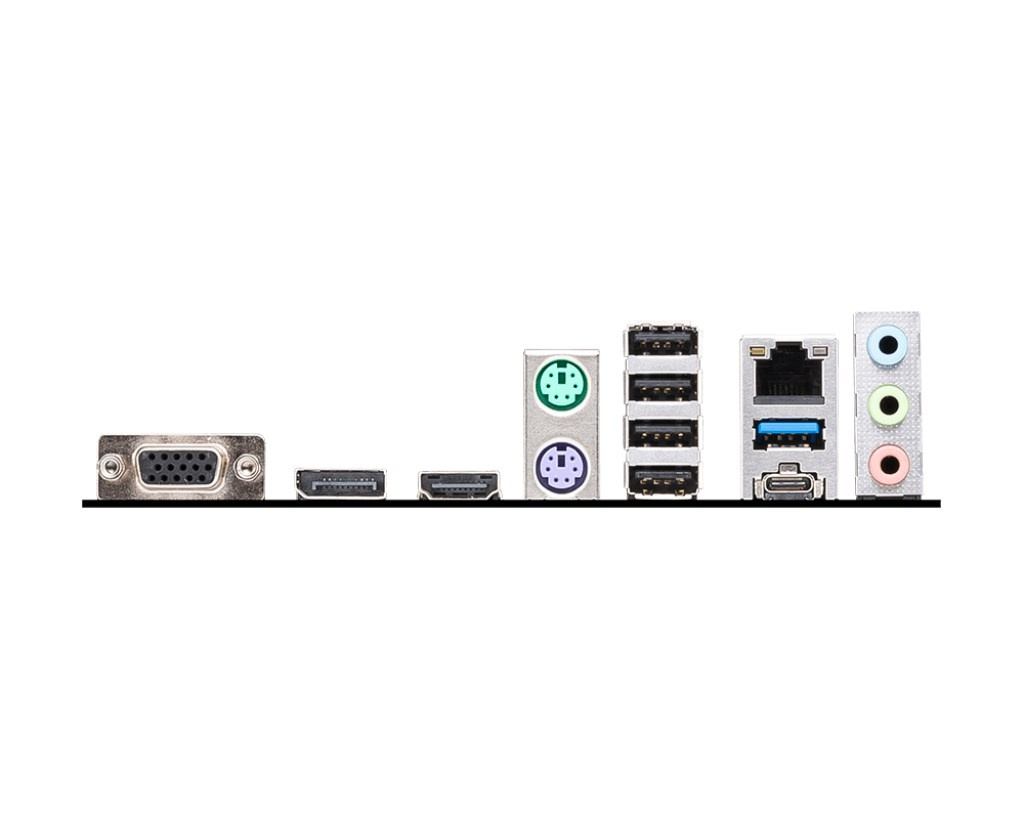

Back Panel I/O Ports
1x VGA
1x DisplayPort
1x HDMI™
2x Keyboard / Mouse
4x USB 2.0
1x LAN port
3x Audio Connectors
1x USB 3.2 Gen 1 5Gbps (Type-A)
1x USB 3.2 Gen 2 10Gbps (Type-C)
Internal I/O Ports
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
Operating System
Support for Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
mATX
243.84 x 243.84 mm
Micro-Star International Co., Ltd., No. 69, Lide Street, Zhonghe District, New Taipei City, 235, Taiwan,
