MSI MB Sc AM5 X870E GAMING PLUS WIFI, AMD X870E, 4xDDR5, 1xHDMI, 1xUSB4, WI-FI
Kód: 2648721Skladem29ks
Termín a způsob doručení
Formát základní desky:ATX; Chipset:AMD X870; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:3; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:3; PCI Express x1:1; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:0; HDMI:1; DisplayPort Type-C:1.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
2648721
EAN:
4711377347594
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket AM5 (LGA 1718)
Formát základní desky:
ATX
Chipset:
AMD X870
PCI Express x16:
3
Podpora RAID:
1, 10, 5
Pro procesory:
AMD
Počet paměťových slotů:
4
3.5mm Jack:
Ano
LAN:
2.5Gbit/s
Bezdrátové připojení:
WiFi + Bluetooth
Led Header:
Ano
TPM:
Ano
PCI Express x1:
1
USB 2:
10
USB 3:
8
USB C:
3
M.2 slot:
3
SATA 3:
4
HDMI:
1
DisplayPort Type-C:
1
Popis MSI MB Sc AM5 X870E GAMING PLUS WIFI, AMD X870E, 4xDDR5, 1xHDMI, 1xUSB4, WI-FI

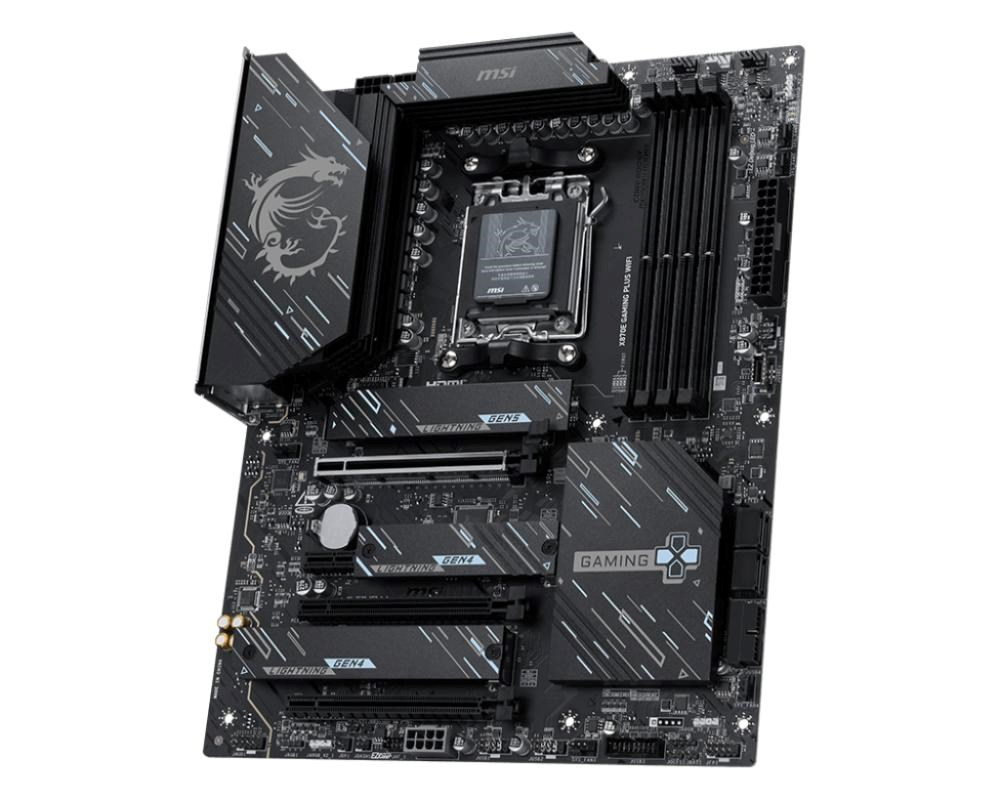

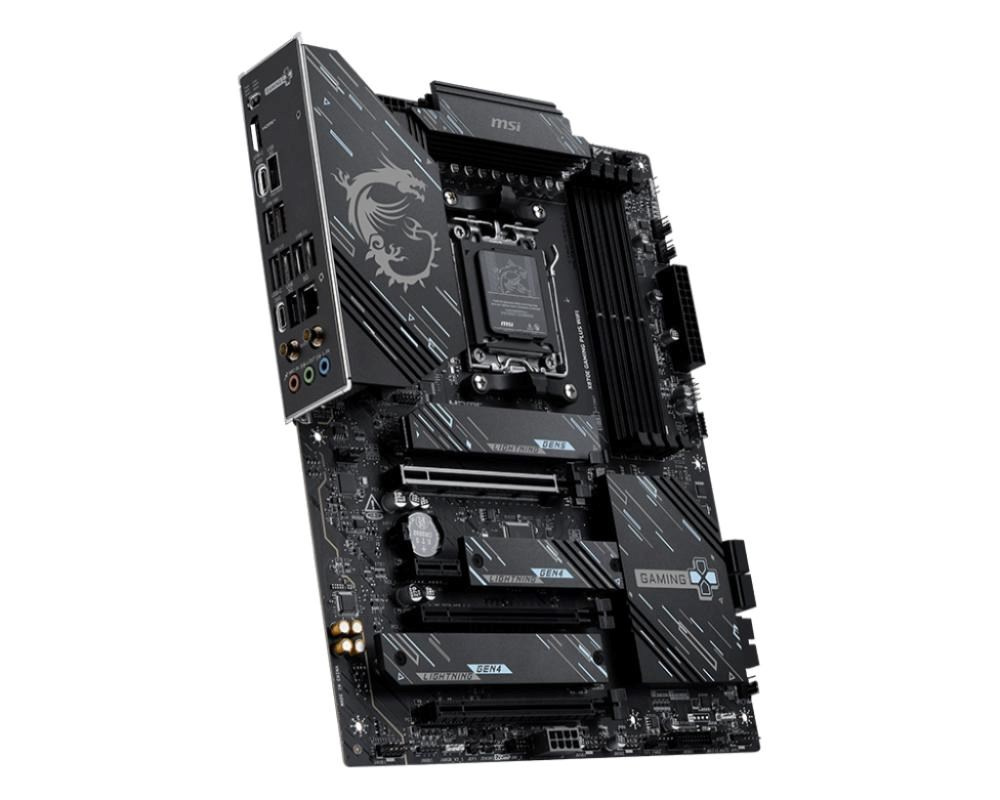

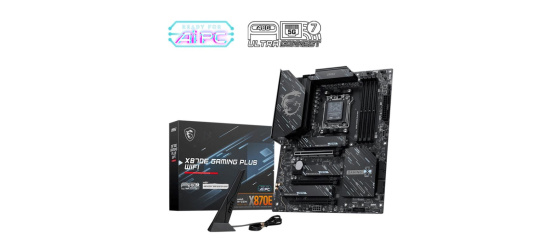

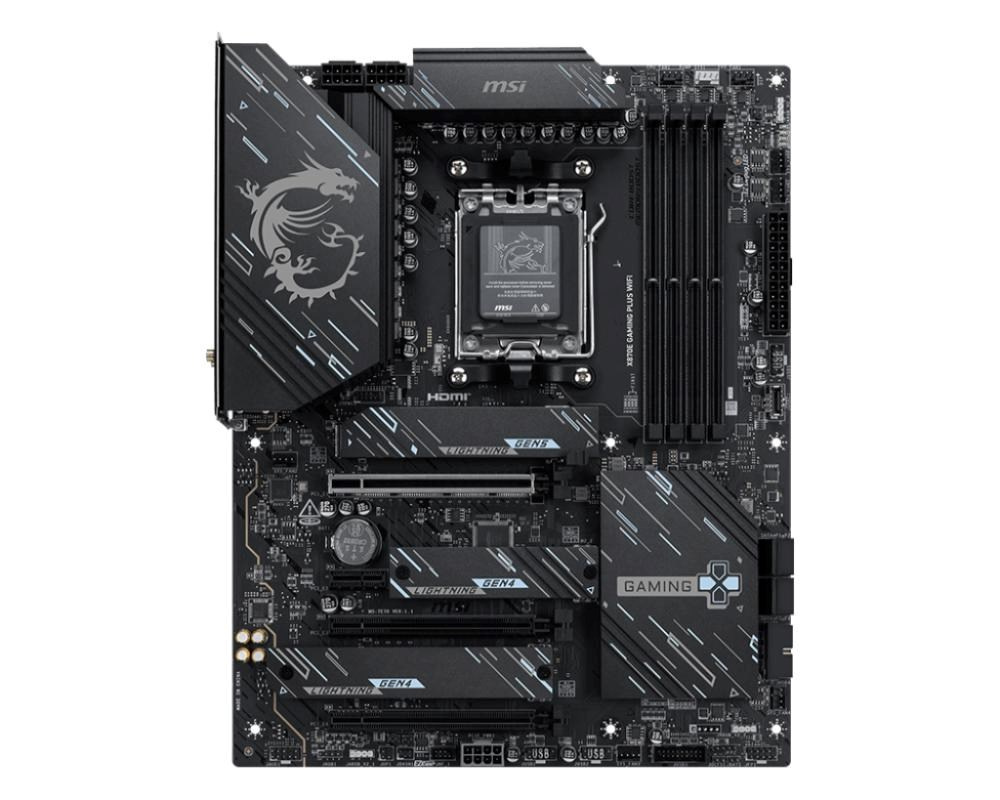

MSI X870E GAMING PLUS WIFI
X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen 9000 series processors.
Chipset
AMD X870E
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio
Realtek® ALC897
7.1-Channel High Definition Audio
Storage
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
4x SATA 6G
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.
• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
USB
4x USB 2.0 (Rear)
6x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)
LAN
Realtek® 8126VB 5G LAN
Internal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
6x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

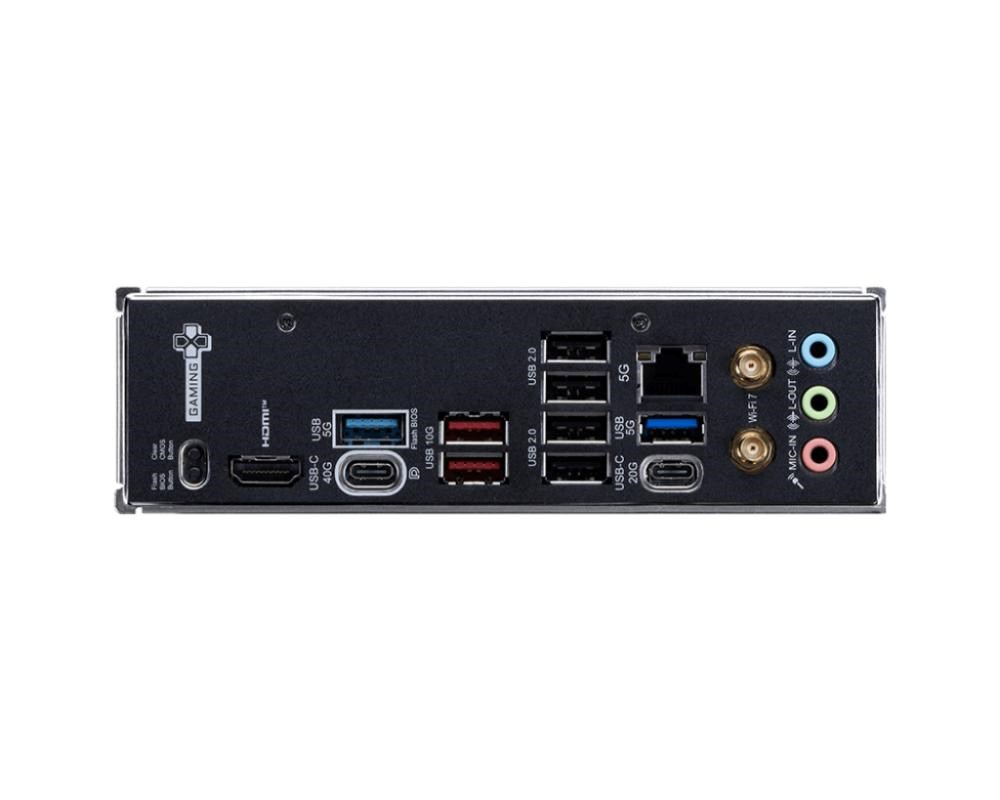

BACK PANEL PORTS
Clear CMOS Button
2x USB 5Gbps Type-A
2x USB 10Gbps Type-A
4x USB 2.0
1x 5G LAN
2x Wi-Fi / Bluetooth
3x Audio connectors
Flash BIOS Button
1x HDMI
1x USB 40Gbps Type-C
1x USB 20Gbps Type-C
OPERATING SYSTEM
Support for Windows® 11 64-bit
FORM FACTOR
ATX
243.84 x 304.8 mm
Micro-Star International Co., Ltd., No. 69, Lide Street, Zhonghe District, New Taipei City, 235, Taiwan,
