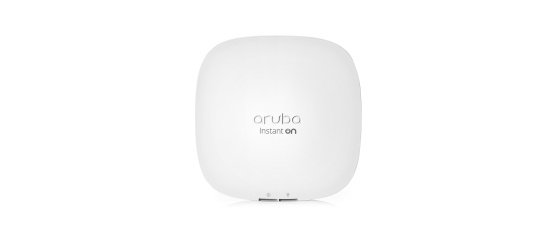

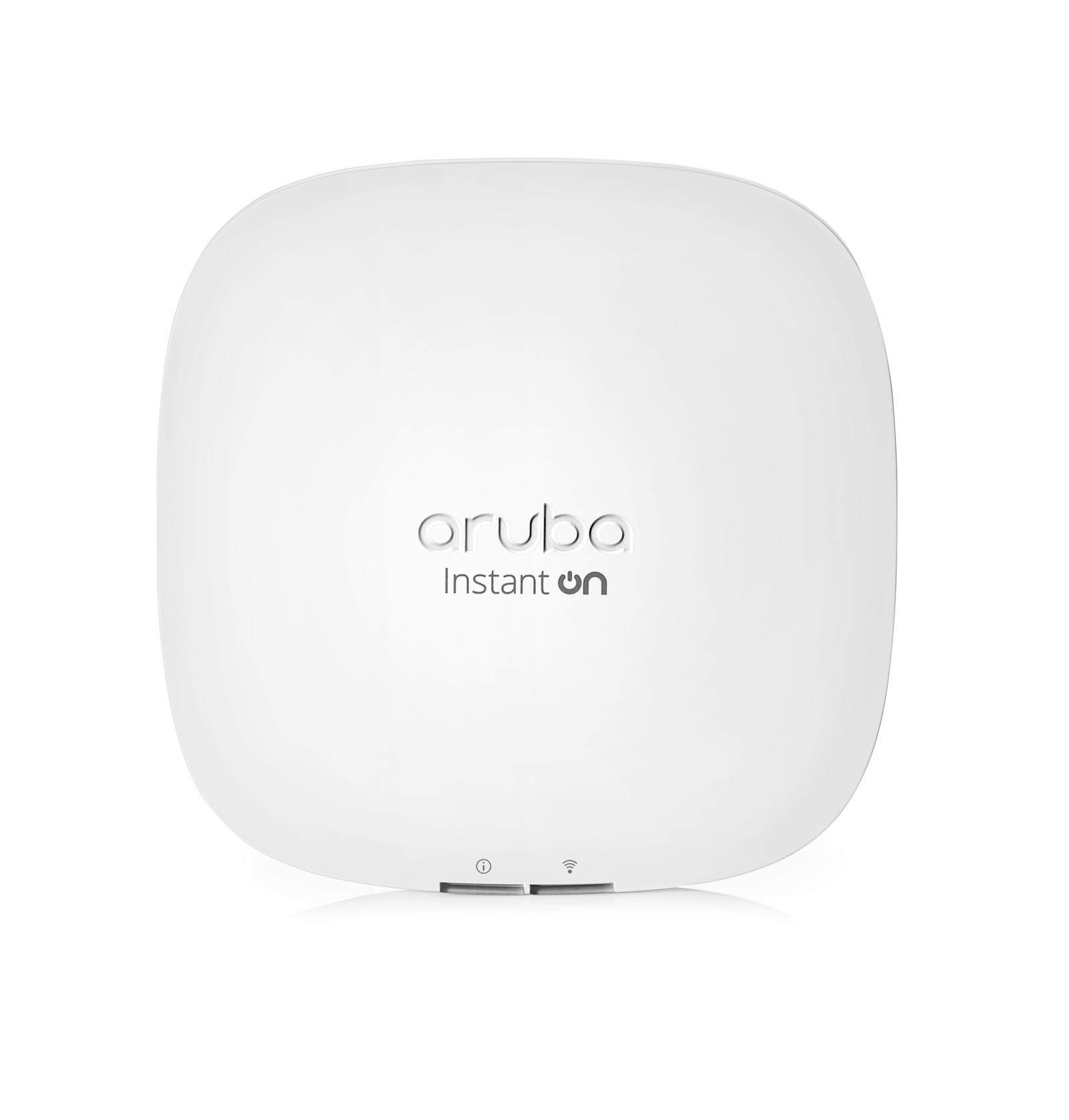

HPE Networking Instant On Access Point Bundle with PSU Dual Radio Tri Band 2x2 Wi-Fi 6E (EU) AP32
Product Number: S1T28A
What's New
Wi-Fi CERTIFIED 6E™ support for up to 75 user devices.
2.5 Gigabit Ethernet uplink port to reduce application bottlenecks.
6 GHz band dedicated to Wi-Fi 6E-enabled devices with up to 2.4 Gbps wireless throughput.
Minimal, modern design to blend into any environment.
Overview The HPE Networking Instant On AP32 is a Wi-Fi CERTIFIED 6E™ wireless access point for small and medium businesses. It supports the 6 GHz band reserved for Wi-Fi 6E devices, offering higher capacity and performance. The AP32 includes a 2.5 GbE uplink port and PoE for efficient connectivity and power.
With a 2x2 antenna array supporting 2 spatial streams, it delivers up to 2.8 Gbps of wireless throughput and supports up to 75 client devices. Administrators can select between 5 GHz/6 GHz for high-speed access or 2.4 GHz/6 GHz for extended range, using the HPE Networking Instant On mobile app.
Quiet mode can disable LED lights for distraction-free operation. The device is cloud-connected for remote management via mobile app or web portal.
Key Features
Wi-Fi 6E (802.11ax) with OFDMA for improved capacity, reduced latency.
Target Wake Time (TWT) to optimize battery life in IoT devices.
2x2 MIMO allows simultaneous servicing of multiple Wi-Fi 5/6 clients.
Top-tier security with WPA2/WPA3 and Enhanced Open.
Application insight and traffic blocking available in the management app.
Flexible Band Configurations
6 GHz and 5 GHz: for maximum throughput.
6 GHz and 2.4 GHz: for new devices and legacy IoT.
5 GHz and 2.4 GHz: for non-6E networks.

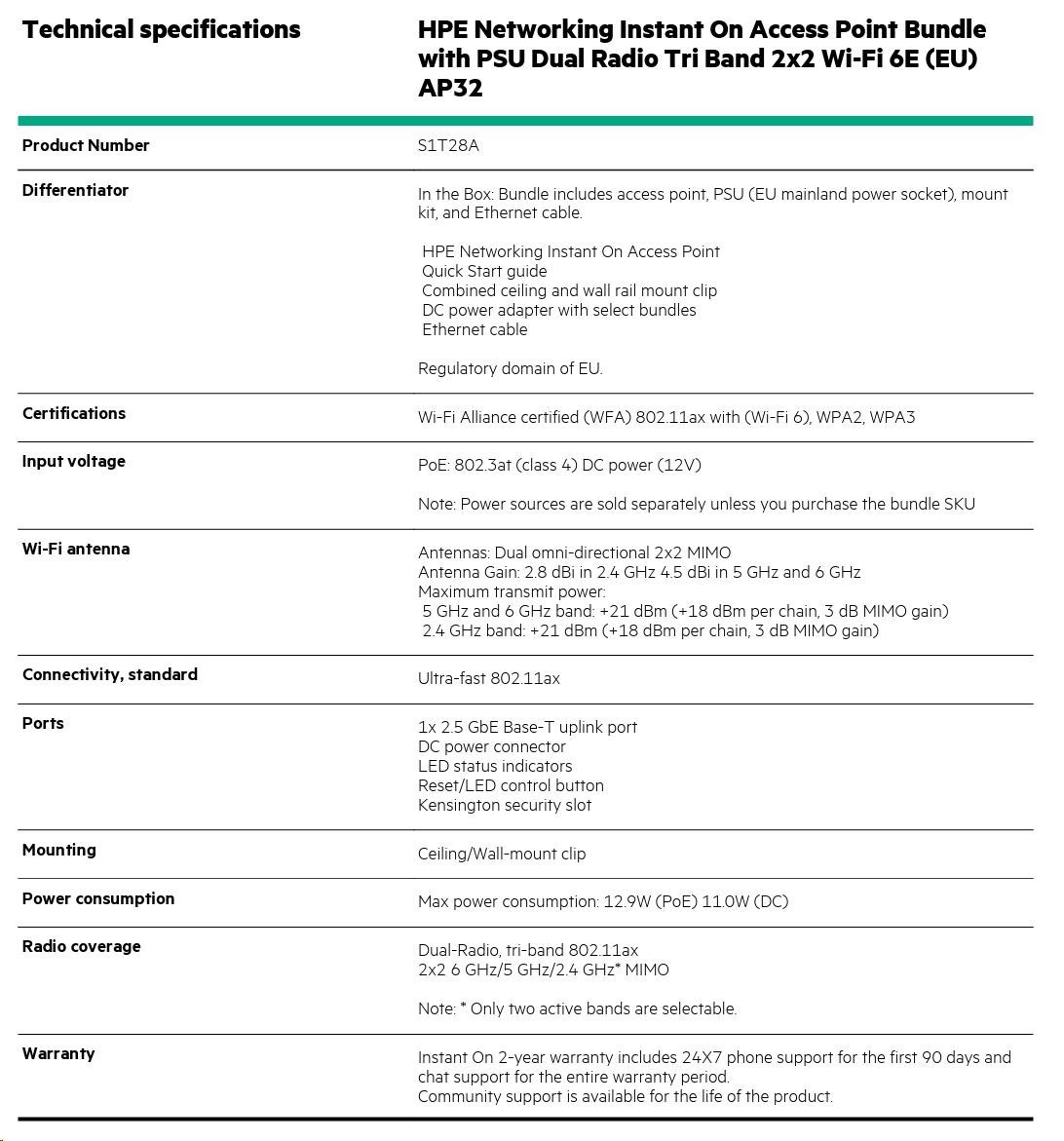

Technical Specifications
Product Number: S1T28A
Regulatory Domain: EU
In the Box:
HPE Networking Instant On Access Point
Quick Start Guide
Ceiling/Wall mount clip
DC Power Adapter (EU mainland compatible)
Ethernet cable
Certifications:
Wi-Fi Alliance Certified (WFA)
802.11ax (Wi-Fi 6)
WPA2, WPA3 security
Input Voltage:
PoE: 802.3at (Class 4)
DC Power: 12V
Note: Power sources sold separately unless purchasing the bundle SKU.
Wi-Fi Antenna:
Dual omni-directional 2x2 MIMO
Antenna Gain:
2.8 dBi (2.4 GHz)
4.5 dBi (5 GHz & 6 GHz)
Max Transmit Power:
+21 dBm @ 2.4 GHz / 5 GHz / 6 GHz (+18 dBm per chain, 3 dB MIMO gain)

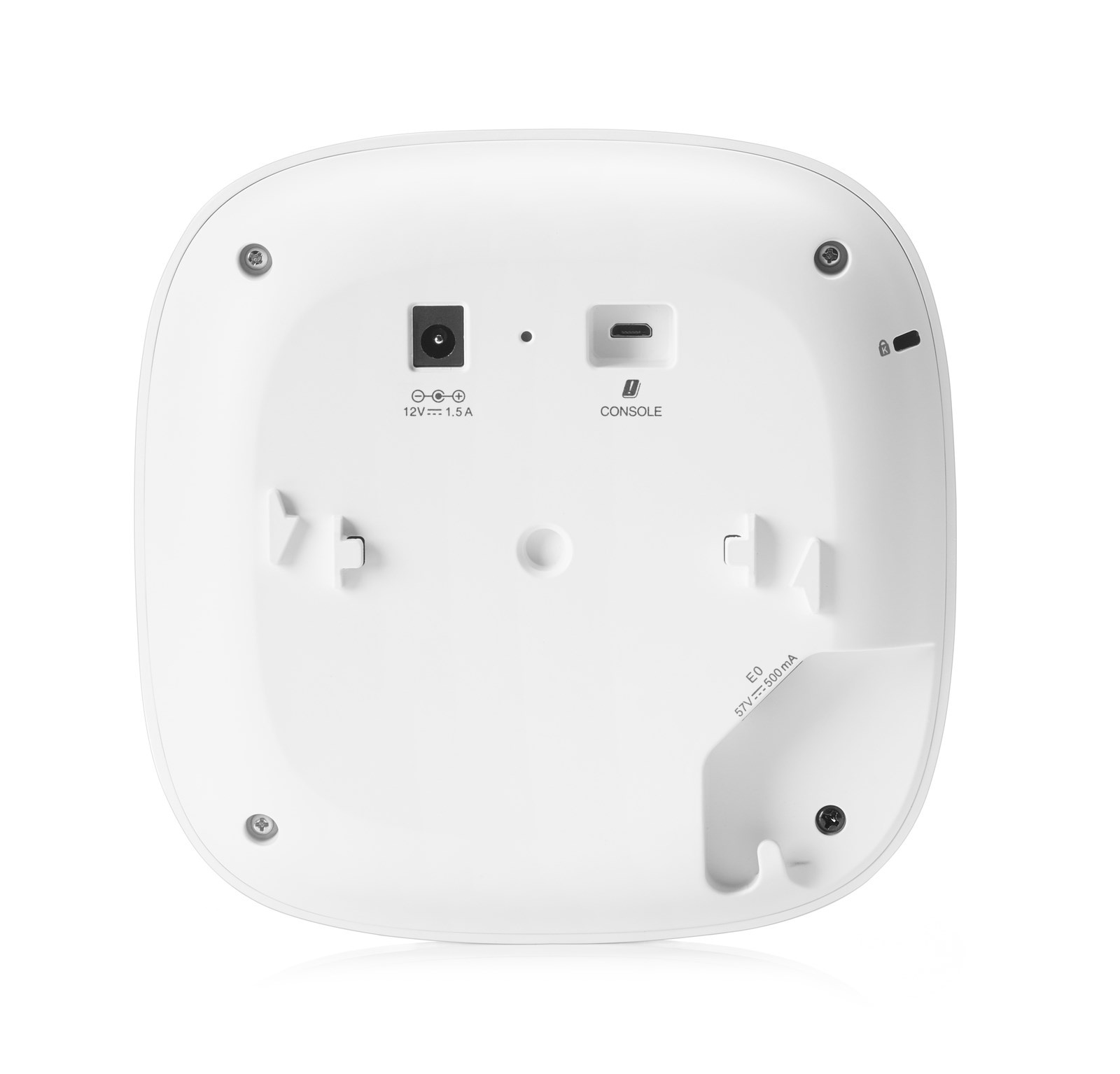

Connectivity & Ports:
1x 2.5 GbE Base-T uplink
DC power connector
LED status indicators
Reset/LED control button
Kensington security slot
Mounting: Ceiling or wall mount (clip included)
Power Consumption:
Max 12.9W (PoE)
Max 11.0W (DC)
Radio Coverage:
Dual-radio, tri-band 802.11ax 2x2 MIMO (6 GHz / 5 GHz / 2.4 GHz)
Note: Only two active bands are selectable.
Warranty & Support:
2-year warranty
24/7 phone support (first 90 days)
Chat support for the entire warranty period
Community support for the lifetime of the product
