GIGABYTE MB Sc sTR5 TRX50 AI TOP, AMD TRX50, 8xDDR5, WI-FI, E-ATX
Kód: 524991Není skladem
Termín a způsob doručení
Formát základní desky:E-ATX; Chipset:AMD TRX50; Socket (patice):Socket TRX5; Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:8; M.2 slot:4; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:4; PCI Express x1:0; PCI:0; LAN:2.5Gbit/s, 10Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:0; HDMI:0; VGA:0; DVI:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
524991
EAN:
4719331868529
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket TRX5
Formát základní desky:
E-ATX
Chipset:
AMD TRX50
PCI Express x16:
4
Podpora RAID:
1, 10
COM port:
Ne
LPT port:
Ne
Pro procesory:
AMD
Počet paměťových slotů:
8
3.5mm Jack:
Ano
LAN:
2.5Gbit/s, 10Gbit/s
Bezdrátové připojení:
WiFi + Bluetooth
Led Header:
Ano
TPM:
Ano
USB 2:
4
USB 3:
10
USB C:
3
M.2 slot:
4
SATA 3:
4
Popis GIGABYTE MB Sc sTR5 TRX50 AI TOP, AMD TRX50, 8xDDR5, WI-FI, E-ATX

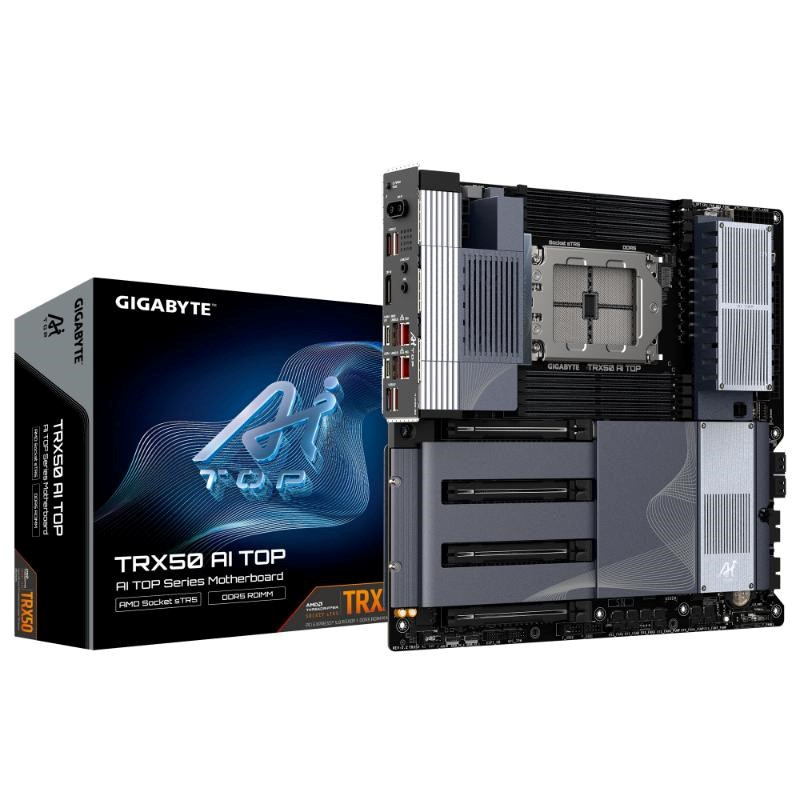

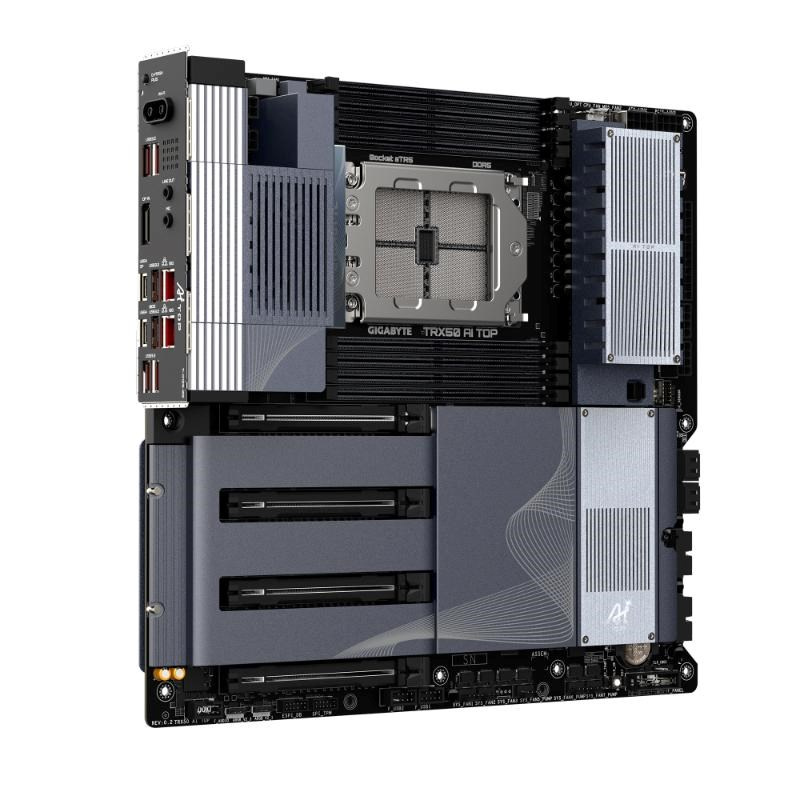

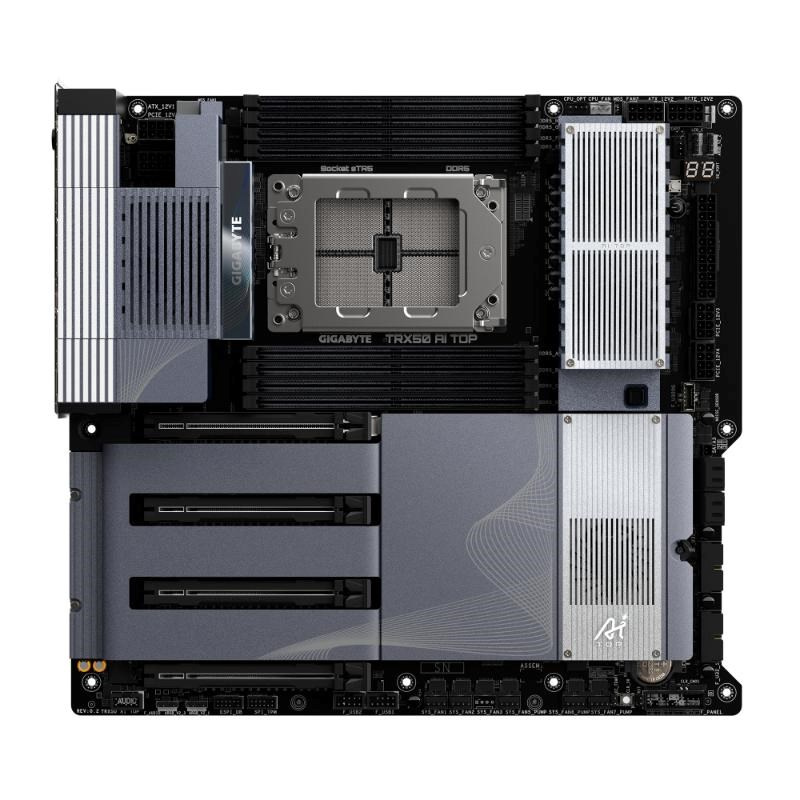

Gigabyte TRX50 AI TOP
- Training your own AI on your desk
- Socket sTR5: Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors?
- Breakthrough Performance:16+8+4 Phases Digital VRM Solution
- 8 Channel DDR5:8*SMD ECC R-DIMMs with Maxmium 2TB capacity
- Reinforced Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard
- Ultimate Scalibility: 4*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0 x4 M.2 slots
- Next-gen Connectivity: Dual USB4® Type-C ports
- Blazing Fast Networks: Dual 10GbE LAN, Wi-Fi 7 with Ultra-high gain directional antenna & WIFI EZ-Plug
- PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click:M.2 heatsinks with screwless design
- EZ-Latch Plus:M.2 slots with quick release design
- Hi-Fi Audio with DTS:X® Ultra:ALC4080+ALC897 CODEC
- UC BIOS:User-Centred intuitive UX with Quick Access function
CPU
AMD Socket sTR5, support for:
AMD Ryzen™ Threadripper™ PRO 7000 processors/
AMD Ryzen™ Threadripper™ 7000 Series processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD TRX50
Memory
Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS)
8 x DDR5 DIMM sockets supporting up to 2 TB of system memory
- AMD Ryzen™ Threadripper™ PRO 7000 Processors support 8-Channel memory architecture
- AMD Ryzen™ Threadripper™ 7000 Processors support Quad Channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Audio
Realtek® ALC4080 CODEC (rear panel audio)
- Support for DTS:X® Ultra
- High Definition Audio
- 2-channel
Realtek® ALC897 CODEC (front panel audio)
LAN
2 x Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)
Wireless Communication module
Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU:
- AMD Ryzen™ Threadripper™ PRO 7000 Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 5.0 x16 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.)
1 x PCI Express x16 slot (PCIEX16_4), integrated in the CPU:
- AMD Ryzen™ Threadripper™ PRO 7000 Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 4.0 x16 mode
Storage Interface
3 x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ Threadripper™ PRO 7000 processors support PCIe 5.0 x4/x2 SSD
- AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 4.0 x4/x2 SSD
1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ Threadripper™ PRO 7000 processors support PCIe 5.0 x4/x2 SSD
* The M2D_CPU connector will become unavailable when using the AMD Ryzen™ Threadripper™ 7000 Processors.
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, support for SATA storage devices
USB
CPU:
- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+Intel® USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x PCIe power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Clear CMOS button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper

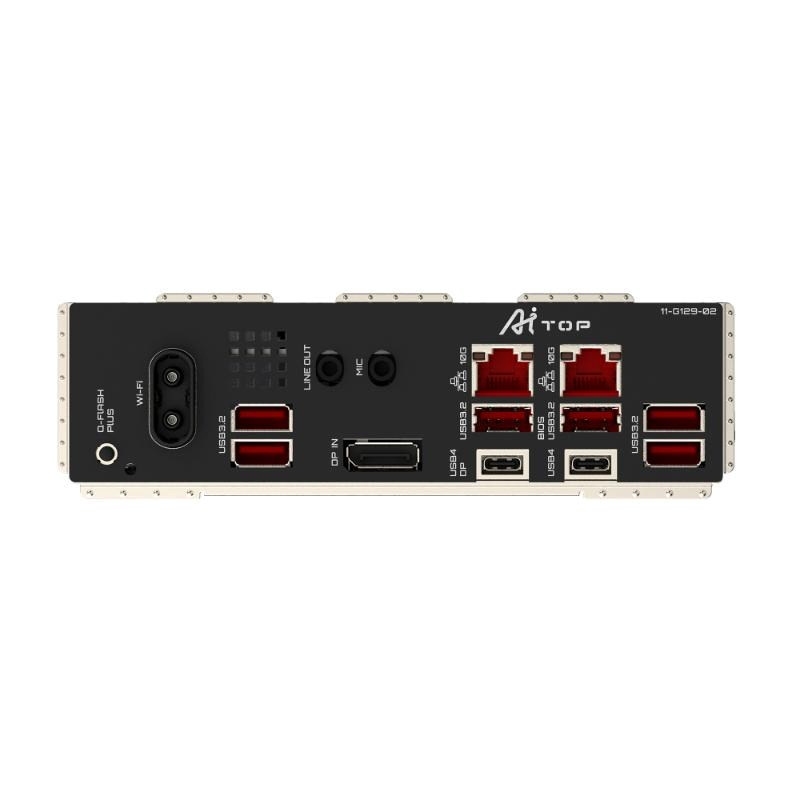

Back Panel Connectors
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort In port
1 x USB4® USB Type-C® port (DisplayPort)
1 x USB4® USB Type-C® port
6 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 port
2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Ubuntu 24.04 LTS
Form Factor
E-ATX Form Factor; 30.5cm x 33.0cm
Gigabyte Technology Co., Ltd., No. 6, Nandian Road, Linkou District, New Taipei City 244, Taiwan, support@gigabyte.com
