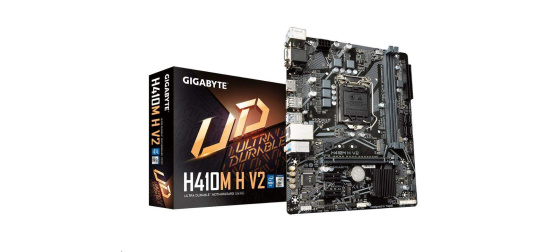

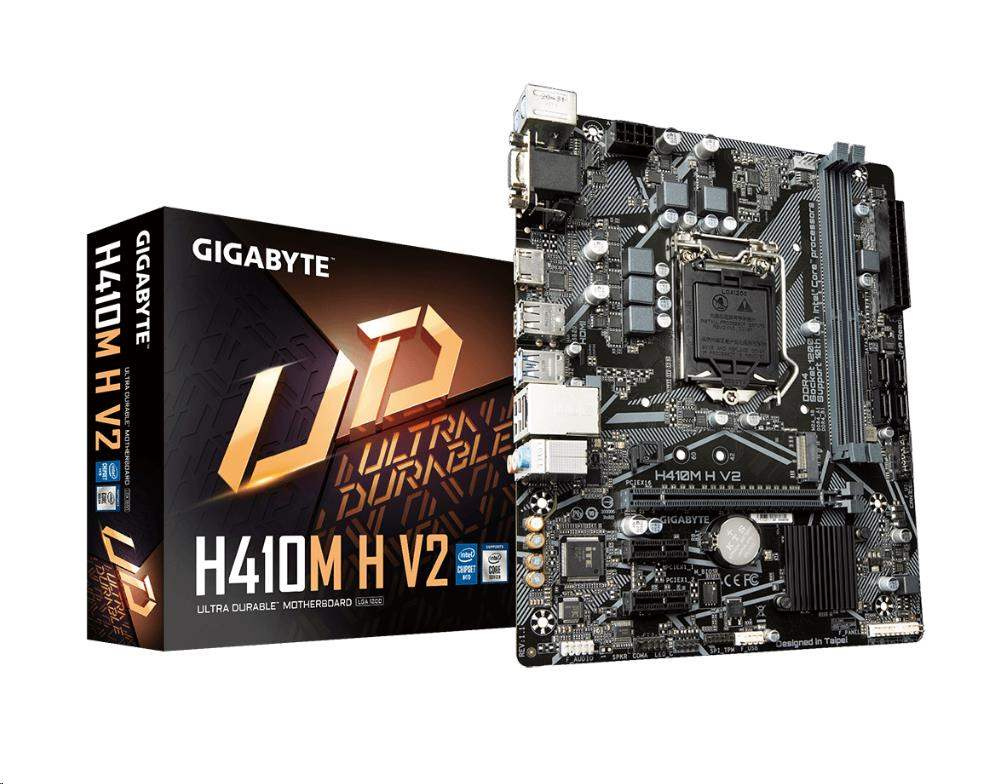

GIGABYTE MB Sc LGA1200 H410M H V2, Intel H470, 2xDDR4, 1xHDMI, 1xVGA, mATX
Kód: 524311Není skladem
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:Intel; Socket (patice):Socket 1200; Technologie paměti RAM:DDR4; Podpora RAID:1, 5, 10; PCI Express x16:1.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
524311
EAN:
4719331815387
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR4
Socket (patice):
Socket 1200
Formát základní desky:
micro ATX
Chipset:
Intel
PCI Express x16:
1
Podpora RAID:
1, 5, 10
Popis GIGABYTE MB Sc LGA1200 H410M H V2, Intel H470, 2xDDR4, 1xHDMI, 1xVGA, mATX

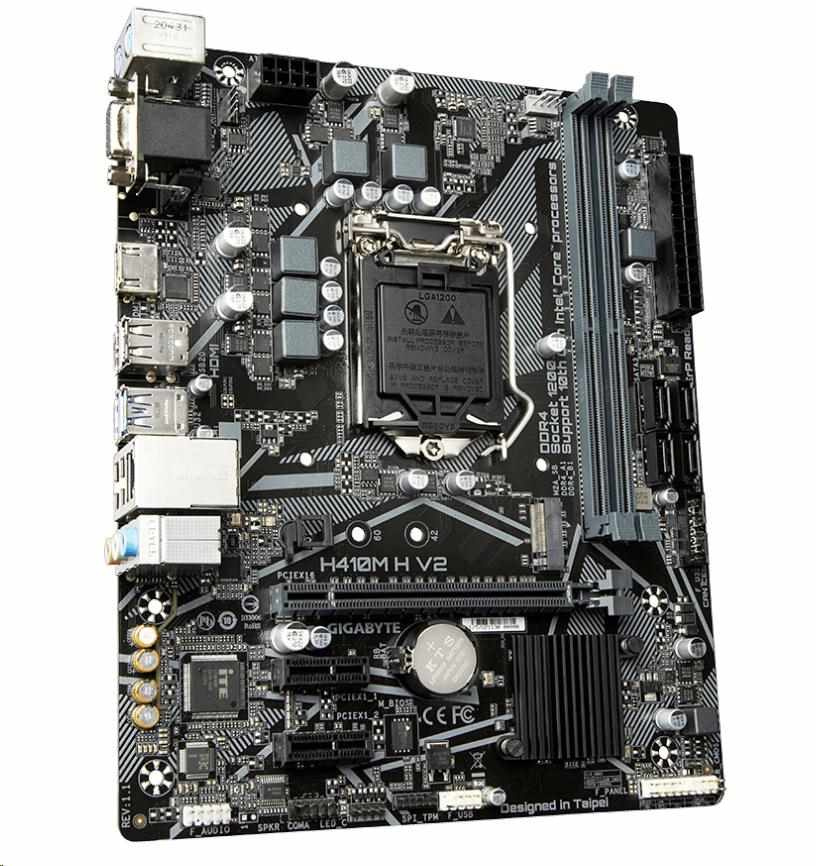

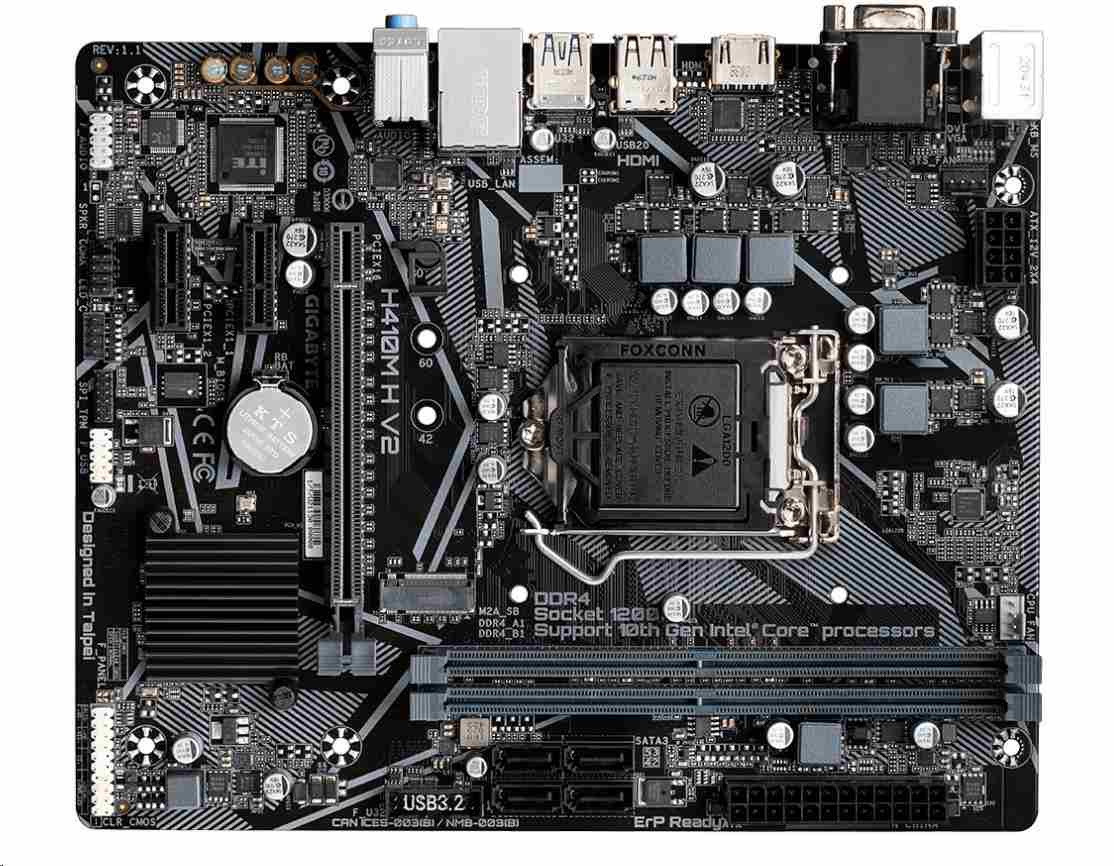

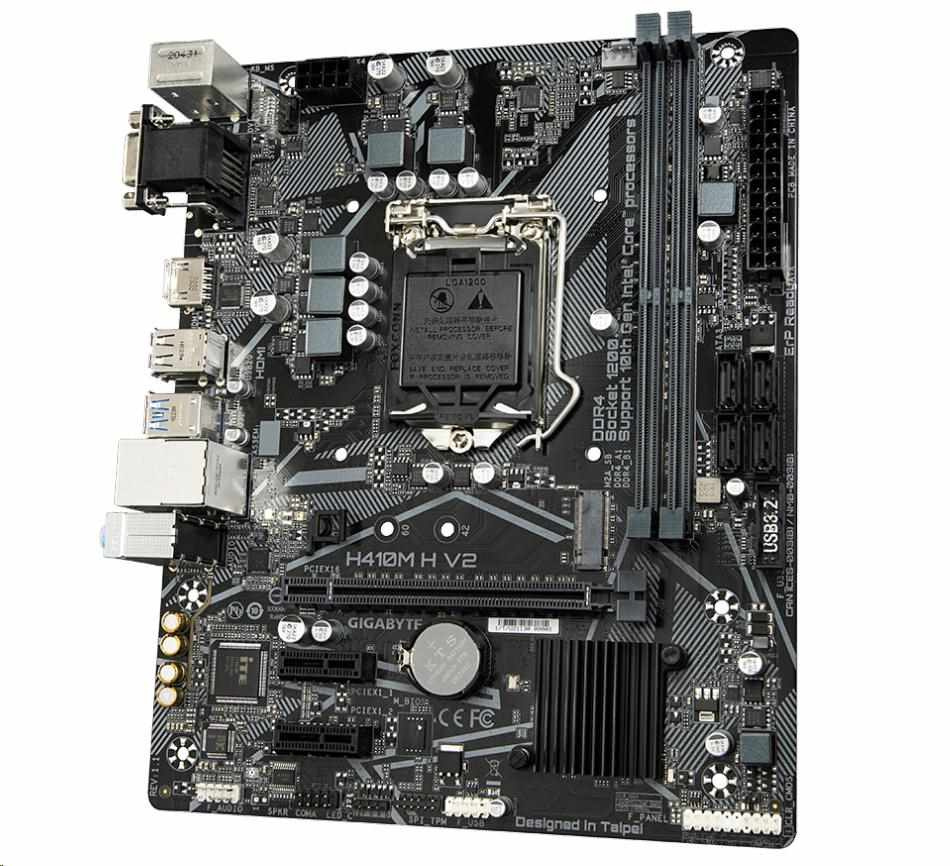

H410M H V2
- Supports 10th Gen Intel®Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 8-Channel HD Audio with High Quality Audio Capacitors
- NVMe PCIe Gen3 x4 2280 M.2 Connector
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
CPU
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
PCB Rev. 2.0
Intel® Q470 Express Chipset
PCB Rev. 1.8, 1.7, 1.6, 1.4, 1.3, 1.2, 1.1, 1.0
Intel® H470 Express Chipset
Memory
PCB Rev. 2.0
Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
PCB Rev. 1.8, 1.7, 1.6, 1.4, 1.3, 1.2, 1.1, 1.0
Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
* The D-Sub port is only available with the 10th Generation processors.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
PCB Rev. 2.0
Gigabit Ethernet Chip (1 Gbps/100 Mbps/10 Mbps)
PCB Rev. 1.8, 1.7, 1.6, 1.4, 1.3, 1.2, 1.1
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
PCB Rev. 1.0
Intel® GbE LAN chip (1 Gbit/100 Mbit)
Wireless Communication module
PCB Rev. 1.3
Realtek® Wi-Fi 6E RTL8852CE
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
PCB Rev. 1.4, 1.2
Intel® Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
PCB Rev. 1.1
Intel® Wi-Fi 6E AX210
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
PCB Rev. 1.0
AMD Wi-Fi 6E RZ608 (MT7921K)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
PCB Rev. 1.7, 1.6, 1.4, 1.3, 1.2, 1.1
Supports up to ASPM L1.2 power management protocols.
Storage Interface
PCB Rev. 2.0
Chipset
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for NVMe SSD storage devices
* Supported with an additional PCIe to M.2 NVMe SSD adapter card.
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
PCB Rev. 1.8
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
* Supported with an additional PCIe to M.2 NVMe SSD adapter card
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
PCB Rev. 1.7, 1.6, 1.4, 1.3, 1.2, 1.1, 1.0
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
PCB Rev. 2.0, 1.7, 1.6, 1.4, 1.3, 1.2, 1.1, 1.0
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
PCB Rev. 1.8
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

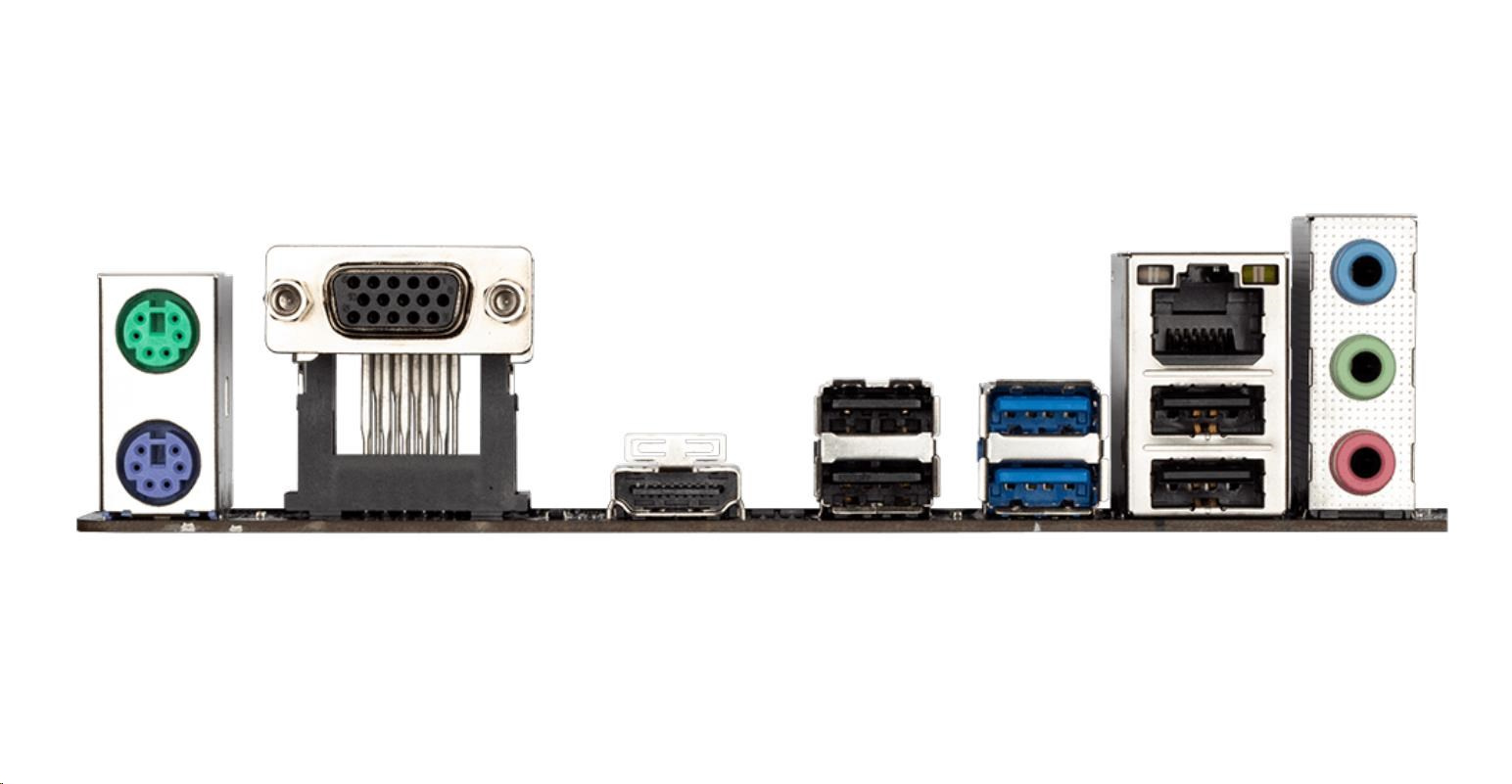

Back Panel Connectors
PCB Rev. 2.0
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
PCB Rev. 1.8, 1.7, 1.6, 1.4, 1.3, 1.2, 1.1, 1.0
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
cFosSpeed
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
Gigabyte Technology Co., Ltd., No. 6, Nandian Road, Linkou District, New Taipei City 244, Taiwan, support@gigabyte.com
