GIGABYTE MB Sc AM4 B550M DS3H, AMD B550M, 4xDDR4, HDMI
Kód: 524056Není skladem
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:AMD B550, AMD; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:1, 10; PCI Express x16:2; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:0; HDMI:1; VGA:0; DVI:1; USB 2:6; USB 3:6; USB C:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
524056
EAN:
4719331809416
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Formát základní desky:
micro ATX
Chipset:
AMD, AMD B550
PCI Express x16:
2
Podpora RAID:
1, 10
COM port:
Ano
LPT port:
Ne
Pro procesory:
AMD
Počet paměťových slotů:
4
3.5mm Jack:
Ano
LAN:
1Gbit/s
Bezdrátové připojení:
WiFi + Bluetooth
Led Header:
Ano
TPM:
Ano
PCI Express x1:
1
USB 2:
6
USB 3:
6
M.2 slot:
2
SATA 3:
4
DVI:
1
HDMI:
1
Popis GIGABYTE MB Sc AM4 B550M DS3H, AMD B550M, 4xDDR4, HDMI

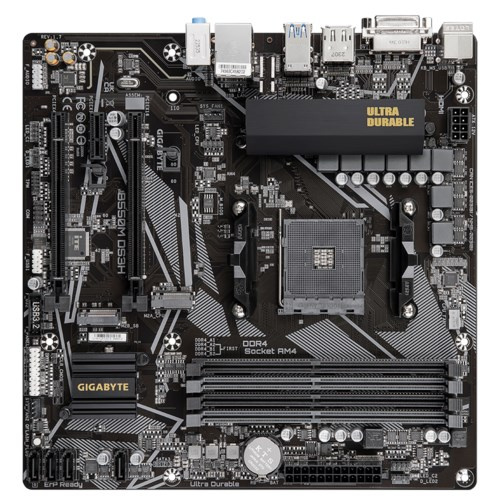

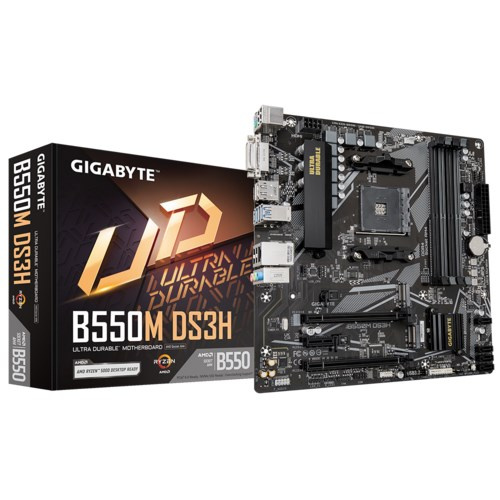

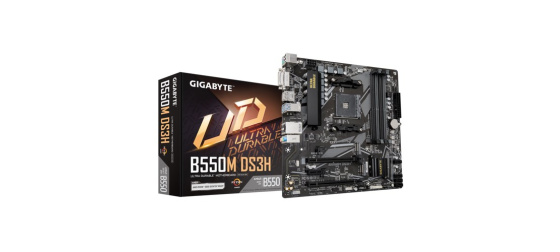

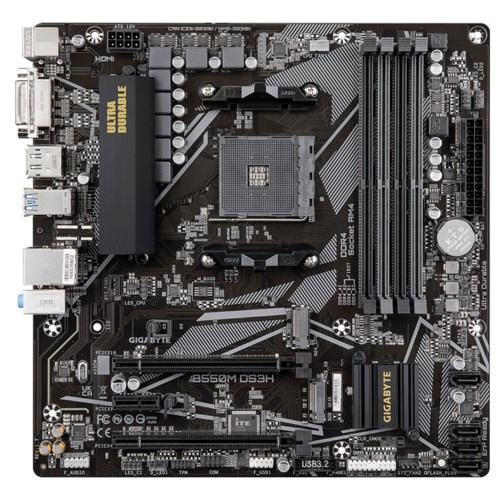

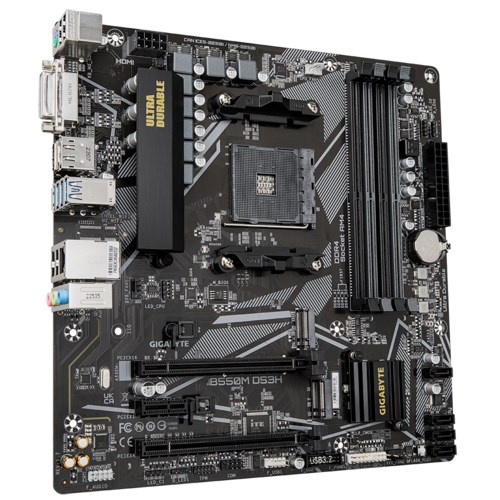

B550M DS3H
AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Realtek GbE LAN, Smart Fan 6 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 6+2 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management
- Rear HDMI, DVI, and DisplayPort Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
This MB has several revisions, you can see the differences in the below
CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Socket AM4
(Please refer "CPU Support List" for more information.)
Chipset
AMD B550
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
PCB Rev. 1.7, 1.5
Integrated Graphics Processor:
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
PCB Rev. 1.4, 1.3, 1.2, 1.1, 1.0
Integrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
PCB Rev. 1.7
Realtek® ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
PCB Rev. 1.5, 1.4, 1.3, 1.2, 1.1, 1.0
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
PCB Rev. 1.7, 1.3, 1.2, 1.1, 1.0
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
PCB Rev. 1.5, 1.4
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode
* Actual support may vary by AMD CPU's specification.
- AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
- Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
Storage Interface
PCB Rev. 1.7, 1.5
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280/22110 SSDs:
- AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
- AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:
- Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset
Support for RAID 0, RAID 1, and RAID 10
PCB Rev. 1.4, 1.3, 1.2, 1.1, 1.0
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
PCB Rev. 1.7
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
PCB Rev. 1.5
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
PCB Rev. 1.4, 1.3, 1.2, 1.1, 1.0
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

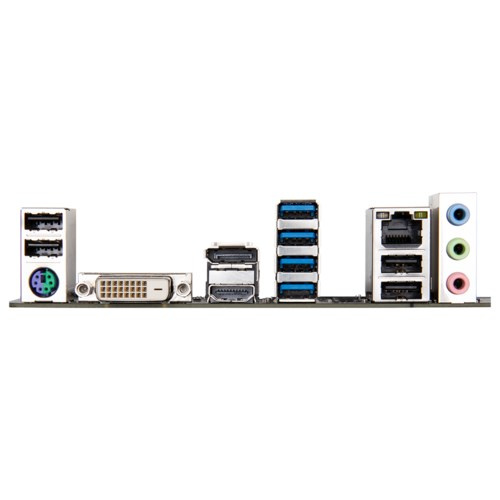

Back Panel Connectors
PCB Rev. 1.7, 1.5
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
PCB Rev. 1.4, 1.3, 1.2, 1.1, 1.0
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Gigabyte Technology Co., Ltd., No. 6, Nandian Road, Linkou District, New Taipei City 244, Taiwan, support@gigabyte.com
