Club3D hub MST (Multi Stream Transport) DisplayPort 1.4 na DisplayPort + HDMI 4K60Hz (M/F)
Kód: 795173Není skladem
Termín a způsob doručení
Druh IO zařízení:MST hub; Provedení:Externí.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
795173
EAN:
8719214471972
Záruka:
24 Měsíc(ů)
Stav:
Druh IO zařízení:
MST hub
Provedení:
Externí

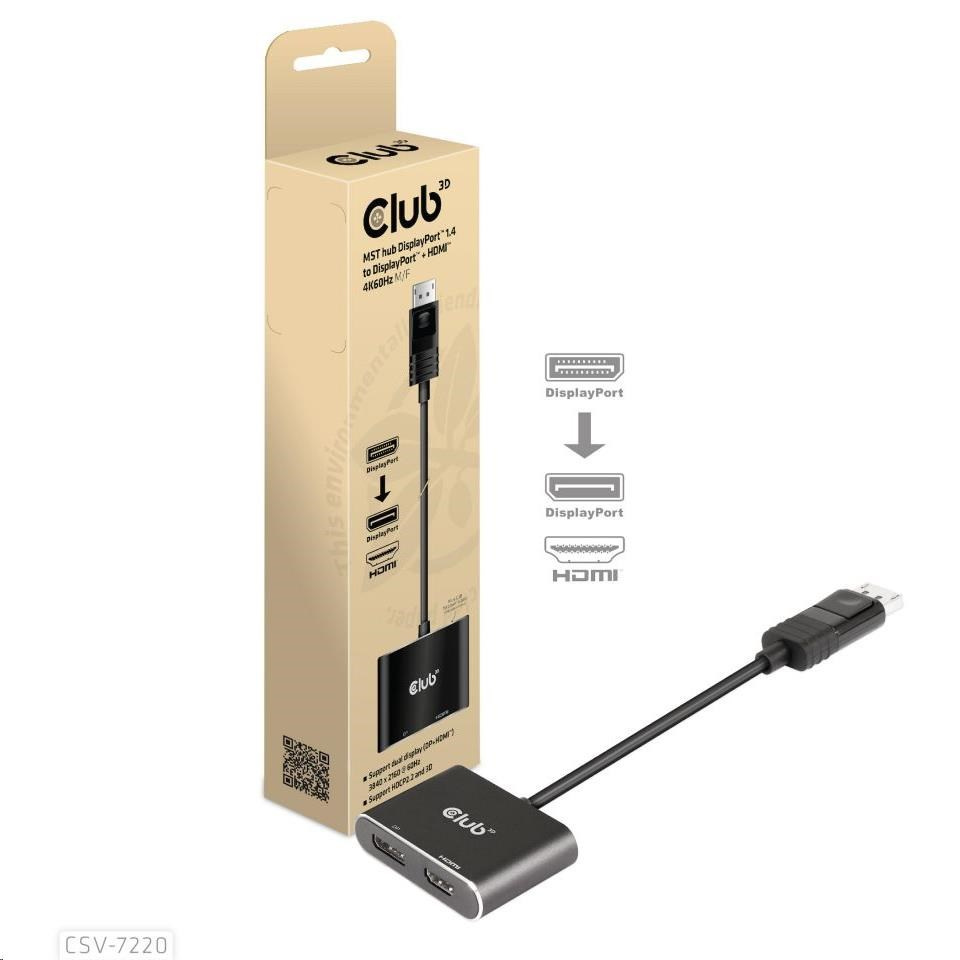

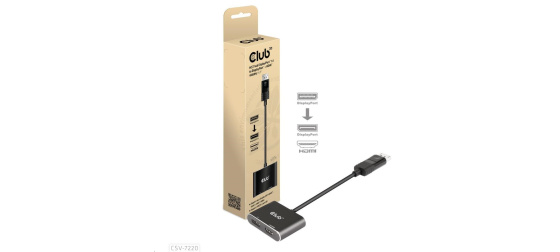

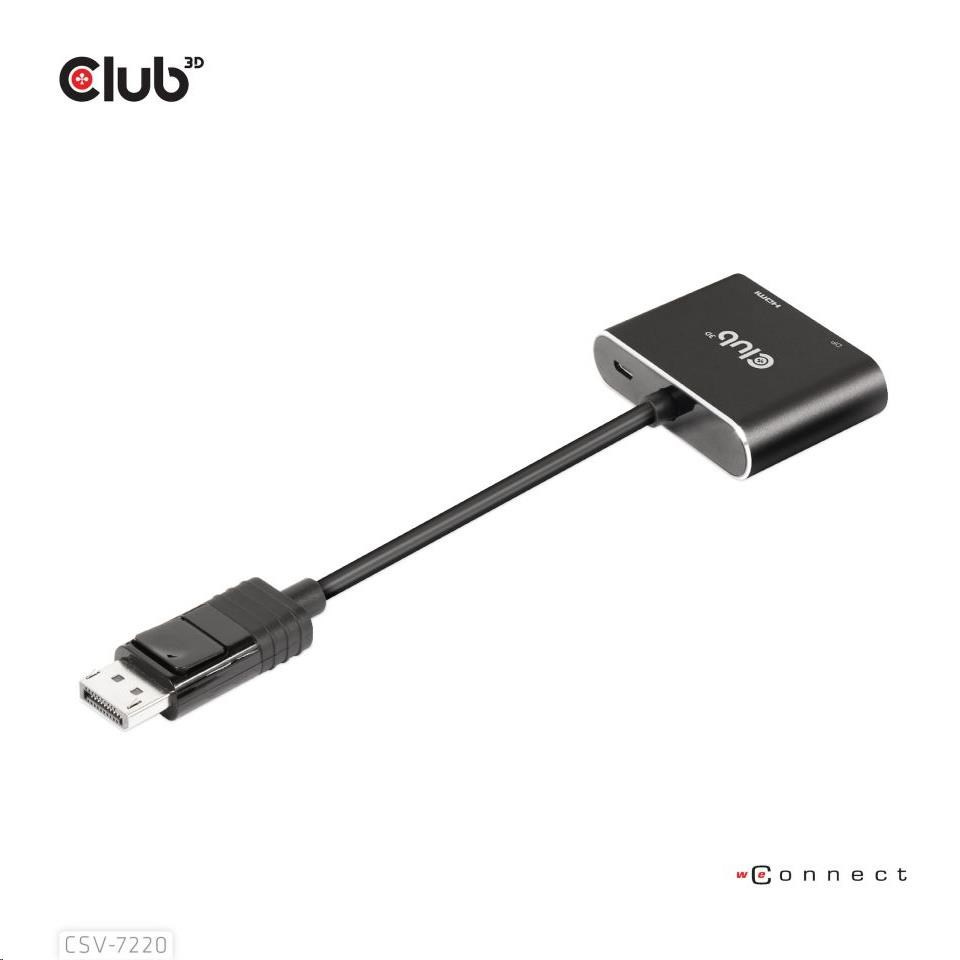

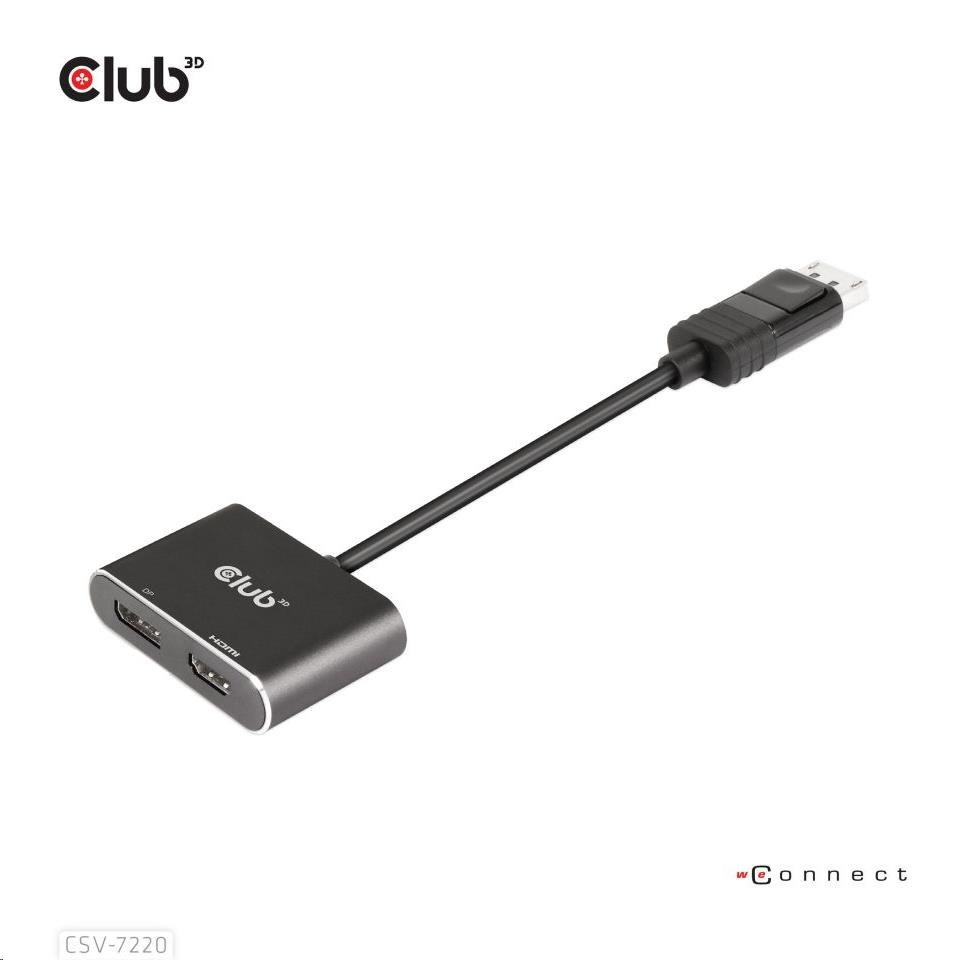

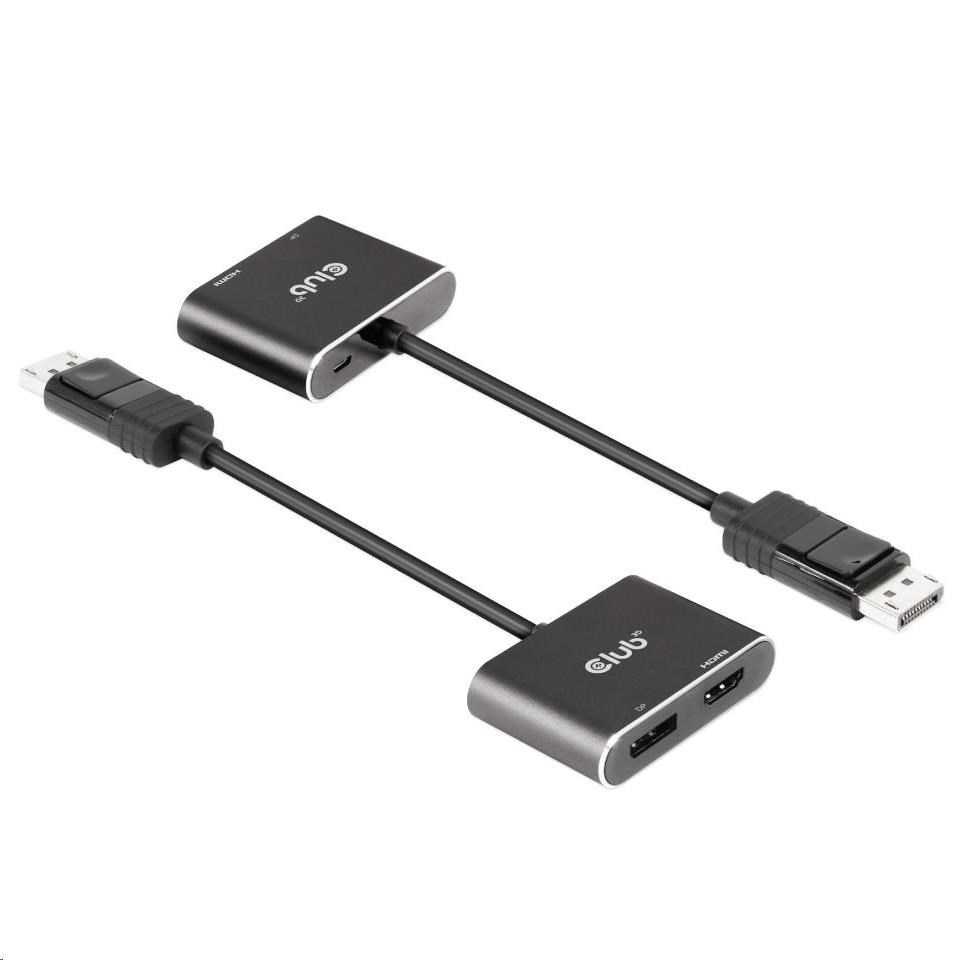

Popis Club3D hub MST (Multi Stream Transport) DisplayPort 1.4 na DisplayPort + HDMI 4K60Hz (M/F)
MST hub DisplayPort 1.4 to DisplayPort + HDMI 4K60Hz M/F
The CSV-7220 is a MST hub DisplayPort™ 1.4 to DisplayPort™ + HDMI™ 4K60Hz M/F. This DisplayPort™ 1.4 MST hub is designed to cater for your most versatile connectivity demands, such as Tablet, laptop, etc. with a free DP™ (DisplayPort) port.
Give your device more displays. PCs and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single DP™1.4 port available you can now drive one-Displayport™ screen simultaneously with a HDMI™ screen at 4K60Hz or One DP™ display at 8K30Hz in MST mode Windows). All it needs is a free DP™ 1.4 port on your Laptop or PC to connect to the MST hub and will provide you with unparalleled connection options for Dual 4K60Hz displays. The setup is easy and simple to do, provided your system supports DP1.4 specifications and DSC1.2 Compression, resolutions can be limited if the source device is lower. The CSV-7220 is externally powered by a USB Type-A to Micro USB cable which comes with the product.

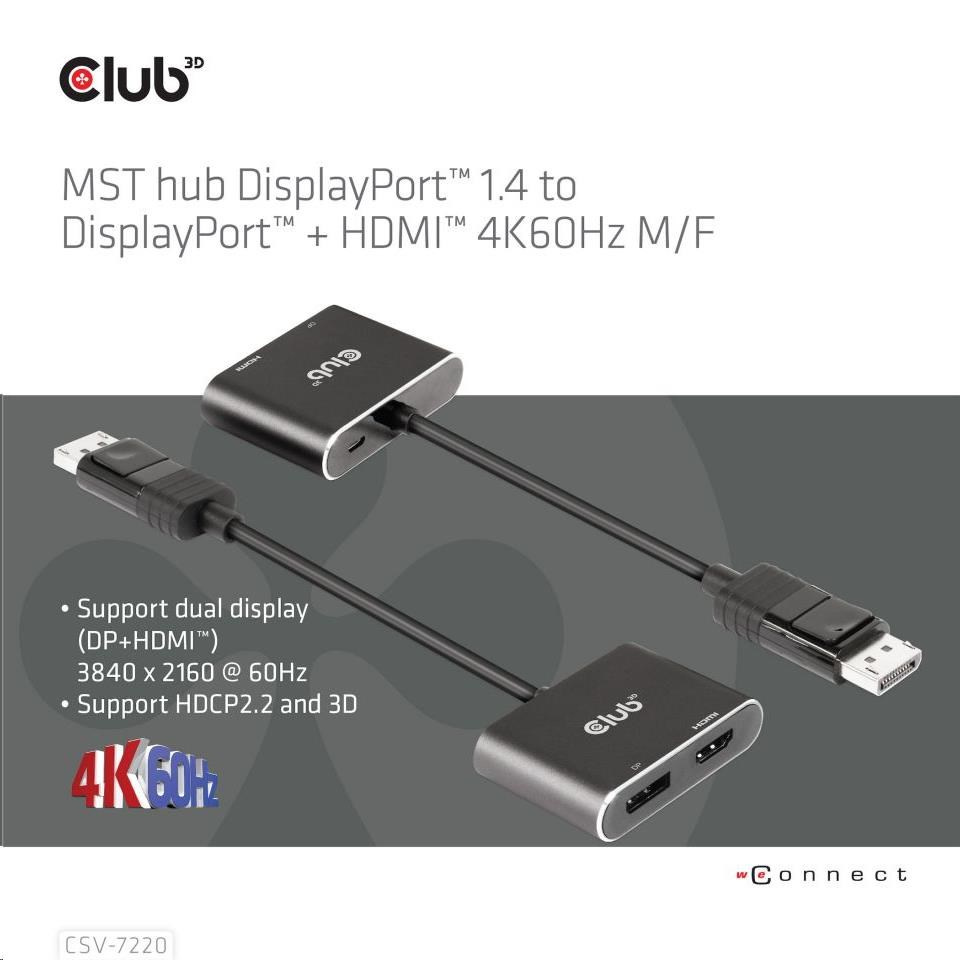

- Support dual display(DP+HDMI™) 3840 x 2160 @ 60Hz
- Support HDCP2.2 and 3D
- USB Powered, cable included
- Support SST mode at MAC OS®
- Support MST mode at Windows®
TECHNICAL SPECIFICATIONS
| OS Support | Windows®10, Mac OS® |

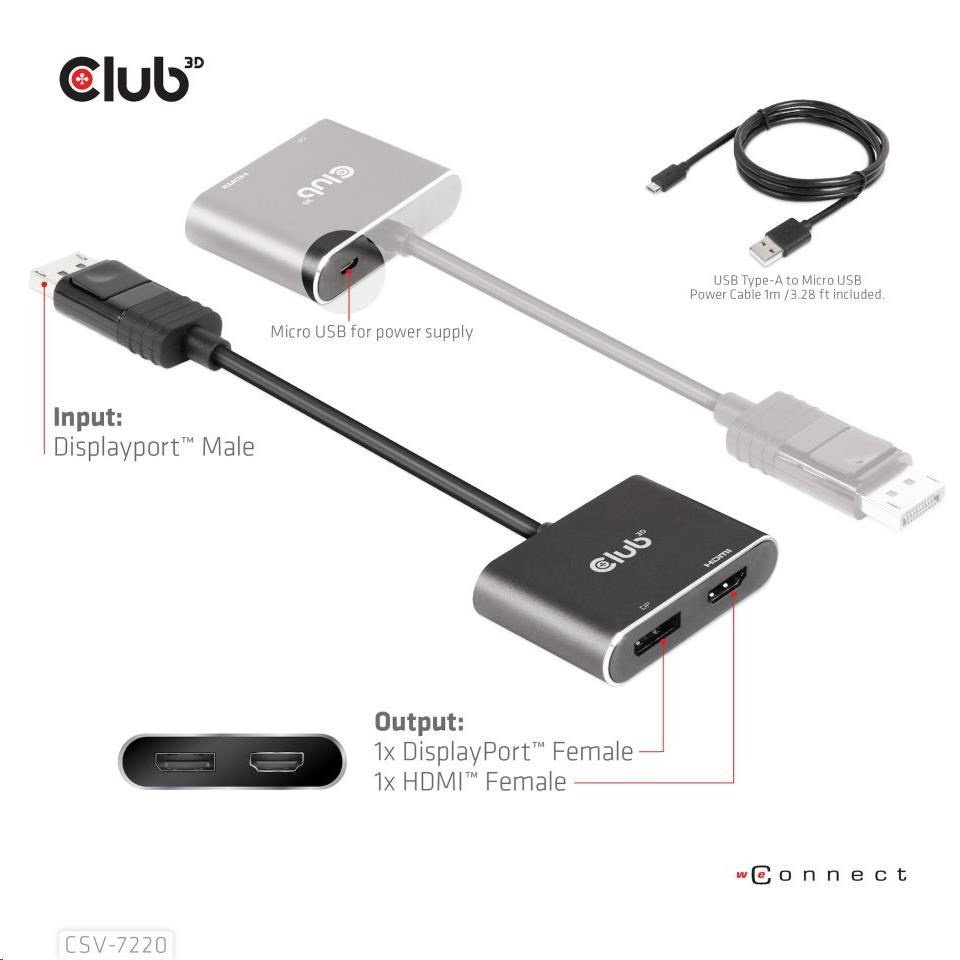

| In the box | - CSV-7220, MST hub DisplayPort™ 1.4 to DisplayPort™ + HDMI™ 4K60Hz M/F - USB Type-A to Micro USB Power Cable 1m /3.28 ft |
| Available Interfaces | Input: Output: |
| Box size | 7.3 x 3.5 x 25cm / 2.87 x 1.38 x 9.84" |
| Device size | 6.2 x 4.4 x 1.52 cm / 2.44 x 1.73 x 0.6" |
| Total length Device | 20 cm/ 7.87" |
| USB Power cable | 1m / 3.28 ft |
| Box Weight | 34 gr / 1.2 oz |
| Device Weight | 48 gr / 1.69 oz |
| USB Power cable Weight | 20 gr / 0.7 oz |
| LDPE Bag Weight | 5 gr / 0.17 oz |
| Total Weight | 107 gr / 3.77 oz |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
.Club 3D, Kolpingweg 2 6003 AM, Maastricht Nizozemsko, support@club-3d.com
