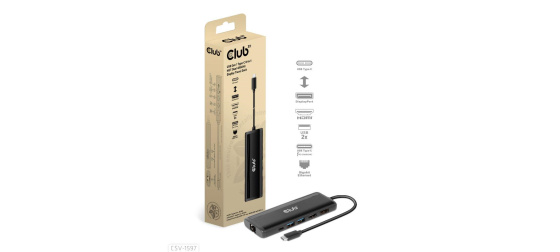

Club 3D Dokovací stanice USB-C 8v1, 1xDP, 1xHDMI, 1xUSB-C PD100W, 2xUSB, čtečka SD karet, šedá
Kód: 795216Skladem2ks
Termín a způsob doručení
Počet DP portů:1; Počet HDMI portů:1; Počet VGA portů:0; Počet USB-C:1; Počet USB-A:2; Max. počet ext.monitorů:2; SD karta; PD (max.W):100.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
795216
EAN:
8719214472368
Záruka:
24 Měsíc(ů)
Stav:
Počet DP portů:
1,000000000
Počet HDMI portů:
1,000000000
Počet USB-C:
1,000000000
Počet USB-A:
2,000000000
Počet VGA portů:
0,000000000
PD (max.W):
100,000000000
LAN:
Ne
SD karta:
Ano
Audio:
Ne
VESA podpora:
Ne
Max. počet ext.monitorů:
2,000000000
Popis Club 3D Dokovací stanice USB-C 8v1, 1xDP, 1xHDMI, 1xUSB-C PD100W, 2xUSB, čtečka SD karet, šedá

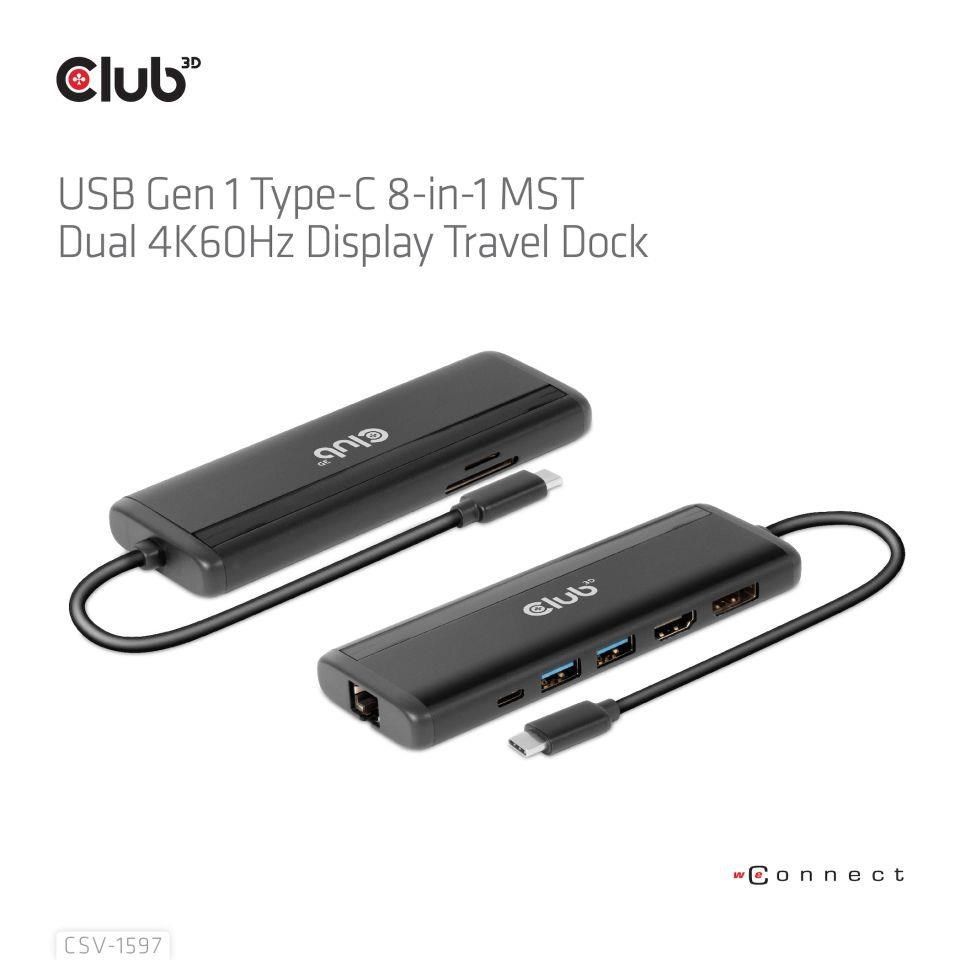

USB Gen 1 Type-C 8-in-1 MST Dual 4K60Hz Display Travel Dock

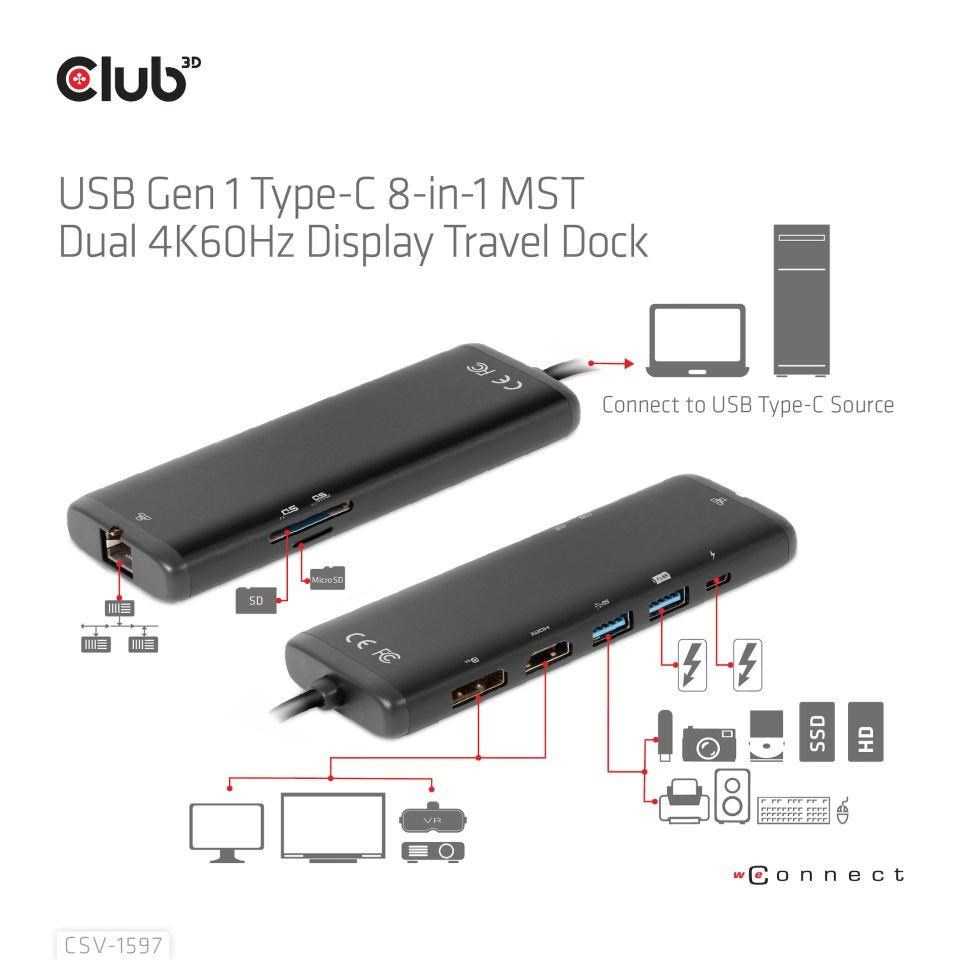

The Club 3D CSV-1597 USB Gen 1 Type-C 8-in-1 MST Dual 4K60Hz Display Travel Dock with HDMI™ 8K30Hz(HDR), DisplayPort™ 8K30Hz, 2x USB Gen 1 Type-A, BC1.2, RJ45, SD/Micro SD card slots and USB Gen 1 Type-C PD3.0 Female port, provides a very advanced, efficient solution to extend a single USB Gen 1 Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen 1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen 1 Type-C hosts.

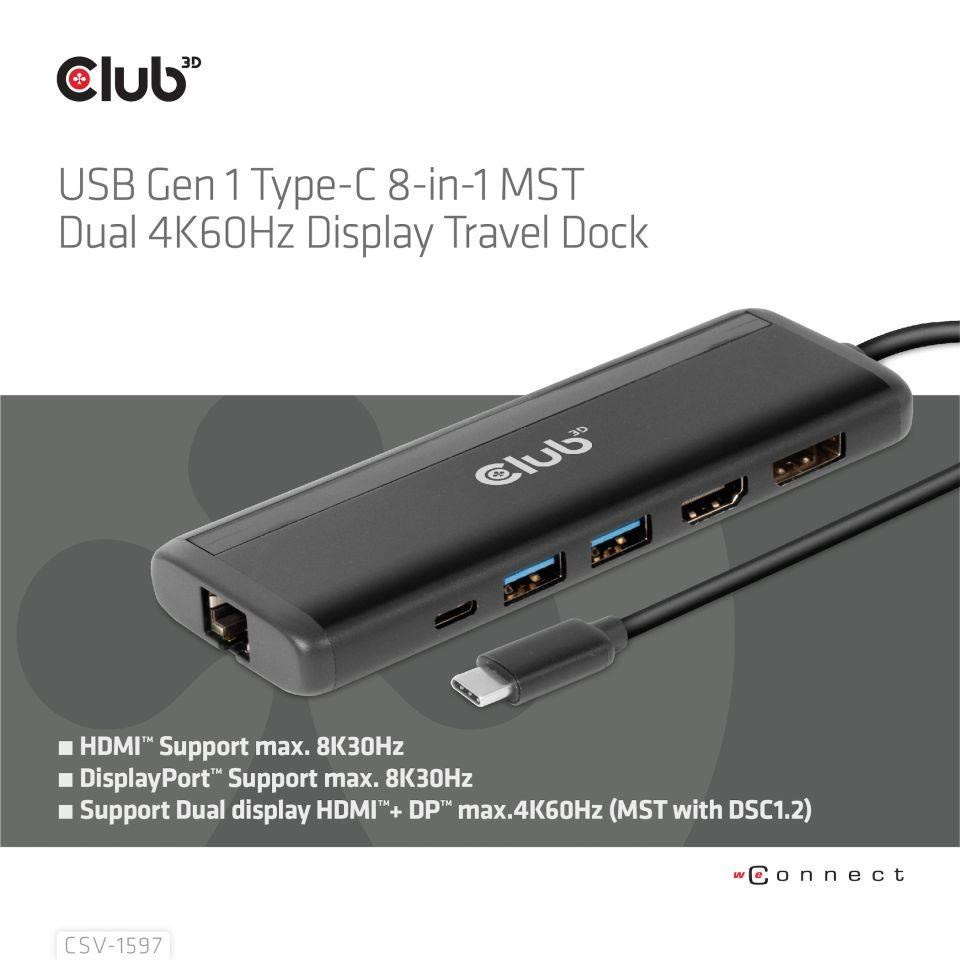

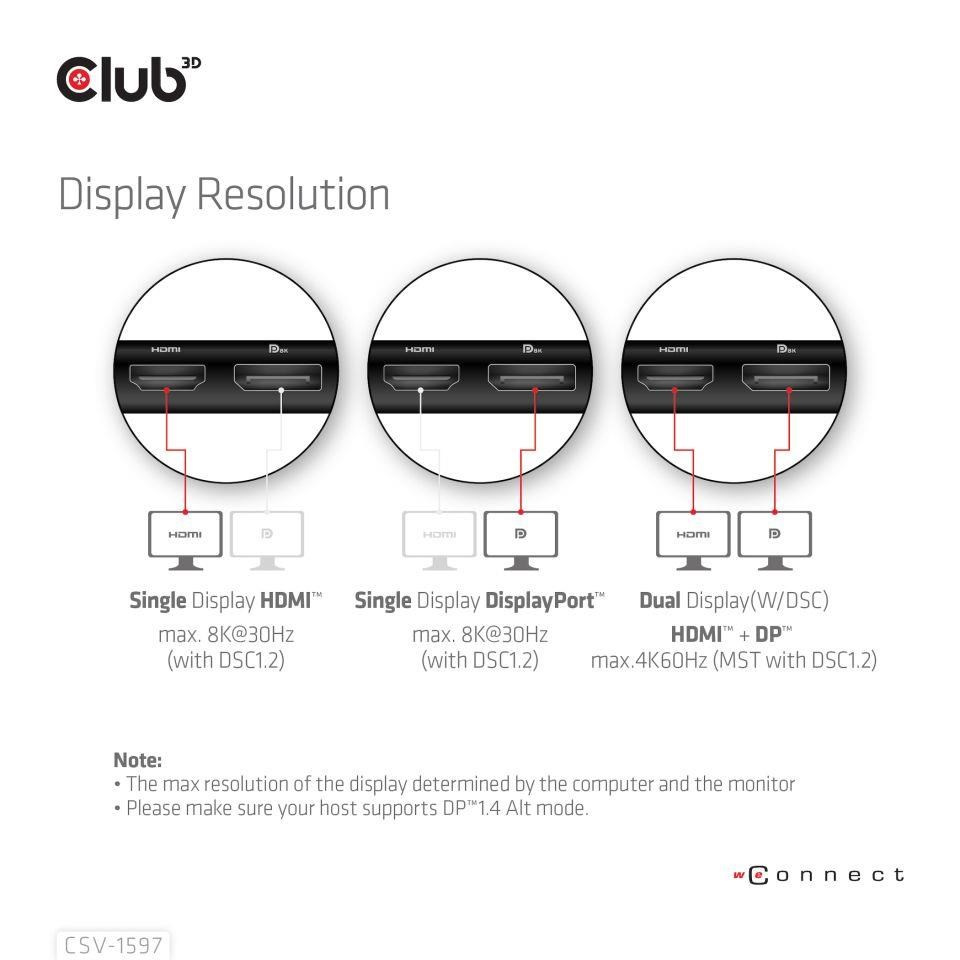

- Support DP™1.4 Alt mode max. 8K@30Hz(with DSC1.2)
- Support HDMI™ max. 8K@30Hz(with DSC1.2)
- Support Dual display HDMI™+ DP™ max.4K60Hz (MST with DSC1.2)

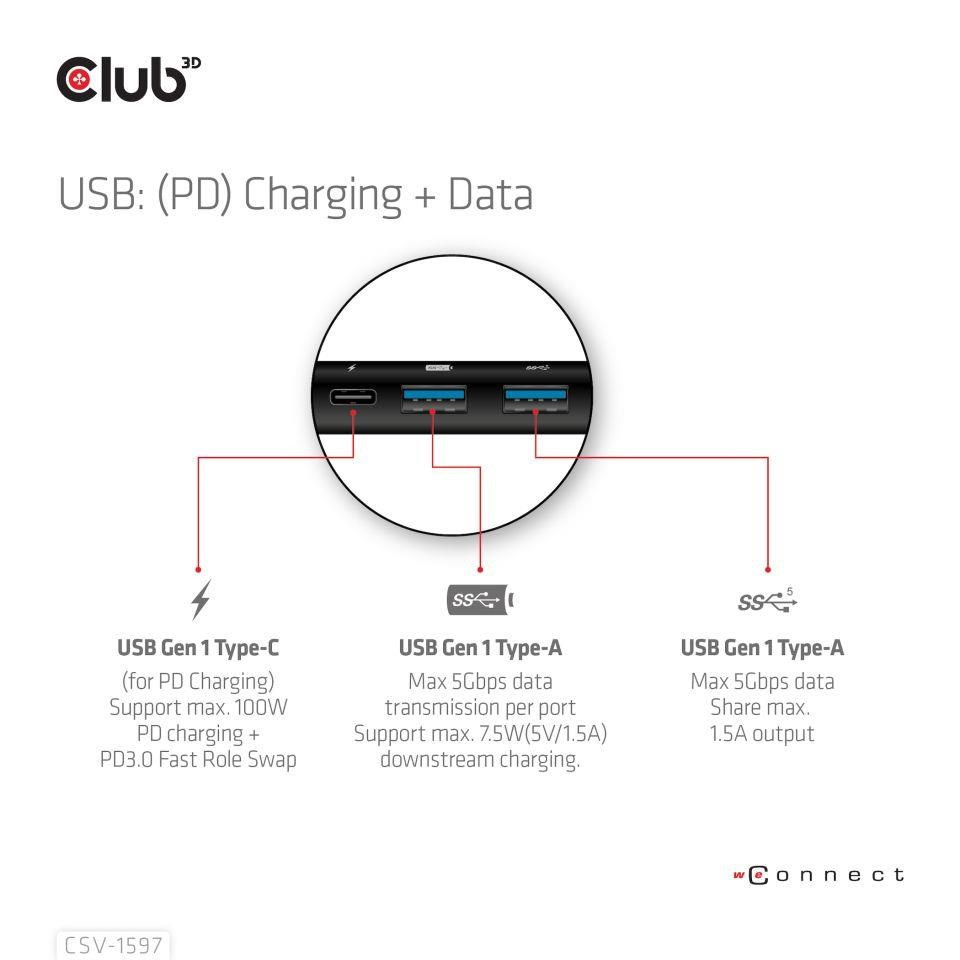

- Max 5Gbps data transmission per USB Gen 1 Type-A port
- Support max. 7.5W(5V/1.5A) downstream charging, 2 USB Gen 1 Type-A share max. 1.5A output
- Support Gigabit Ethernet 10M/100M/1000M
- Support SD3.0 UHS-I up to 832Mbps/104MB/s data rate, allow 2 card slots to work simultaneously
- Support PD3.0 with max. 100W PD charging
- NOTE: Please make sure your host supports DP™1.4 Alt mode.
TECHNICAL SPECIFICATIONS
| Input | • 1x USB Gen 1Type-C Male(Connect to host) Support DP™1.4 Alt mode Note: To get max. bandwidth, the host should support DP™1.4 Alt mode |
| Outputs | Output(s): • 1x HDMI™ Support max. 8K30Hz • 1x DisplayPort™ Support max. 8K30Hz - Support Dual display HDMI™+ DP™ max.4K60Hz (MST with DSC1.2) Note: The max. resolution of the display determined by the computer and the monitor • 2x USB Gen 1 Type-A Max. 5Gbps data transmission per port Support max. 7.5W(5V/1.5A) downstream charging. 2 USB Gen 1 Type-A ports share max. 1.5A output Support short-circuit, over-current, over-voltage protection • 1x RJ45 Support Gigabit Ethernet,10M/100M/1000M • 2x SD/Micro SD 3.0 Support UHS-I up to 832Mbps/104MB/s data rate Allow 2 card slots to work simultaneously • 1x USB Gen 1 Type-C Female (for PD Charging) Support max. 100W PD charging Support PD3.0 Fast Role Swap, the connected device will not get disconnected while plugging in and out the PD |
| OS Support | • Microsoft® and Apple® |
| Available Interfaces | Input: • USB Gen 1 Type-C Male (Connect to host) Output: • 1x HDMI™ Female • 1x DisplayPort™ Female • 2x USB Gen 1 Type-A Female • 1x RJ45 • 1x SD / 1x Micro SD 3.0 • 1x USB Gen 1 Type-C Female |

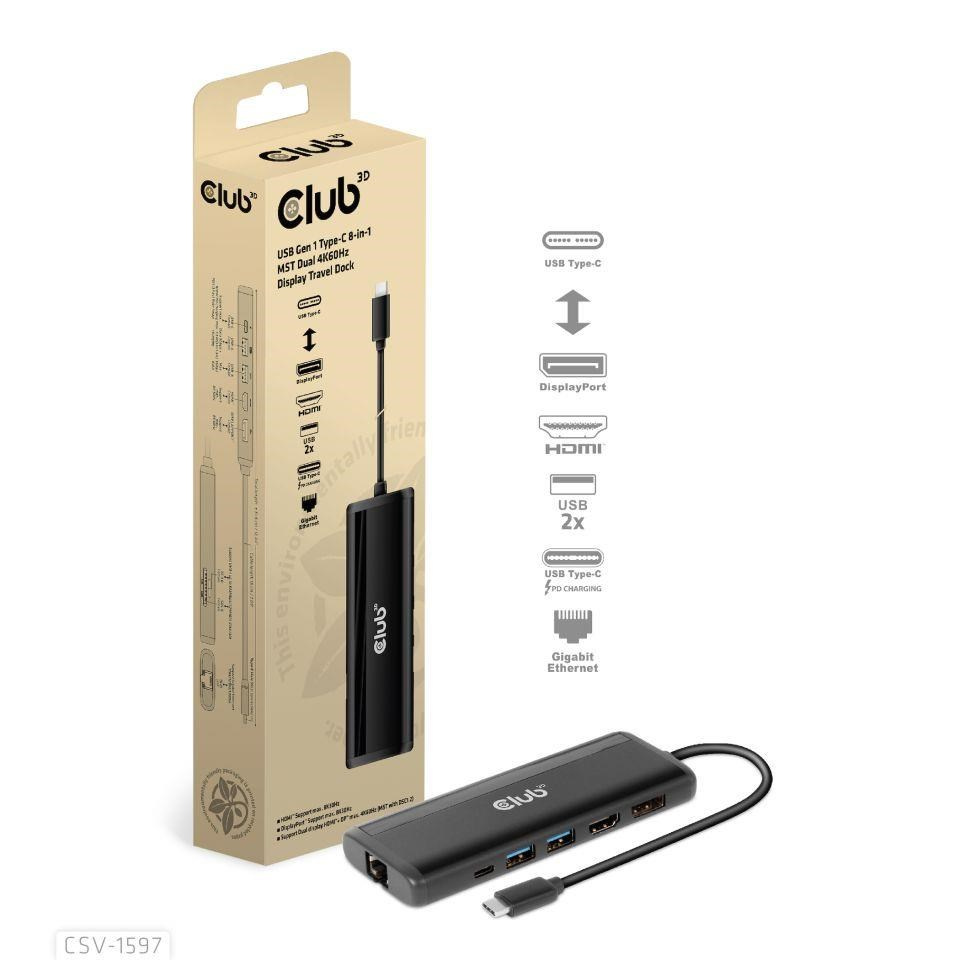

| In the box | • 1x USB Gen 1 Type-C 8-in-1 MST Dual 4K60Hz Display Travel Dock |

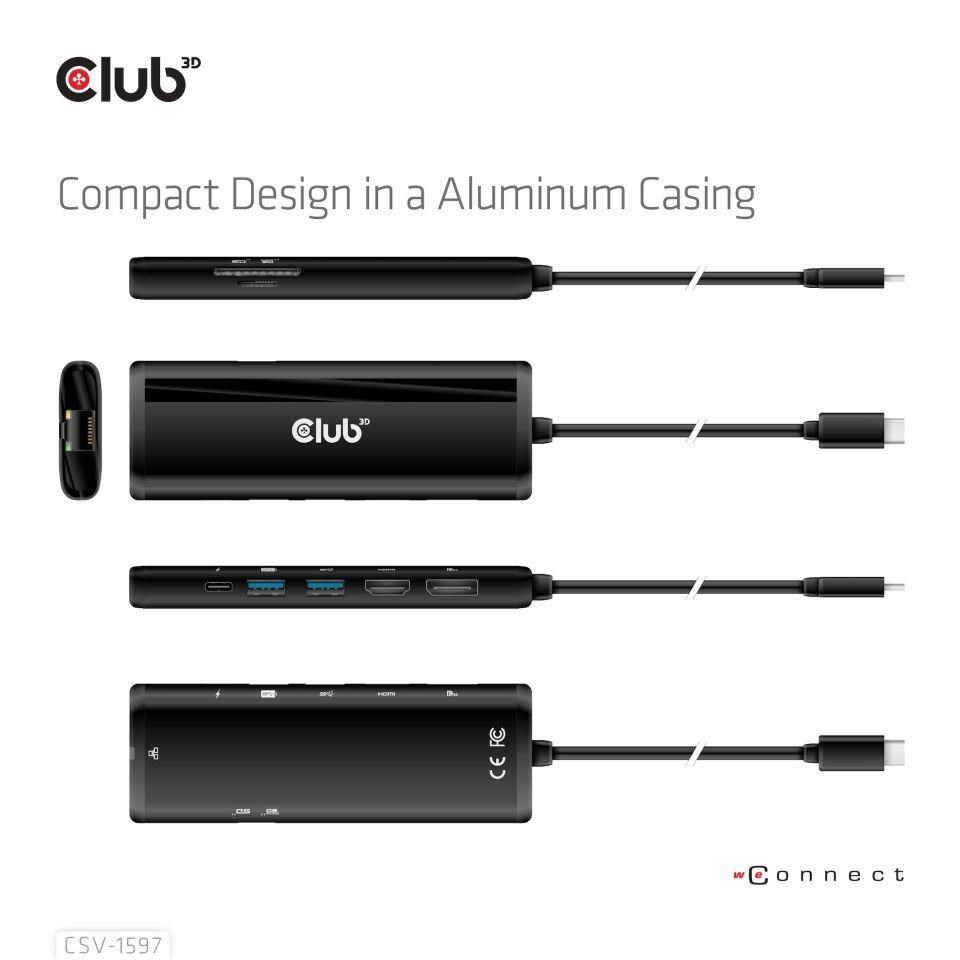

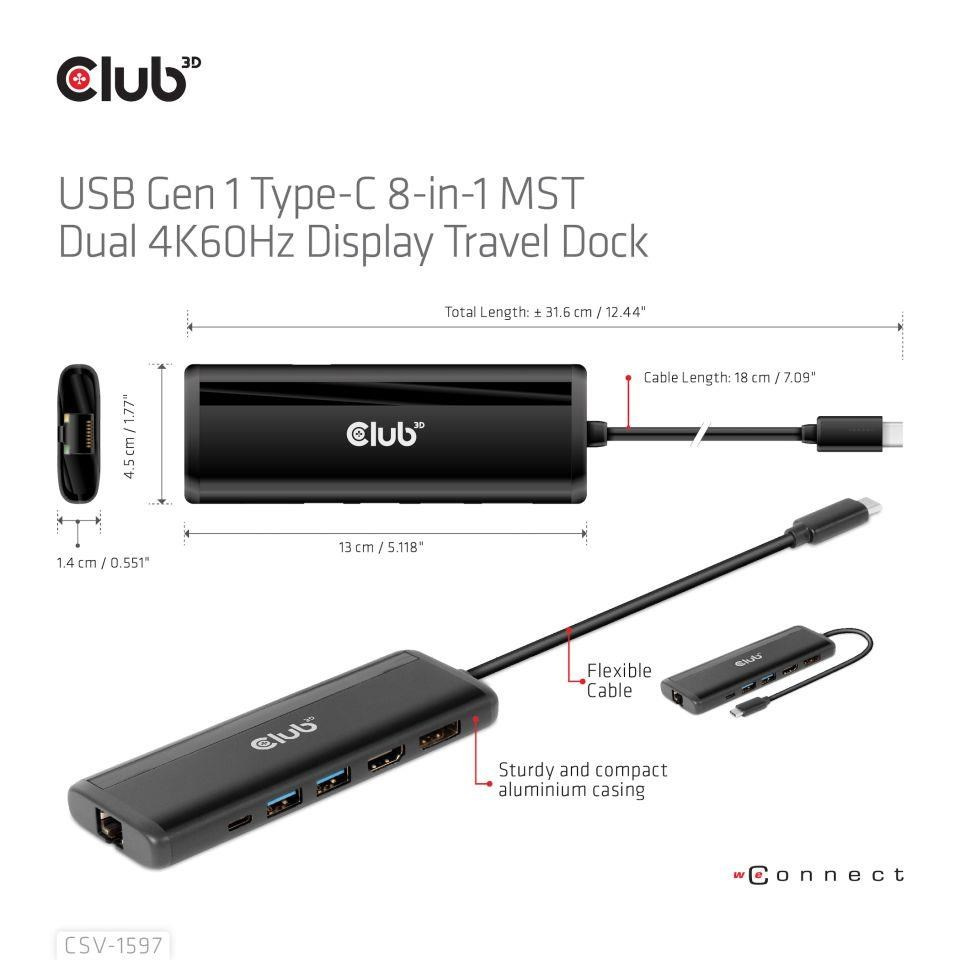

| Other info | • Box size: 25 x 8 x 3.5cm / 9.84 x 3.15 x 1.38" • Cable length: 18 cm / 7.09" • Total length: ± 31.6 cm / 12.44" • Hub dimensions: 13 x 4.5 x 1.4 cm / 5.12 x 1.77 x 0.55" • Connector dimensions: 3.4 x 1.2 x x 0.65 cm / 0.86 x 0.47 x 0.26" • Product Weight: 82 gr / 4.13 oz • Box Weight: 54 gr / 1.9 oz • Total Weight: 136 gr / 4.79 oz • Meets ROHS, FCC, and CE EMI requirements |
Note:
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !
- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
.Club 3D, Kolpingweg 2 6003 AM, Maastricht Nizozemsko, support@club-3d.com
