CHIEFTEC zdroj Polaris Series, PPS-650FC, 650W, ATX-12V V.2.4, PS2, 12cm fan, Active PFC, Modular, 80+ Gold
Kód: 1022593Skladem4ks
Termín a způsob doručení
Výkon zdroje (W):650; Formát zdroje:ATX; Konektory:8pin CPU 1x, 8pin CPU 2x, PCIe 6-pin, PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 20-pin, ATX 24-pin, EPS 8-pin; Modulární kabeláž; Efektivita zdroje:80 Plus Gold; Vlastnosti zdroje:Modulární kabeláž; Podsvícení:Bez podsvícení.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1022593
EAN:
753263076434
Záruka:
24 Měsíc(ů)
Stav:
Formát zdroje:
ATX
Konektory:
FDD
Konektory pro základní desku:
EPS 8-pin
Modulární kabeláž:
Ano
Vlastnosti zdroje:
Modulární kabeláž
Efektivita zdroje:
80 Plus Gold
Podsvícení:
Bez podsvícení
Výkon zdroje (W):
650,000000000

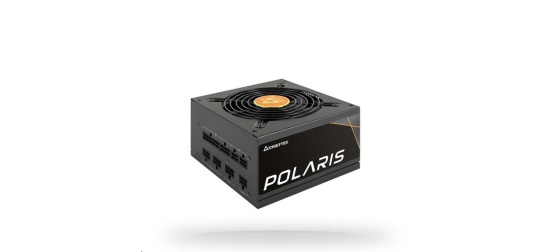

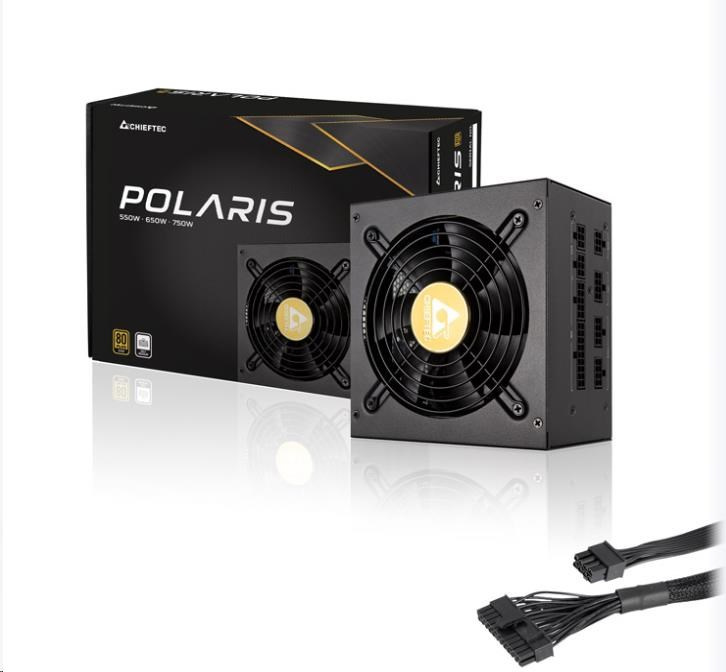

Popis CHIEFTEC zdroj Polaris Series, PPS-650FC, 650W, ATX-12V V.2.4, PS2, 12cm fan, Active PFC, Modular, 80+ Gold
PPS-650FC
- 80 PLUS® Gold certified efficiency
- Fully modular cable management
- High power density design for compact size
- LLC half-bridge converter with DC-to-DC technology
The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS® Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.
With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.
TECHNICAL SPECIFICATIONS
| PERFORMANCE | |
| Model | Polaris 650W |
| Article no. | PPS-650FC |
| EAN code | 0753263076434 |
| Weight (without/with package) | 2.175 kg / 2.480 kg |
| AC Input | 100-240V / 10A |
| Frequency | 50-60Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 120W |
| +12V 1 | 54.2A / 650W |
| +12V 2 | - |
| +12V 1 & +12V 2 combined | - |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VsB | 3.0A / 15W |
| Maximum Power | 650W |

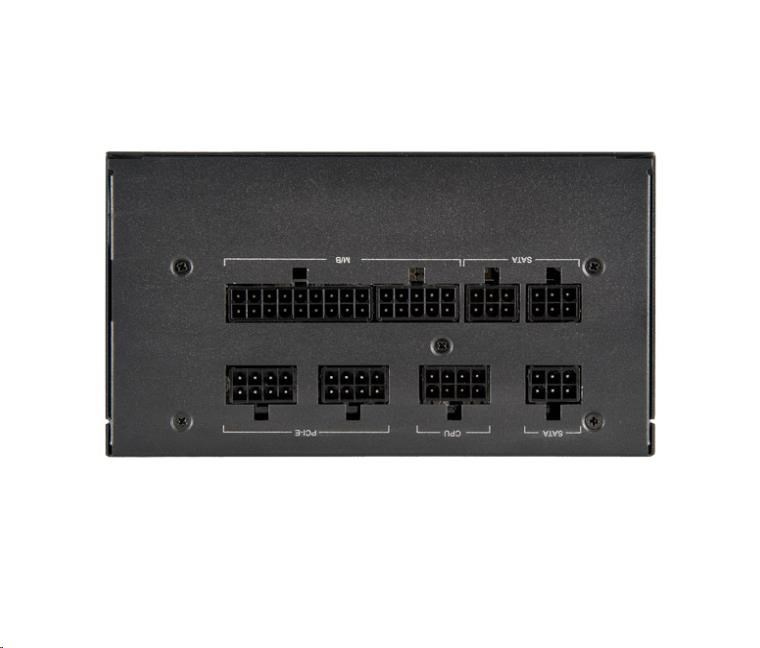

| CONNECTORS | |
| 20+4PIN ATX | 1 |
| 8 PIN EPS (4+4) | 2 |
| 8 PIN PCIe (6+2) | 4 |
| SATA | 6 |
| MOLEX | 3 |
| FLOPPY | 1 |
| CABLE LENGHT | |
| 20+4PIN ATX | 650 |
| 8 PIN EPS (4+4) | 650/150 |
| 8 PIN PCIe (6+2) | 2x 500/150 |
| SATA | 2x 450/150/150 |
| MOLEX | 450/150/150/150 |
| FLOPPY | Molex |
| FEATURES | |
| Specification | ATX 12V 2.4 |
| Form factor | PS II |
| Efficiency | 80 PLUS® Gold |
| Dimension (DxWxH) | 140mm x 150mm x 87mm |

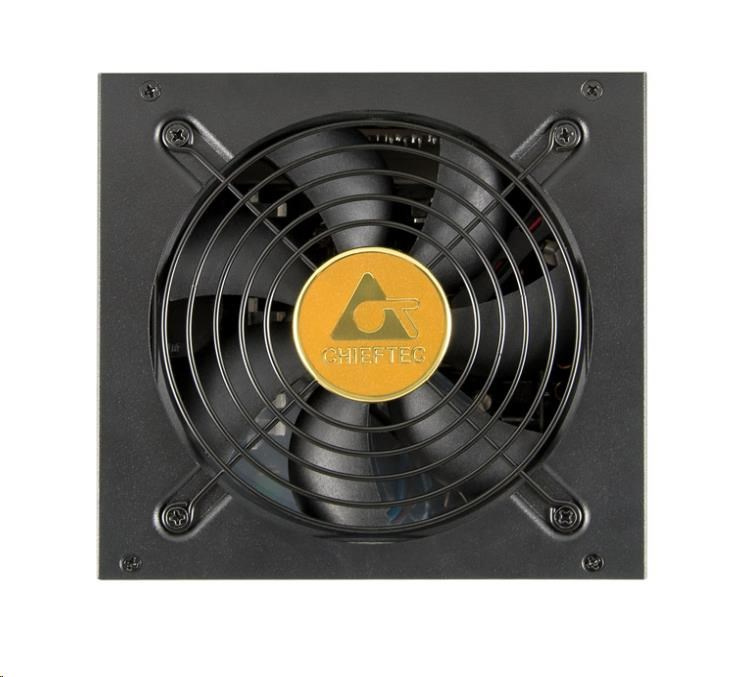

| Fan | 120mm silent fan |
| Security | AFC (Automatic Fanspeed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over Temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) OCP (Overcurrent protection) UVP (Undervoltage protection) |
| Warranty | 24 Months |
.
Chieftec, Arena Electronic GmbH, Koppersstr. 18 40549 Düsseldorf ,Germany, info@chieftec.eu
