CHIEFTEC zdroj Chieftronic GPU-650FC, 650W, PFC, 14cm fan, 80+ Gold
Kód: 1022567Není skladem
Termín a způsob doručení
Výkon zdroje (W):650; Formát zdroje:ATX; Konektory:8pin CPU 1x, PCIe 6-pin, PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 20-pin, ATX 24-pin, EPS 8-pin; Modulární kabeláž; Efektivita zdroje:80 Plus Gold; Vlastnosti zdroje:Modulární kabeláž; Podsvícení:Bez podsvícení.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1022567
EAN:
753263076076
Záruka:
36 Měsíc(ů)
Stav:
Formát zdroje:
ATX
Konektory:
FDD
Konektory pro základní desku:
EPS 8-pin
Modulární kabeláž:
Ano
Vlastnosti zdroje:
Modulární kabeláž
Efektivita zdroje:
80 Plus Gold
Podsvícení:
Bez podsvícení
Výkon zdroje (W):
650,000000000

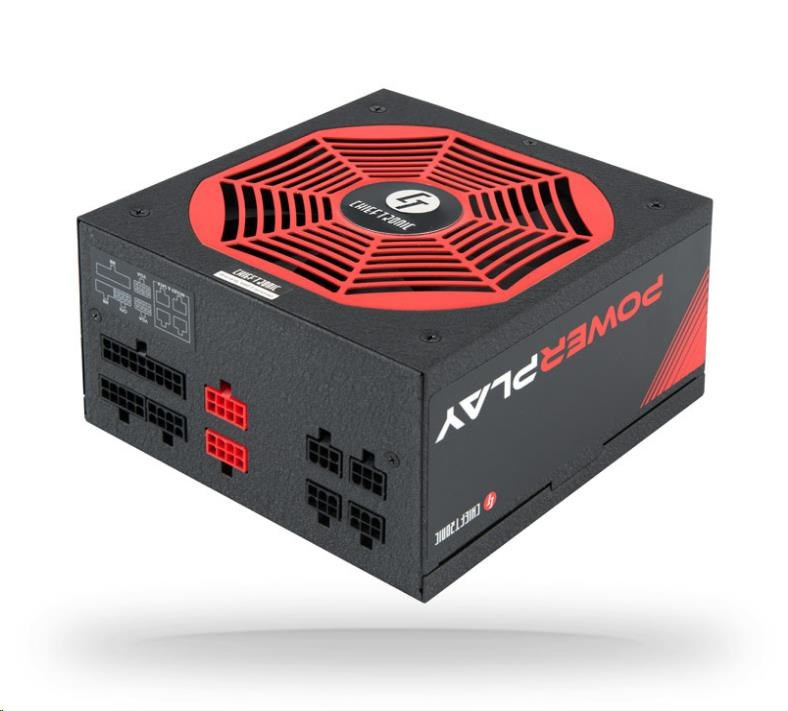

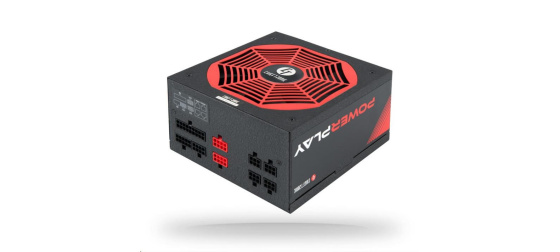

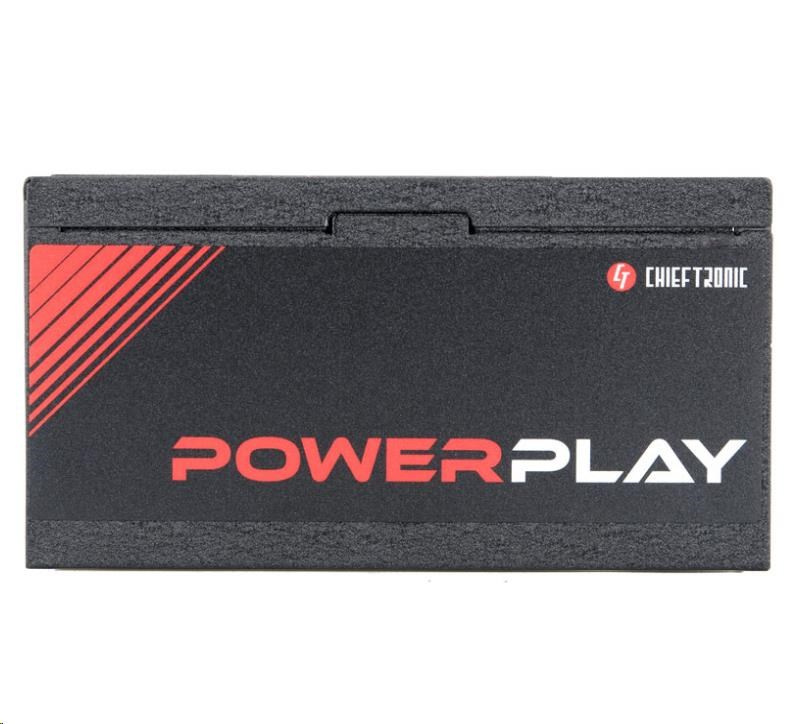

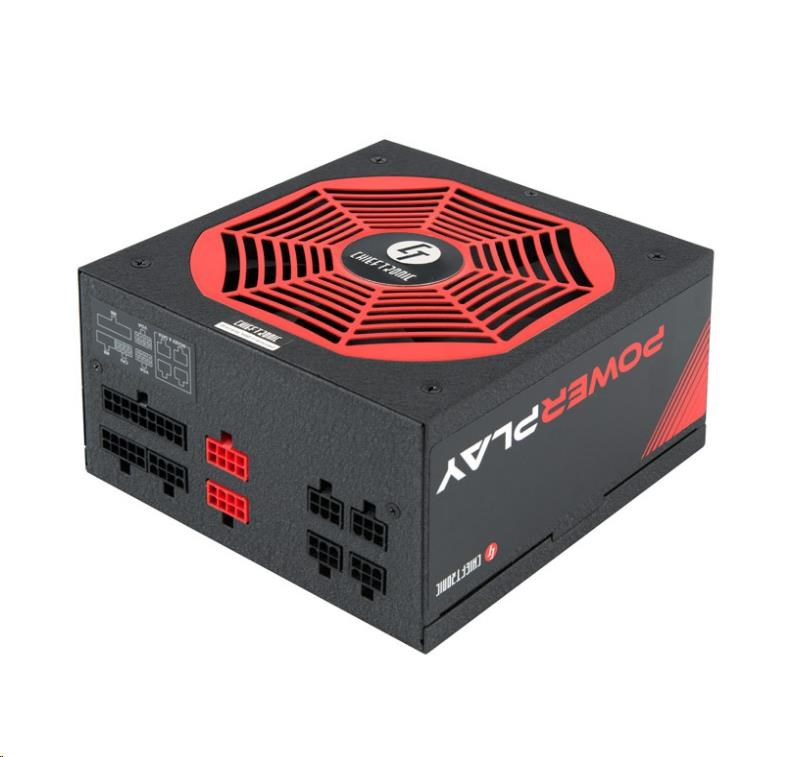

Popis CHIEFTEC zdroj Chieftronic GPU-650FC, 650W, PFC, 14cm fan, 80+ Gold
CHIEFTEC GPU-650FC
- Fully modular cable management
- 80 PLUS Gold Efficiency
- Premium Japanese capacitors for minimal ripple noise
- Quality case housing finish with eye-catching fan filter design
The Chieftronic PowerPlay series builds on Chieftec’s many years of experience developing top-quality power-supplies and combines top specs like 80 PLUS Gold (at 550W, 650W, 750W) and 80 PLUS Platinum (at 850W, 1050W), premium Japanese capacitors for low ripple noise with an eye-catching fan filter design to offer an attractive PSU for users who want a true top-tier product.
Featuring a rugged build quality, the PowerPlay series measures only 160mm in length, therefore comfortably fitting into almost any system supporting ATX format PSU’s and leaving plenty of space for easy cable management.
This combination of efficiency, performance and build design makes the PowerPlay series a true top-of-the-line model leading Chieftronic’s PSU line-up.
TECHNICAL SPECIFICATIONS
| PERFORMANCE | |
| Model | PowerPlay 650W |
| Article no. | GPU-650FC |
| EAN code | 0753263076076 |
| Weight (without/with package) | 2.36 kg / 2.77 kg |
| AC Input | 100 - 240V / 10.0A |
| Frequency | 47 - 63Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | - |
| +12V 1 | 54.2A / 650.4W |
| +12V 2 | - |
| +12V 1 & +12V 2 combined | - |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VsB | 3,0A / 15W |
| Maximum Power | 650W |

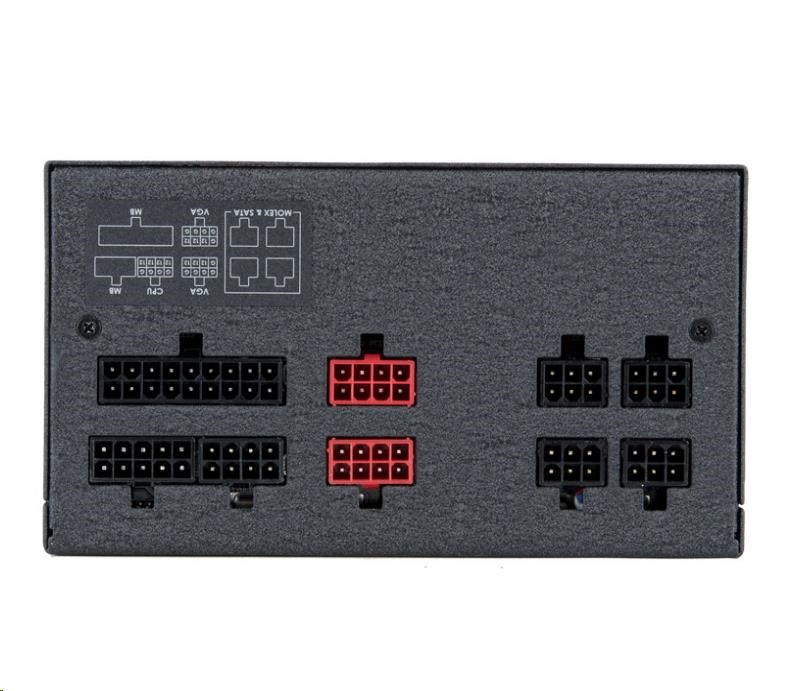

| CONNECTORS | |
| 20+4PIN ATX | 1 |
| 8 PIN EPS (4+4) | 1 |
| 8 PIN PCIe (6+2) | 4 |
| SATA | 9 |
| MOLEX | 3 |
| FLOPPY | 1 |
| CABLE LENGHT | |
| 20+4PIN ATX | 600 |
| 8 PIN EPS (4+4) | 700 |
| 8 PIN PCIe (6+2) | 2x 600/150 |
| SATA | 3x 800/150/150 |
| MOLEX | 700/150/150/150 |
| FLOPPY | Molex |
| FEATURES | |
| Specification | ATX 12V 2.3 |
| Form Factor | PS II |
| Efficiency | 80 PLUS Gold |
| Dimension (DxWxH) | 160 mm x 150 mm x 86 mm |
| PFC | Active PFC |
| Fan | 140mm silent fan |
| Security | OVP (Over voltage protection) OPP (Over power protection) OCP (Over current protection) SCP (Short-circuit protection) OTP (Over temperature protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection) No-load operation |
| Warranty | 36 Months |
.
Chieftec, Arena Electronic GmbH, Koppersstr. 18 40549 Düsseldorf ,Germany, info@chieftec.eu
Diskuze k produktu CHIEFTEC zdroj Chieftronic GPU-650FC, 650W, PFC, 14cm fan, 80+ Gold
Tato položka nebyla doposud diskutována. Pokud chcete být první, klikněte na tlačítko Přidat příspěvěk
