BAZAR - SEASONIC zdroj 650W CORE GM-650 (SSR-650LM), ATX, 12cm fan, 80+ GOLD - Po opravě
Kód: 522545Skladem1ks
Termín a způsob doručení
Formát zdroje:ATX; Konektory:PCIe 6-pin, PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin; Efektivita zdroje:80 Plus Gold.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
522545
EAN:
522545
Záruka:
7 Rok(ů)
Stav:
Bazar
Formát zdroje:
ATX
Konektory:
PCIe 6-pin, PCIe 8-pin, FDD, Molex, SATA 15-pin
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Gold
Popis BAZAR - SEASONIC zdroj 650W CORE GM-650 (SSR-650LM), ATX, 12cm fan, 80+ GOLD - Po opravě
The CORE Series is the brand new series that completes the Seasonic lineup. The 80 PLUS® Gold certified CORE Series comes in all three cabling setups, including the fully modular CORE GX, semi-modular CORE GM, and lastly the fixed-cabled CORE GC. The Seasonic Smart and Silent Fan Control automatically adjusts the fan speed according to the temperature inside the power supply. As part of the TUF Gaming Alliance, the CORE Series is the perfect unit to go with your gaming PC.
80 PLUS® Gold
The CORE GM Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.

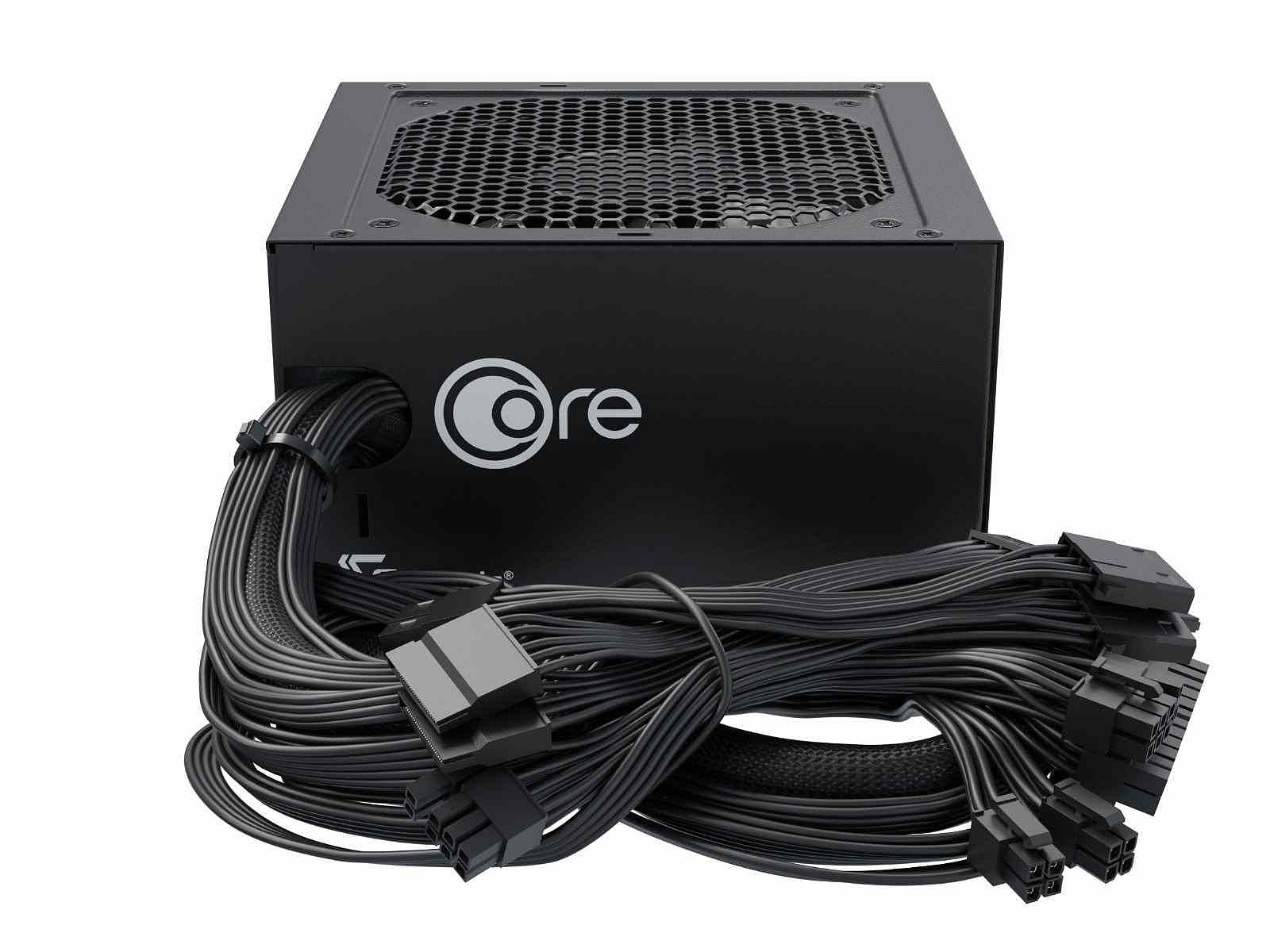

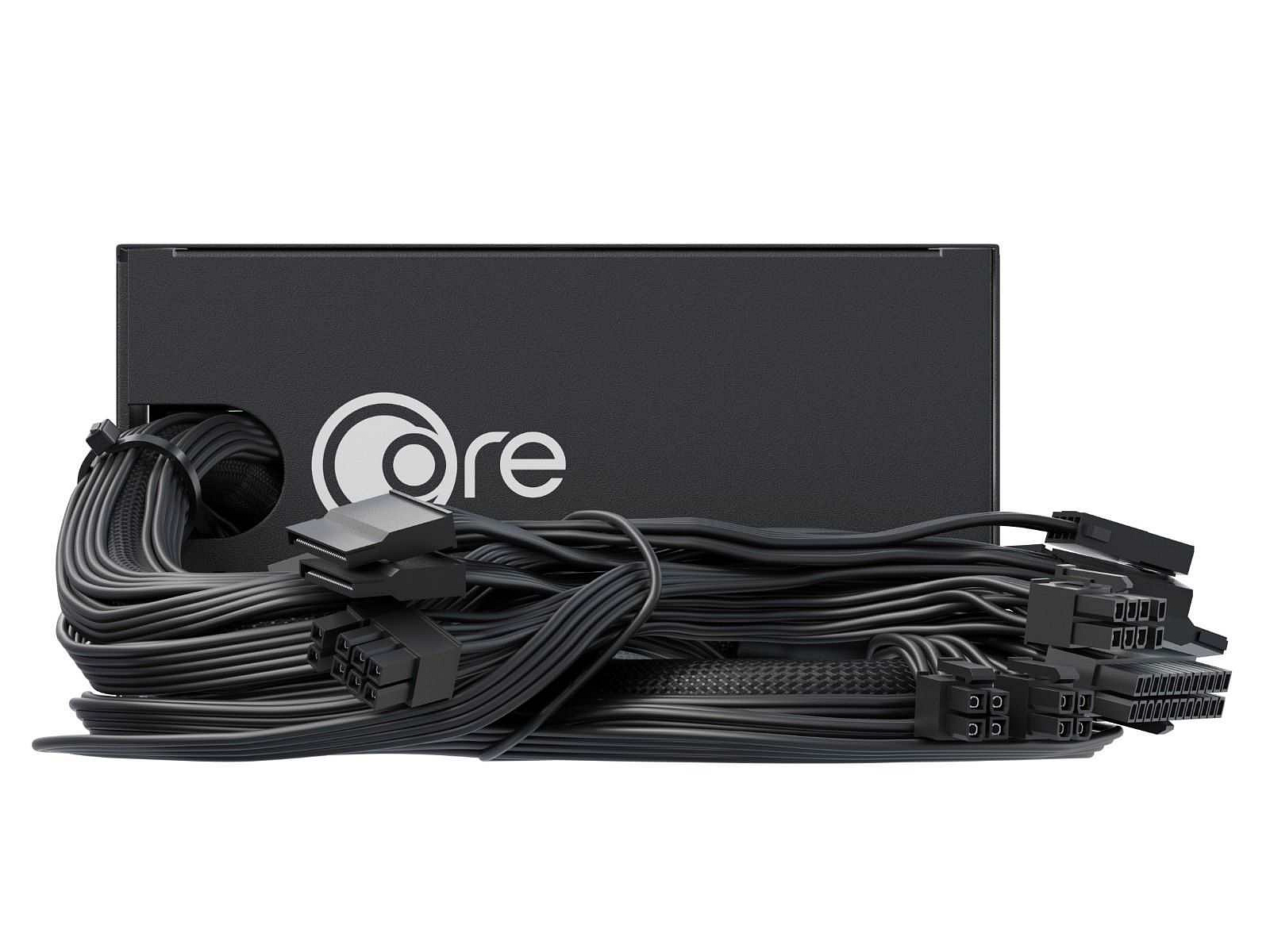

SEMI-MODULAR CABLES
Some cables are permanently attached to the power supply (most of the time the 24-pin and the 8-pin ATX power cables) and the rest of the cables can be used to connect the rest of the available components.
S2FC - Smart and Silent Fan Control
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
feature summary
- 80 PLUS® Gold certified
- Semi-modular
- Tight Voltage Regulation
- S2FC - Smart and Silent Fan Control
- DC to DC Converter Design
- 105 °C Japanese Capacitor
- 7 years warranty
Specifications
CORE-GM-650
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control | |
| Fan Bearing | Sleeve Bearing | |
| Life Expectancy | 25,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Semi-modular |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, OCP, OTP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 7 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 9 - 4.5 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 54 A | 0.3 A | 3 A | |
| 100 W | 648 W | 3.6 W | 15 W | |||
| Total continuous power | 650 W | |||||
Cables
CORE-GM-650
| Cable type | Connector(s) per cable | Total length (mm) | Number(s) of cable(s) included |
|---|---|---|---|
| MB (24/20 pins) | 1 | 610 | 1 |
| CPU (8/4 pins) | 1 | 650 | 1 |
| PCIe (8/6 pins) | 2 | 750 | 2 |
| PCIe (8/6 pins) | 1 | 750 | 0 |
| SATA | 4 | 810 | 1 |
| SATA | 4 | 860 | 0 |
| SATA | 4 | 760 | 0 |
| SATA | 2 | 700 | 0 |
| SATA | 2 | 570 | 0 |
| SATA | 2 | 470 | 0 |
| SATA | 2 | 450 | 1 |
| Molex | 3 | 690 | 1 |
| Molex | 2 | 470 | 0 |
| Molex to SATA 3.3 Adapter | 2 | 300 | 0 |
| Molex to FDD Adapter | 1 | 101 | 0 |
Seasonic Electronics Co., Ltd., No. 168, Zihyou St., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.), support@seasonic.com
