BAZAR - GIGABYTE MB Sc LGA1700 Z790 D DDR4, 4xDDR4, 1xHDMI, ATX - Po opravě (Bez příšlušenství)
Kód: 1706350Není skladem
Termín a způsob doručení
Formát základní desky:ATX; Chipset:Intel Z790; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:3; SATA 3:6; Podpora RAID:0, 1, 5, 10; PCI Express x16:3; PCI Express x1:2; LAN:2.5Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:0; DVI:0; DisplayPort Type-C:0; USB 2:6; USB 3:7.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1706350
EAN:
1706350
Záruka:
6 Měsíc(ů)
Stav:
Bazar
Technologie paměti RAM:
DDR4
Socket (patice):
Socket 1700
Formát základní desky:
ATX
Chipset:
Intel Z790
PCI Express x16:
3
Podpora RAID:
1, 5, 10
Pro procesory:
Intel
Počet paměťových slotů:
4
3.5mm Jack:
Ano
LAN:
2.5Gbit/s
DisplayPort:
1
Bezdrátové připojení:
bez
Led Header:
Ano
TPM:
Ano
PCI Express x1:
2
USB 2:
6
USB 3:
7
USB C:
2
M.2 slot:
3
SATA 3:
6
HDMI:
1
Popis BAZAR - GIGABYTE MB Sc LGA1700 Z790 D DDR4, 4xDDR4, 1xHDMI, ATX - Po opravě (Bez příšlušenství)

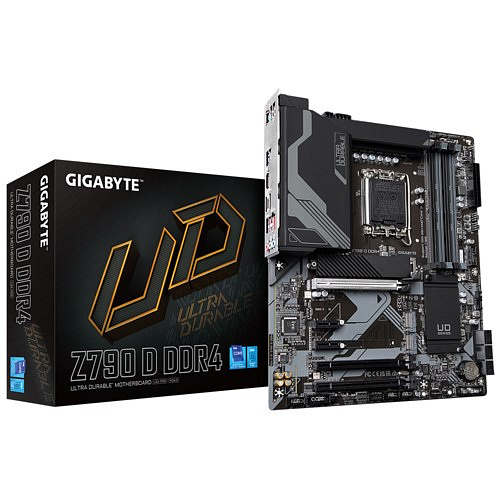

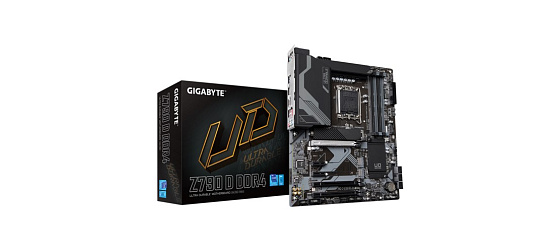

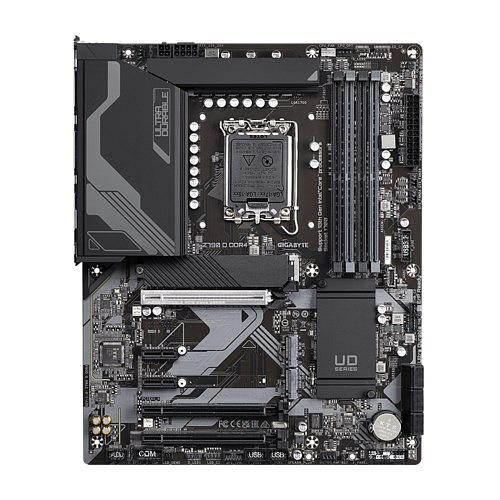

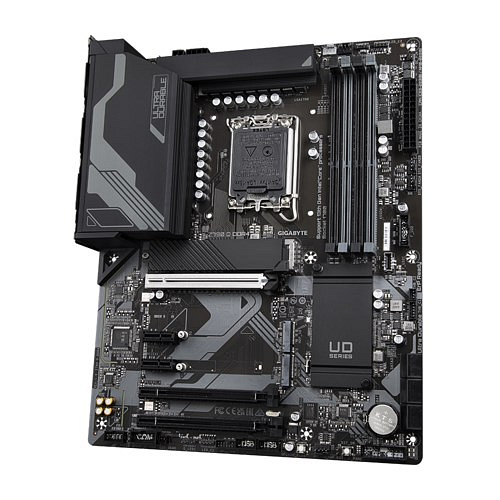

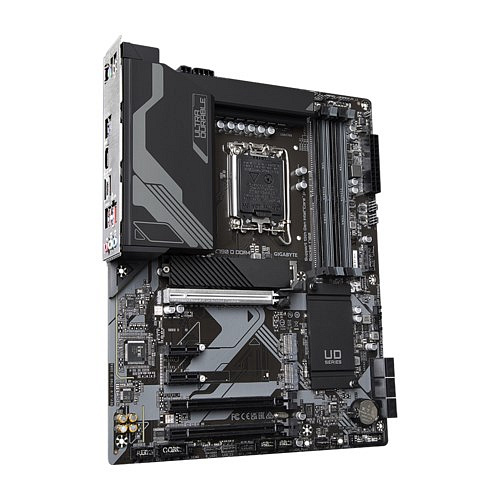

GIGABYTE Z790 D DDR4
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance:Twin 16*+1+1 Phases Digital VRM Solution
- Dual Channel DDR4:4*SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch:PCIe 5.0 x16 Slot with Quick Release & Screwless Design
- Fast Networks:2.5GbE LAN
- Extended Connectivity:HDMI, Front USB-C® 5Gb/s, Rear USB-C® 20Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
* 8+8 phases parallel power design
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® Z790 Express Chipset
Memory
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+1 USB 2.0 Hub:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

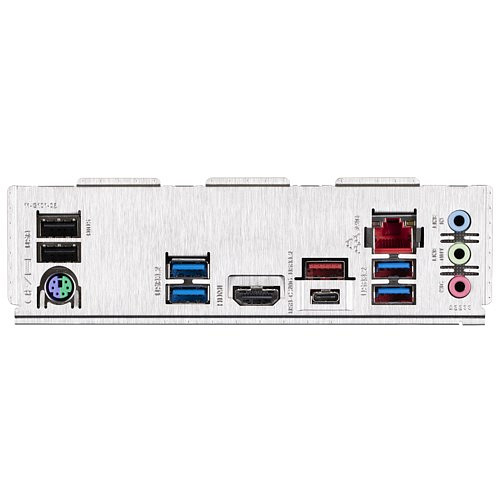

Back Panel Connectors
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI 2.0 port
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Gigabyte Technology Co., Ltd., No. 6, Nandian Road, Linkou District, New Taipei City 244, Taiwan, support@gigabyte.com
