BAZAR - ASUS MB Sc sTR5 Pro WS TRX50-SAGE WIFI, AMD TRX50, 4xDDR5, WiFi, CEB (Komplet)
Kód: 1887786Skladem1ks
Termín a způsob doručení
Formát základní desky:CEB; Chipset:AMD TRX50; Socket (patice):Socket TRX5; Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:3; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:5; PCI Express x1:0; PCI:0; LAN:2.5Gbit/s, 10Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:0; HDMI:0; VGA:0; DVI:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1887786
EAN:
1887786
Záruka:
6 Měsíc(ů)
Stav:
Bazar
Technologie paměti RAM:
DDR5
Socket (patice):
Socket TRX5
Formát základní desky:
CEB
Chipset:
AMD TRX50
PCI Express x16:
5
Podpora RAID:
1, 5, 10
COM port:
Ano
LPT port:
Ne
Pro procesory:
AMD
Počet paměťových slotů:
4
3.5mm Jack:
Ano
LAN:
2.5Gbit/s, 10Gbit/s
Bezdrátové připojení:
WiFi + Bluetooth
Led Header:
Ne
TPM:
Ano
USB 2:
6
USB 3:
8
USB C:
2
M.2 slot:
3
SATA 3:
4
Popis BAZAR - ASUS MB Sc sTR5 Pro WS TRX50-SAGE WIFI, AMD TRX50, 4xDDR5, WiFi, CEB (Komplet)
otestovany, plne funkcni produkt (nahrada od vyrobce) v kompletnim neorig. baleni
.
ASUSTeK Computer Inc., Li-Te Road 15 Peitou, Tchaj-pej Tchaj-wan Čínská republika, shop_cz@asus.com
ASUS Pro WS TRX50-SAGE WiFi
AMD TRX50 CEB workstation motherboard, CPU and memory overclocking ready, robust 36 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support
- AMD socket sTR5 supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors.
- CPU and memory overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
- Robust power and thermal design: 36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad.
- Ultrafast connectivity: three PCIe® 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C® and SlimSAS NVMe support.
- Server-grade IPMI remote management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management
- Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
CPU
AMD Socket sTR5 for RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors *
* Refer to www.asus.com for CPU support list.
Chipset
AMD TRX50 Chipset
Memory
4 x DIMM slots, DDR5, ECC Registered Memory*
4 Channel Memory Architecture
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Expansion Slots
AMD RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors
2 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot(x8 mode)
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot(x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
Storage
Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports
AMD RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
LAN
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® I226-LM 2.5Gb Ethernet
WiFi & Bluetooth
---Místo pro Wifi a BT---
USB
Rear USB (Total 9 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A )
2 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 27W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
"Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

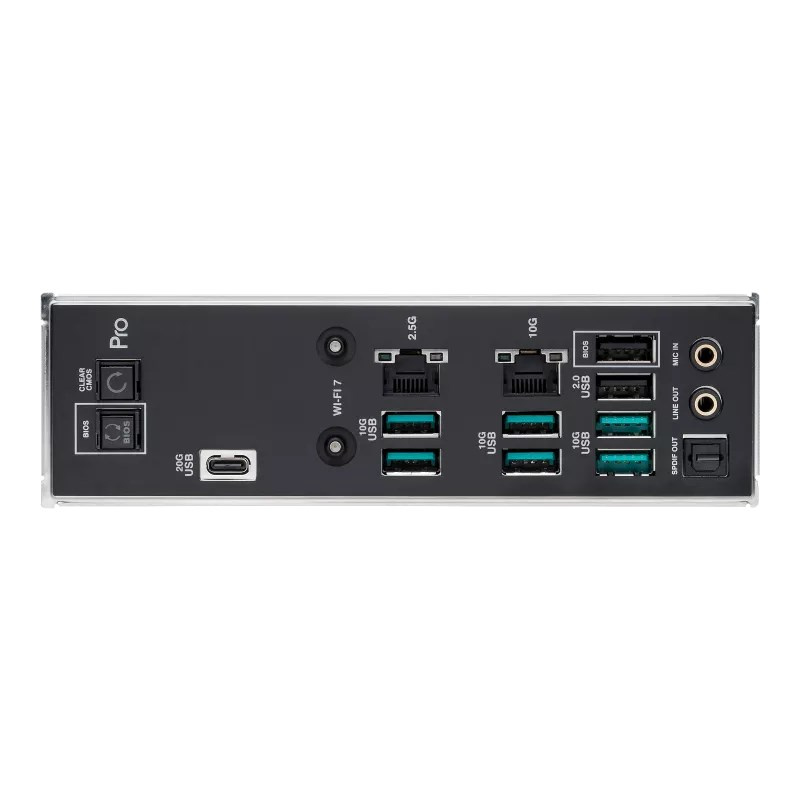

Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 port (2 x Type-A)
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
2 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x BMC header
1 x COM Port header
1 x USB4 header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin system panel header
1 x Chassis intrusion header
1 x Thermal Sensor header
Special Features
ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink and onboard thermal pads
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
Software Features
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE (UEFI mode)
Accessories
Cables
2 x SATA 6Gb/s cables
1 x CPU 8-pin to PCIe 8-pin adapter cable package
1 x Thermistor cable pack
Miscellaneous
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x M.2 Q-Latch package(2 in 1)
2 x M.2 Rubber Packages
1 x Q-connector
Documentation
1 x ACC Express Activation Key Card
1 x QSG
Operating System
"Windows® 11
Windows® 10 64-bit "
Form Factor
CEB Form Factor
12 inch x 11 inch (30.5 cm x 28.0 cm)
ASUSTeK Computer Inc., Li-Te Road 15 Peitou, Tchaj-pej Tchaj-wan Čínská republika, shop_cz@asus.com
