ASUS MB Sc LGA1700 PRO WS W680-ACE, Intel W680, 4xDDR5, 1xDP, 1xHDMI, 1xVGA
Kód: 431990Skladem1ks
Termín a způsob doručení
Formát základní desky:ATX; Chipset:Intel W680; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:3; SATA 3:8; Podpora RAID:0, 1, 5, 10; PCI Express x16:4; PCI Express x8:0; PCI Express x1:1; PCI:0; LAN:2.5Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:1; DVI:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
431990
EAN:
4711387006177
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket 1700
Formát základní desky:
ATX
Chipset:
Intel W680
PCI Express x16:
4
Podpora RAID:
1, 5, 10
COM port:
Ano
LPT port:
Ano
Pro procesory:
Intel
Počet paměťových slotů:
4
3.5mm Jack:
Ano
LAN:
2.5Gbit/s
DisplayPort:
1
Bezdrátové připojení:
bez
Led Header:
Ne
TPM:
Ano
PCI Express x1:
1
USB 2:
6
USB 3:
7
USB C:
2
M.2 slot:
3
SATA 3:
8
VGA:
1
HDMI:
1
Popis ASUS MB Sc LGA1700 PRO WS W680-ACE, Intel W680, 4xDDR5, 1xDP, 1xHDMI, 1xVGA

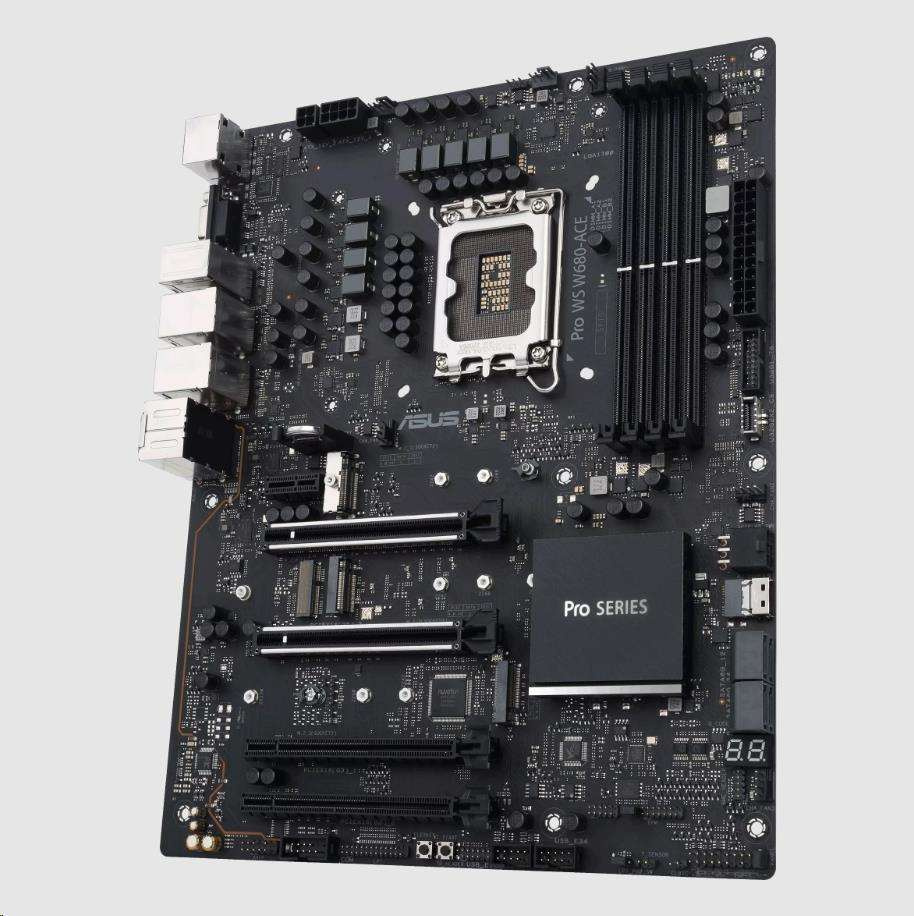

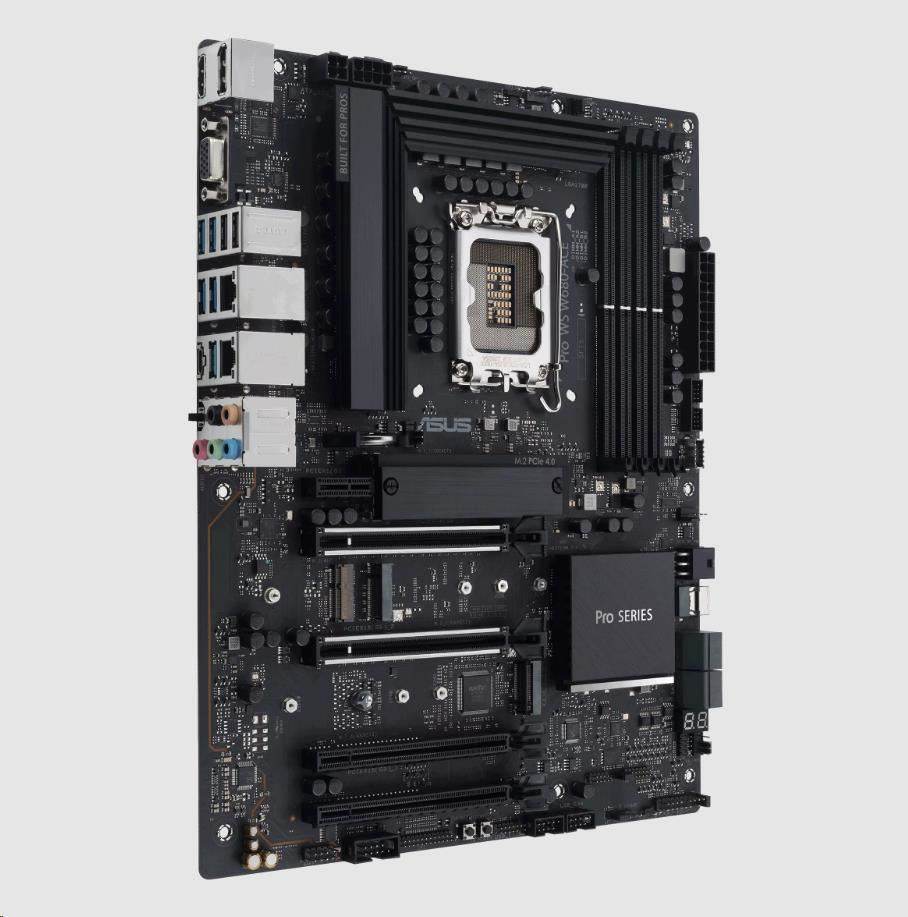

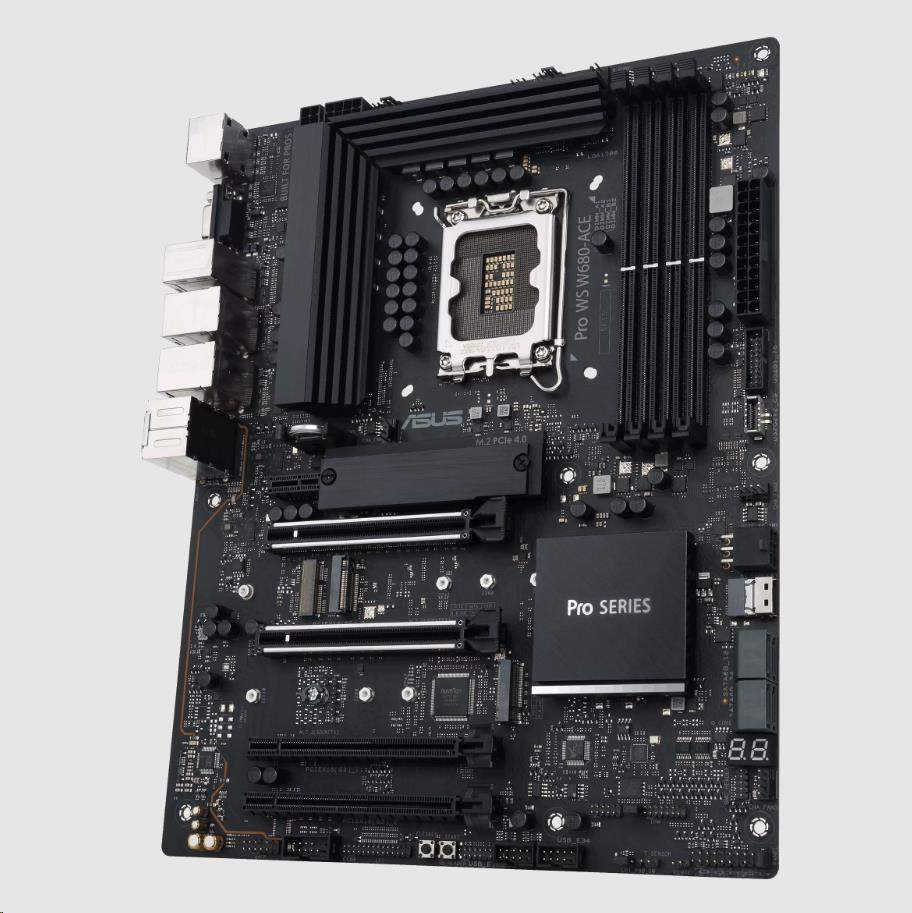

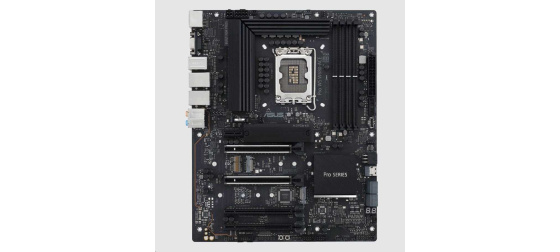

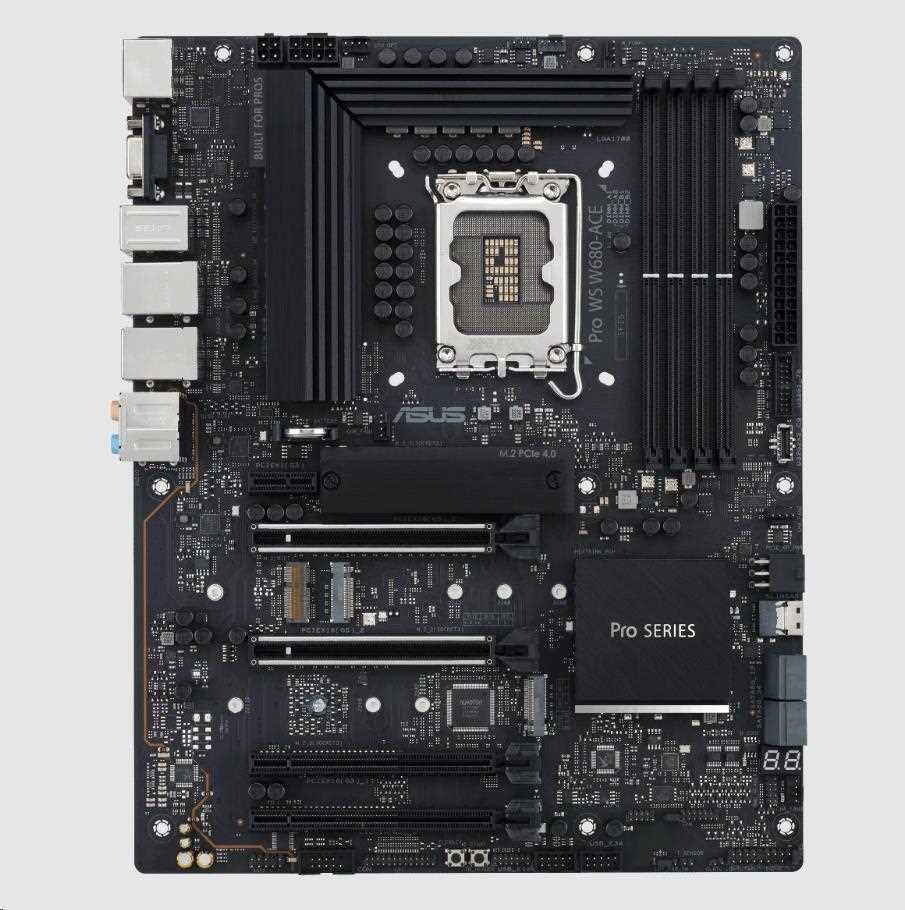

Pro WS W680-ACE
Intel® W680 (LGA 1700) ATX motherboard, PCIe® 5.0, DDR5, dual Intel® 2.5 Gb Ethernet, three PCIe 4.0 M.2 slots, USB 3.2 Gen 2x2 front panel connector, SlimSAS, SATA 6 Gbps, HDMI®, DisplayPort and VGA
- Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel® 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C®, Thunderbolt™ 4 header support, TPM header, LPT header
- Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
- Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability
Model
Pro WS W680-ACE
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
* Refer to www.asus.com for CPU support list.
Chipset
Intel® W680 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 ECC and Non-ECC Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
4 x DIMM, Max. 128GB, DDR5 ECC and Non-ECC Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI® port***
1 x VGA port
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors*
- 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode)
Intel® W680 Chipset
- 2 x PCIe 3.0 x16 slots (supports x4 mode)
- 1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
Storage
Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® W680 Chipset**
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)***
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
*** SlimSAS slot can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately.
Ethernet
2 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
USB
Rear USB (Total 8 ports)
- 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
Back Panel I/O Ports
-2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®)
-4 x USB 3.2 Gen 1 ports (4 x Type-A)
-2 x USB 2.0 ports (2 x Type-A)
-1 x DisplayPort
-1 x HDMI® port
-1 x VGA port
-2 x Intel® 2.5Gb Ethernet ports
-5 x Audio jacks
-1 x BIOS FlashbackTM button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin W_PUMP+ header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS port
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x LPT header
1 x T-sensor
1 x Clear CMOS header
1 x COM Port header
1 x BMC Header
1 x Front Panel Audio header (AAFP)
1 x Start button
1 x Flexkey button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x M.2 slot (Key E)
1 x LPT_P80 Switch
1 x Thunderbolt™ header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- SafeDIMM
- SafeSlot
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
Software Features
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
- Power Saving
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
IT Management software supported
- ASUS Control Center Express(ACCE)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
FlexKey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

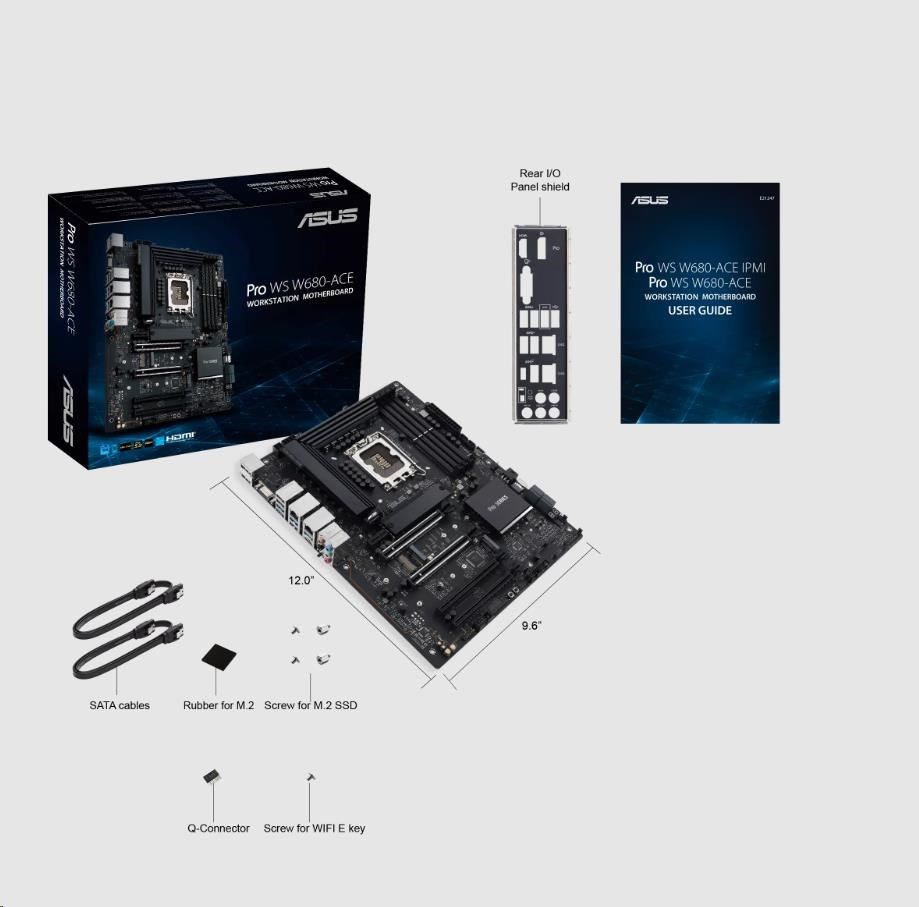

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x Q-connector
1 x M.2 Rubber Packages
2 x Screw package for M.2 SSD
1 x Screw package for M.2 Key E
1 x I/O Shield
Documentation
1 x User guide
1 x ACC Express Activation Key Card
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
