ASUS MB Sc AM5 PROART X870E-CREATOR WIFI, AMD X870, 4xDDR5, 1xHDMI, 2xUSB4, WiFi
Kód: 1887463Skladem34ks
Termín a způsob doručení
Formát základní desky:ATX; Chipset:AMD X870; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:4; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:2; PCI Express x8:0; PCI Express x1:0; PCI:0; LAN:10Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:0; HDMI:1; VGA:0; DVI:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1887463
EAN:
4711387730775
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket AM5 (LGA 1718)
Formát základní desky:
ATX
Chipset:
AMD X870
PCI Express x16:
2
Podpora RAID:
1, 10
COM port:
Ano
LPT port:
Ne
Pro procesory:
AMD
Počet paměťových slotů:
4
3.5mm Jack:
Ano
LAN:
10Gbit/s
Bezdrátové připojení:
WiFi + Bluetooth
Led Header:
Ano
TPM:
Ne
USB 2:
7
USB 3:
9
USB C:
4
M.2 slot:
4
SATA 3:
4
HDMI:
1
Počet Thunderbolt:
2
Popis ASUS MB Sc AM5 PROART X870E-CREATOR WIFI, AMD X870, 4xDDR5, 1xHDMI, 2xUSB4, WiFi

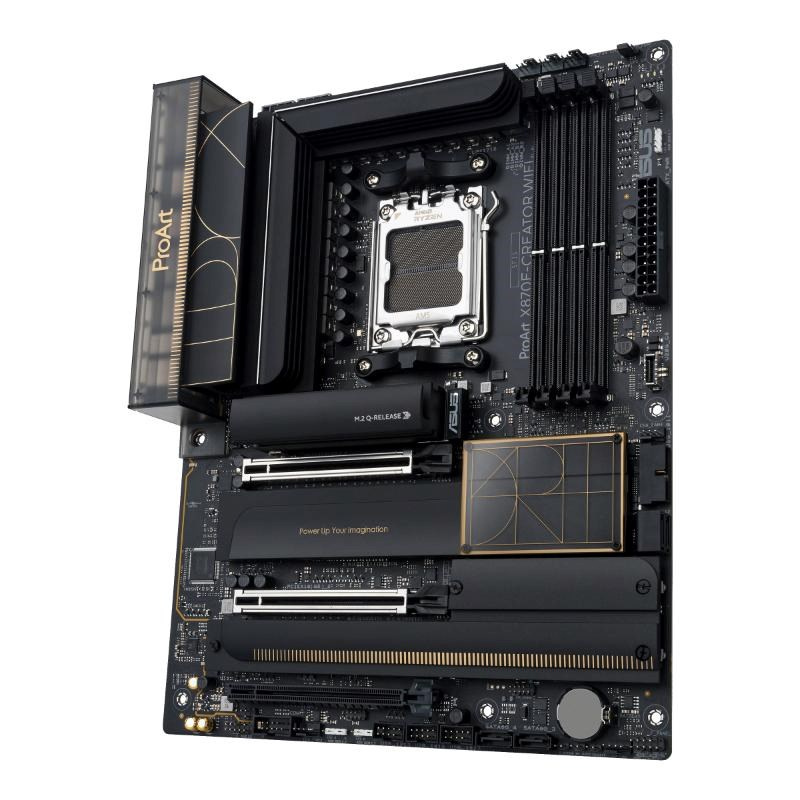

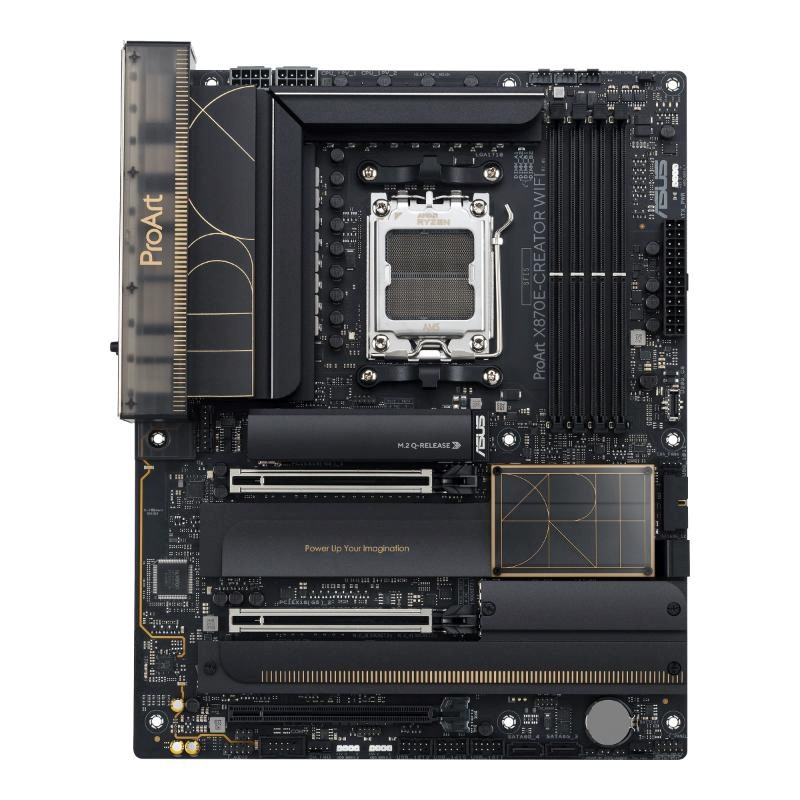

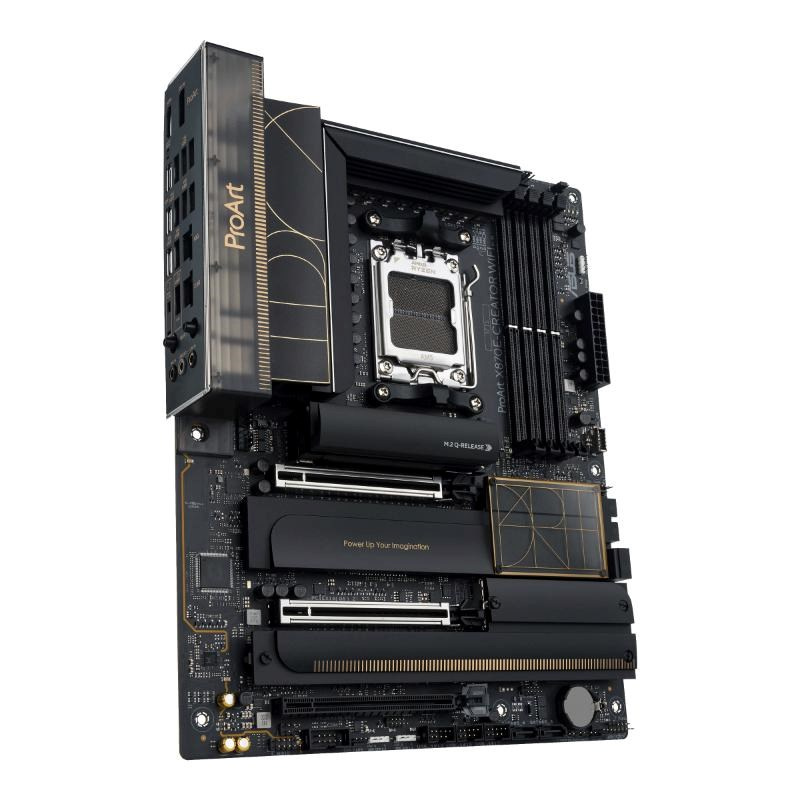

ASUS ProArt X870E-CREATOR WIFI
When only the fastest will do, ROG X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ROG X870E/X870 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
CPU
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000 & 9000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset
AMD X870
Memory
4 x DIMM slots, max. 256GB, DDR5 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
1 x HDMITM port**
2 x USB4® ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**** Output at USB4_EC1 and USB4_EC2, each requires a USB-C® to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
AMD Ryzen™ 7000 & 8000 & 9000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
LAN
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
" Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
USB
Rear USB (Total 11 ports)
2 x USB4® (40Gbps) with ASMedia ASM4242 USB4® controller ports (2 x USB Type-C®)
1 x USB 20Gbps port(s) (1 x USB Type-C®)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Audio
"Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

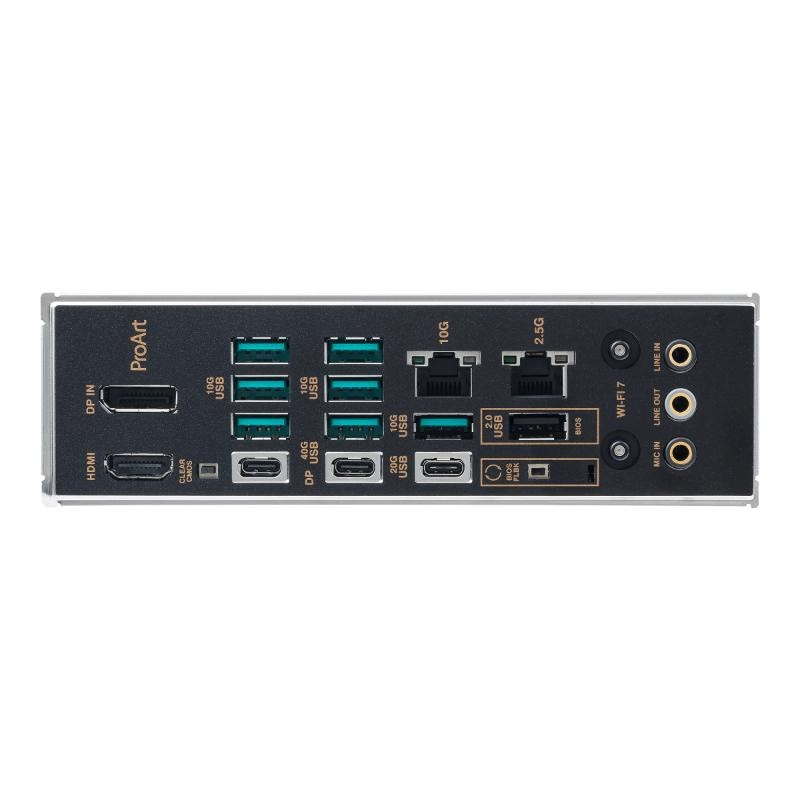

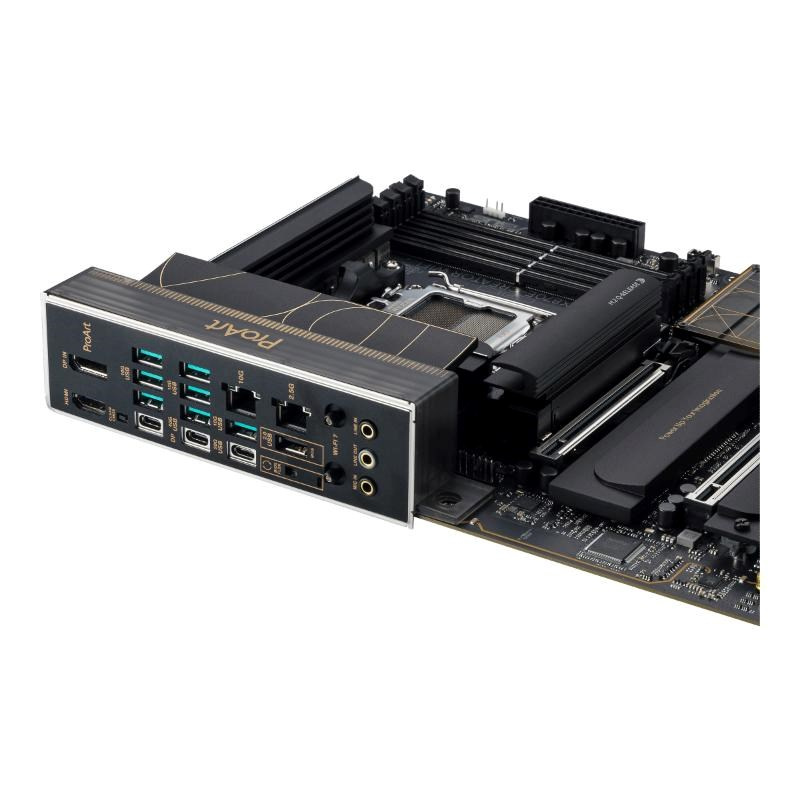

Back Panel I/O Ports
2 x USB4® (40Gbps) with ASMedia ASM4242 USB4® controller ports (2 x USB Type-C®)
1 x USB 20Gbps port(s) (1 x USB Type-C®)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMITM port
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- Addressable Gen 2 headers
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max 2.5A
- Compatible with PD3.0
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
- ASUS GlideX
ASUS DriverHub
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
ProArt Creator Hub
CreationFirst
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
Remote Management Features
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

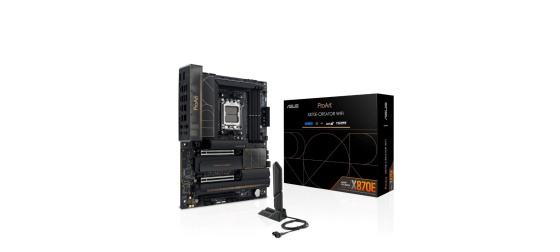

Accessories
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
30.5 cm x 24.4 cm
ASUSTeK Computer Inc., Li-Te Road 15 Peitou, Tchaj-pej Tchaj-wan Čínská republika, shop_cz@asus.com
