ASRock MB Sc LGA1851 H810M-H, Intel H810, 2xDDR5, 1xHDMI, mATX
Kód: 1883061Skladem132ks
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:Intel H810; Socket (patice):Socket 1851; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:Bez RAID podpory; PCI Express x16:1; PCI Express x8:0; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:0; HDMI:1; VGA:0; DVI:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1883061
EAN:
4711581490833
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket 1851
Formát základní desky:
micro ATX
Chipset:
Intel H810
PCI Express x16:
1
Podpora RAID:
Bez RAID podpory
COM port:
Ne
LPT port:
Ne
Pro procesory:
Intel
Počet paměťových slotů:
2
3.5mm Jack:
Ano
LAN:
1Gbit/s
Bezdrátové připojení:
bez
Led Header:
Ano
TPM:
Ano
PCI Express x1:
1
USB 2:
6
USB 3:
4
M.2 slot:
1
SATA 3:
4
HDMI:
1
Popis ASRock MB Sc LGA1851 H810M-H, Intel H810, 2xDDR5, 1xHDMI, mATX

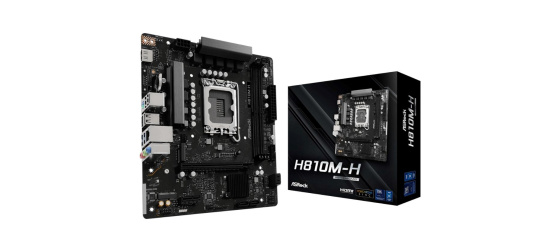

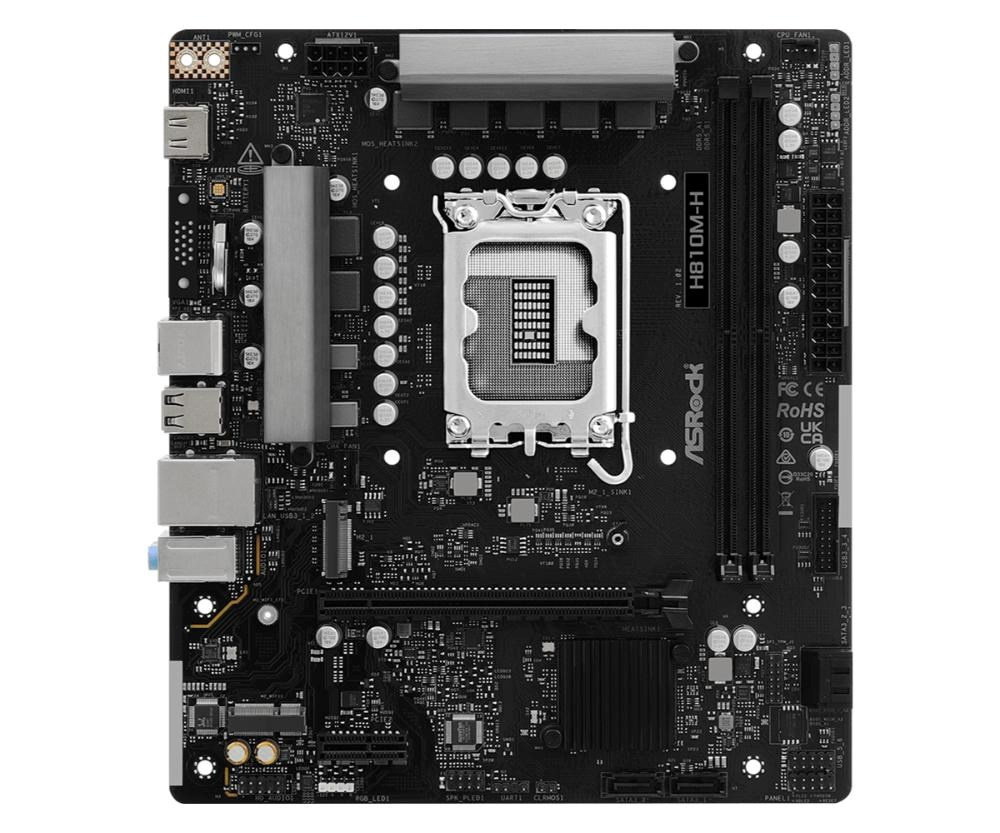

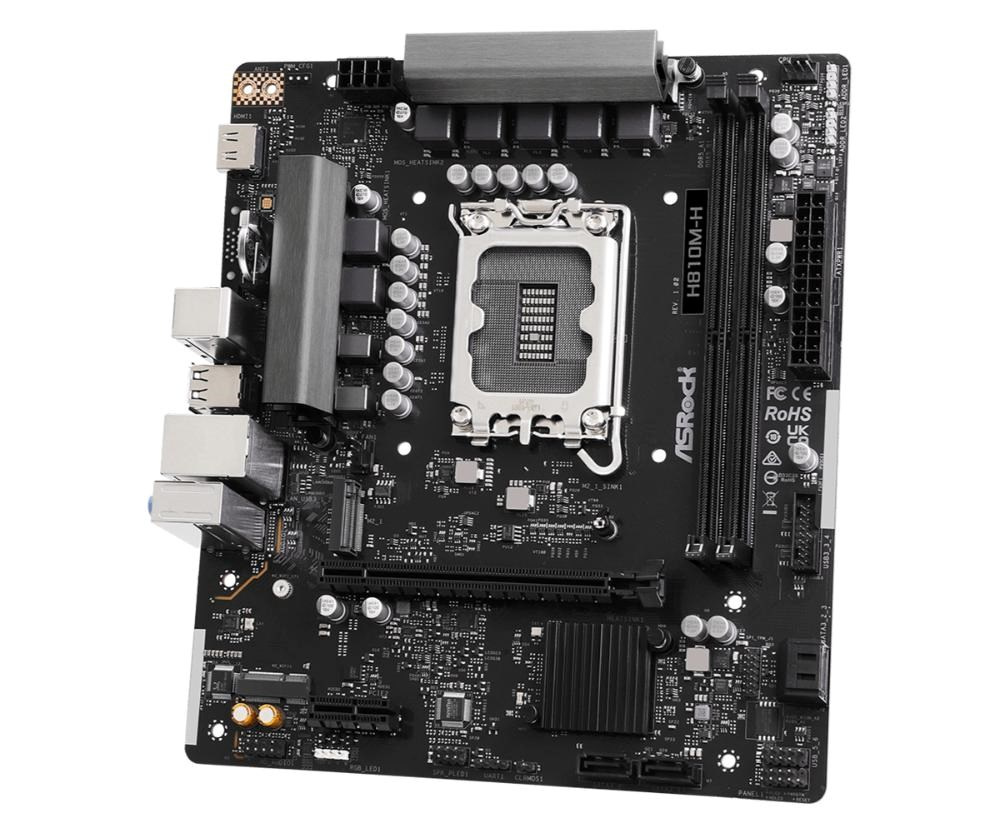

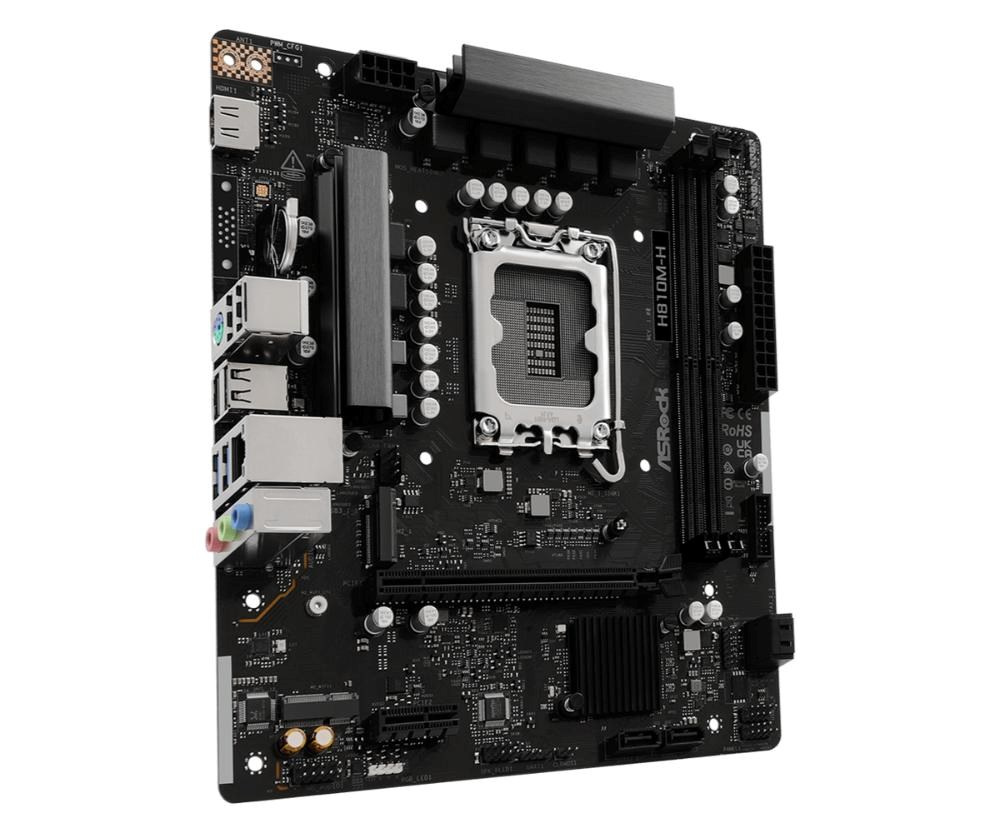

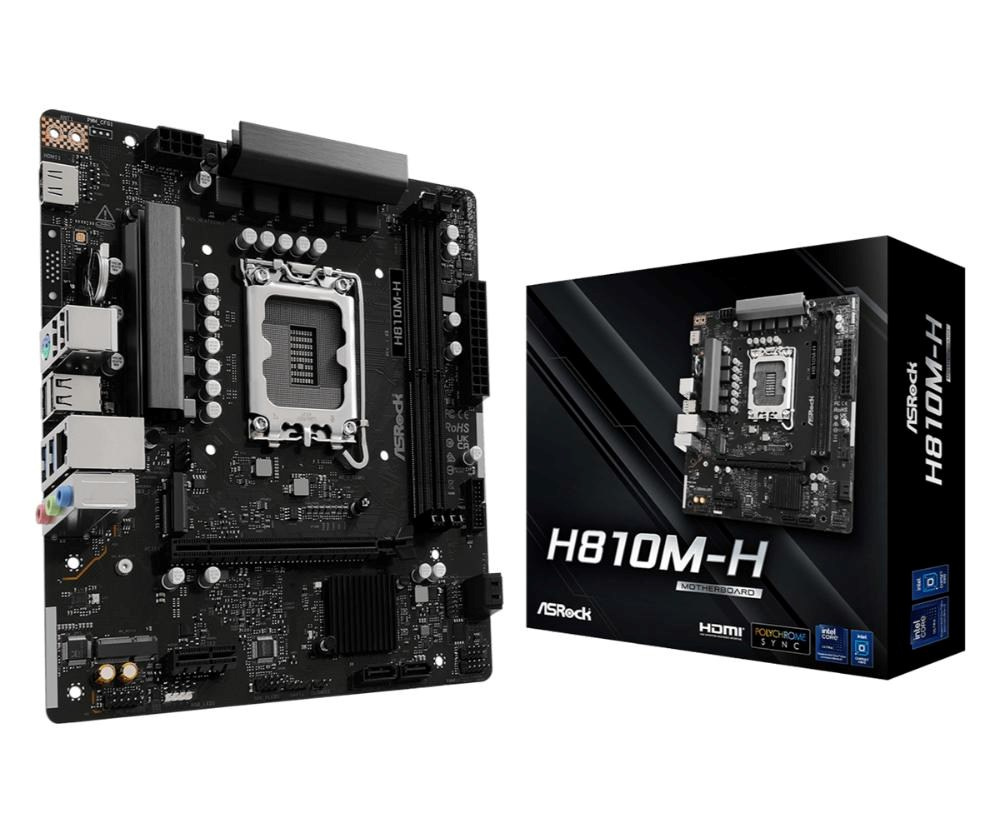

ASRock H810M-H
Built to deliver reliable performance with versatile features, perfect for daily tasks.
Unique Feature
Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+1+1+1+1 Power Phase
-ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
EZ Update
- ASRock Auto Driver Installer
CPU
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)
- Integrated NPU for dedicated AI acceleration
Chipset
- Intel® H810
Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6400*
- Supports Clocked Unbuffered DIMM (CUDIMM)
- Max. capacity of system memory: 128GB*
- Supports Intel® Extreme Memory Profile (XMP) 3.0x
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Intel® Xe LPG Graphics Architecture
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
Chipset:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
USB
Chipset:
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)
Internal I/O
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

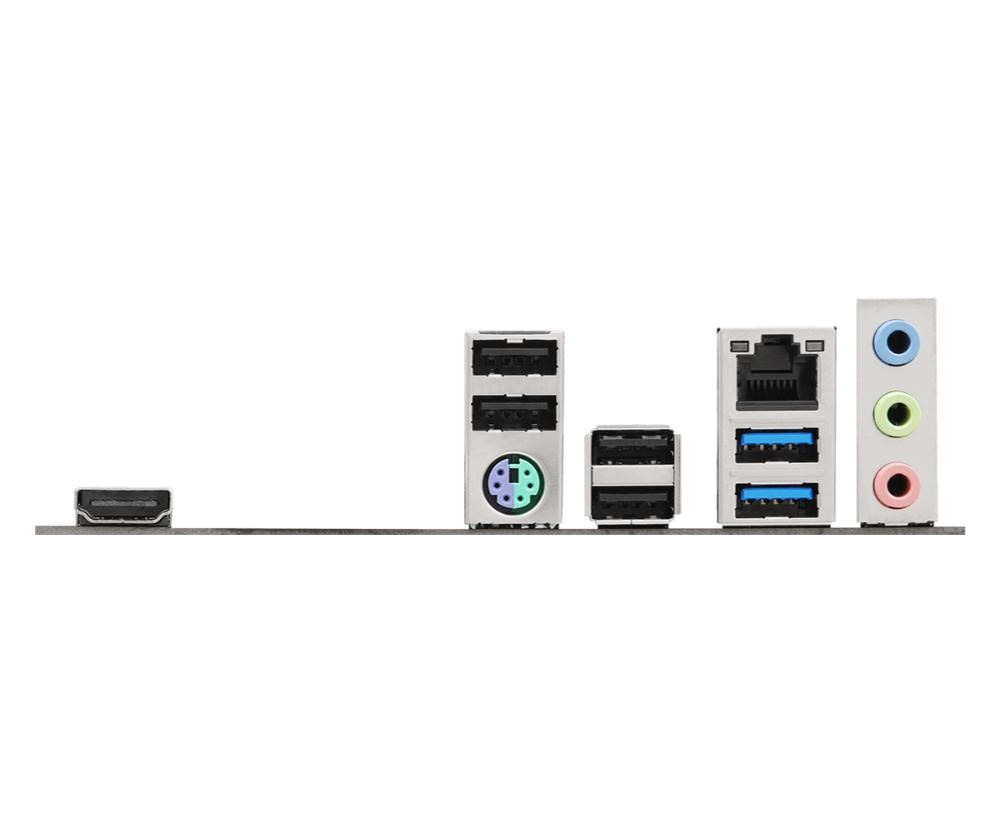

Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Accessories
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Form Factor
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
OS
- Microsoft Windows® 11 64-bit
OS
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
ASRock Inc., No. 37, Sec. 2, Rueiguang Rd., Neihu District, Taipei City 114, Taiwan, info@asrock.com.tw
