ASRock MB Alder Lake-N N100M, Intel N100, 1xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX
Kód: 380942Skladem252ks
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:Intel; Pro procesory:Integrovaný procesor; Technologie paměti RAM:DDR4; Počet paměťových slotů:1; M.2 slot:1; SATA 3:2; Podpora RAID:Bez RAID podpory; PCI Express x16:1; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:1; DVI:0; USB 2:8; USB 3:4; USB C:1; TPM; 3.5mm Jack.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
380942
EAN:
4710483943058
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR4
Formát základní desky:
micro ATX
Chipset:
Intel
PCI Express x16:
1
Podpora RAID:
Bez RAID podpory
COM port:
Ne
LPT port:
Ne
Pro procesory:
Integrovaný procesor
Počet paměťových slotů:
1
3.5mm Jack:
Ano
LAN:
1Gbit/s
DisplayPort:
1
Bezdrátové připojení:
bez
Led Header:
Ne
TPM:
Ano
PCI Express x1:
1
USB 2:
8
USB 3:
4
USB C:
1
M.2 slot:
1
SATA 3:
2
VGA:
1
HDMI:
1
Popis ASRock MB Alder Lake-N N100M, Intel N100, 1xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX

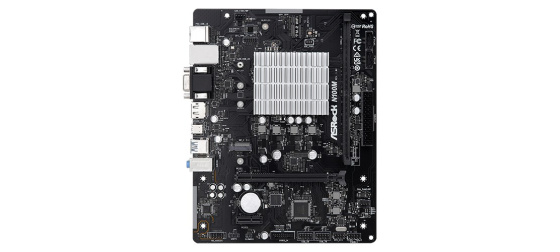

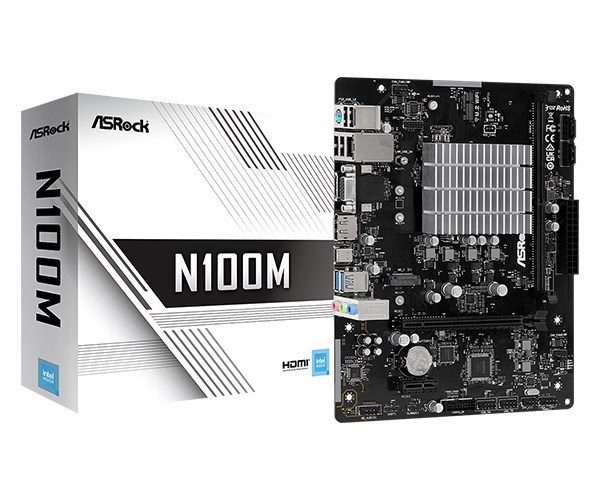

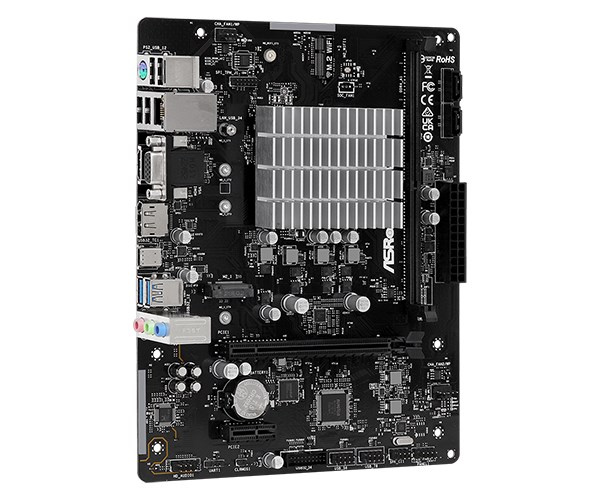

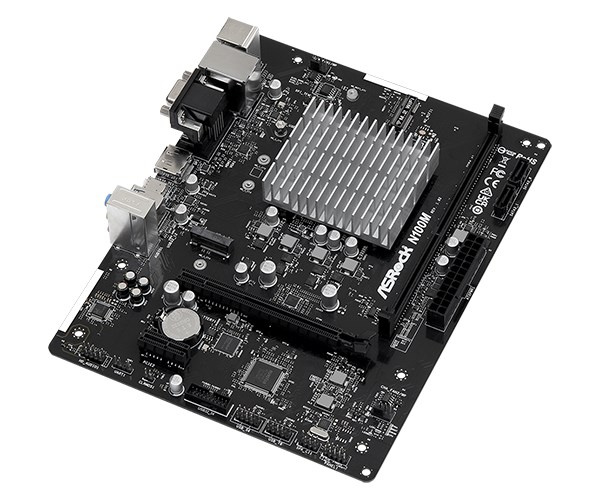

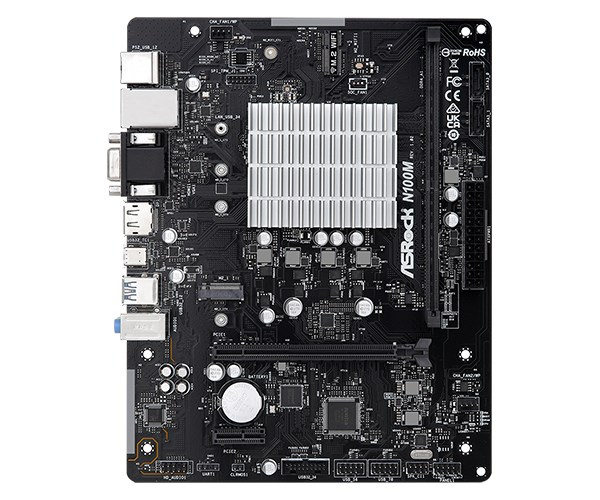

ASRock N100M
- Intel® Quad-Core Processor N100 (up to 3.4 GHz)
- Supports 1 DDR4 DIMM
- 1 PCIe 3.0 x16 (x2 mode), 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: D-Sub, HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec
- 2 SATA3, 1 M.2 (PCIe Gen3x2)
- 1 USB 3.2 Gen2 Type-C (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.
CPU
- Intel® Quad-Core Processor N100 (Up to 3.4 GHz)
- Supports Intel® Turbo Boost Technology
Memory
- 1 x DDR4 DIMM Slot
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB
Graphics
- Integrated Intel® UHD Graphics: 24 EUs inside (Up to 750MHz)
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.2 and max. resolution up to 4K 60Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
Slots
- 1 x PCIe 3.0 x16 Slot (PCIE1), supports x2 mode
- 1 x PCIe 3.0 x1 Slot (PCIE2)
- 1 x M.2 Socket (Key E), supports type 2230 Intel® CNVio (Integrated WiFi/BT)
Storage
- 1 x M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x2 (16 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors
USB
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Internal Connector
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

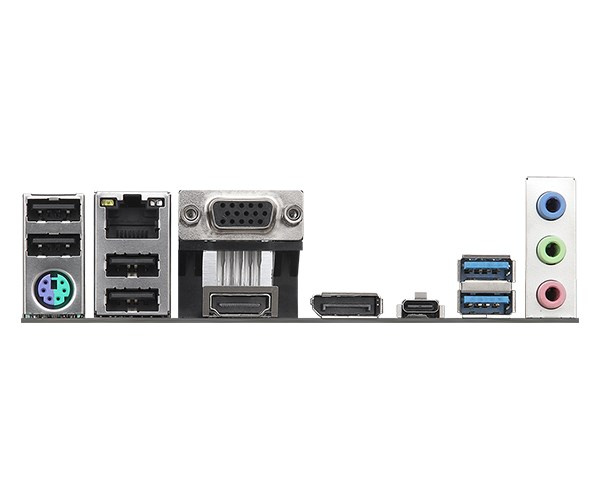

Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Accessories
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets
Form Factor
- Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm
- Solid Capacitor design
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Unique Feature
Rock-Solid Durability
- 2+1+1 Power Phase
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
ASRock Inc., No. 37, Sec. 2, Rueiguang Rd., Neihu District, Taipei City 114, Taiwan, info@asrock.com.tw
