HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430
Kód: 1881017Skladem3ks
Termín a způsob doručení
Provedení:Desktop, Rack mounted 19"; Funkce:QoS (Quality of service), PoE (Power over ethernet), L2; Technologie:Gigabit Ethernet 1000Mbps; Počet portů LAN:16; Počet portů LAN:16; Podporované standardy PoE:802.3af; PoE budget (W):125; Počet PoE Out portů:16; Počet PoE Out portů:16; Počet SFP portů:0; Počet SFP portů:0; Počet portů SFP28:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1881017
EAN:
190017602202
Záruka:
99 Doživotní
Stav:
Maximální počet portů:
16
Provedení:
Desktop, Rack mounted 19"
Technologie:
Gigabit Ethernet 1000Mbps
Management:
Ne
Počet portů LAN:
16
Ventilátor:
Ne
Přenosová rychlost LAN (Mb/s):
24
Funkce:
QoS (Quality of service), L2, PoE (Power over ethernet)
Podporované standardy PoE:
802.3af
Počet PoE Out portů:
16
PoE budget (W):
125
Počet portů LAN:
16,000000000
Maximální počet portů:
16,000000000
Počet PoE Out portů:
16,000000000
Počet SFP portů:
0,000000000
PoE budget (W):
125,000000000
Počet portů SFP28:
0,000000000
Popis HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430

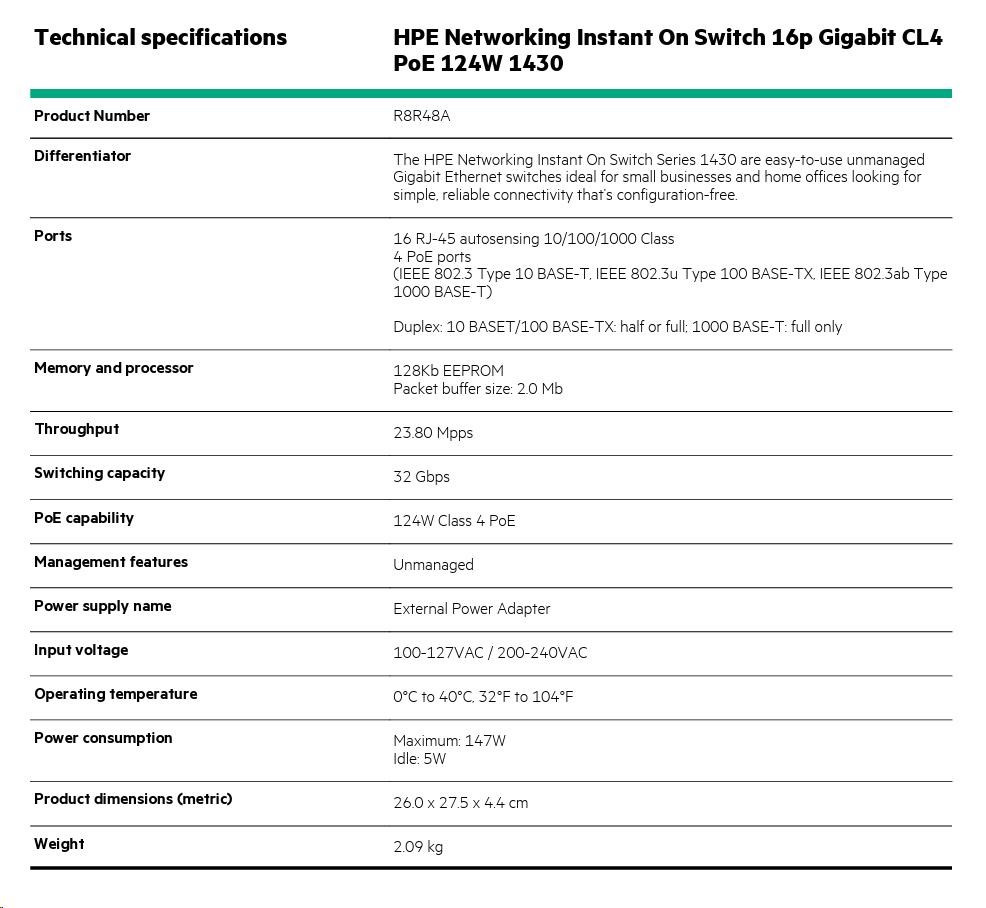

| HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430 (R8R48A) | ||
| I/O ports and slots | 16 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only | |
| Dimensions | 260(d) x 275(w) x 44(h) mm | |
| Weight | 4.60 lb (2.09 kg) | |
| Processor and Memory | 128Kb EEPROM; Packet buffer size: 2.0 Mb | |
| 100 Mb latency | < 2.7 µSec | |
| 1000 Mb latency | < 1.80 µSec | |
| Throughput (Mpps) | 23.80 Mpps | |
| Capacity | 32 Gbps | |
| MAC address table size | 8192 entries | |
| Reliability MTBF (years) | 126.1 | |
| Operating temperature | 32°F to 104°F (0°C to 40°C) | |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing | |
| Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft | |
| Nonoperating/ storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing | |
| Altitude | up to 10,000 ft (3 km) | |
| Acoustics | Fanless | |
| Frequency | 50Hz/60Hz | |
| AC voltage | 100-127VAC / 200- 240VAC | |
| Current | 1.7A /0.8A | |
| Maximum power rating | 147W | |
| Idle power | 5W | |
| PoE power | 124W Class 4 PoE | |
| Power Supply | Internal Power Supply | |
| Safety |
| |||
| Emissions |
| |||
| Immunity | BS/EN 55035, CISPR 35, KS C 9835 | |||
| Generic | EN 55035, CISPR 35 | |||
| EN | EN/IEC 61000-4-2 | |||
| ESD | EN/IEC 61000-4-3 | |||
| Radiated | EN/IEC 61000-4-4 | |||
| EFT/Burst | EN/IEC 61000-4-5 | |||
| Surge | EN/IEC 61000-4-6 | |||
| Conducted | EN/IEC 61000-4-8 | |||
| Power frequency magnetic field | EN/IEC 61000-4-11 | |||
| Voltage dips and interruptions | EN/IEC 61000-3-2 | |||
| Harmonics | EN /IEC 61000-3-3 | |||
| Device Management | Unmanaged | |||
| Mounting | ||||
| Mounting positions and supported racking |
| |||
.
Hewlett Packard Enterprise, 3000 Hanover Street Palo Alto, California 94304 United States, https://www.hpe.com/us/en/contact-hpe.html
