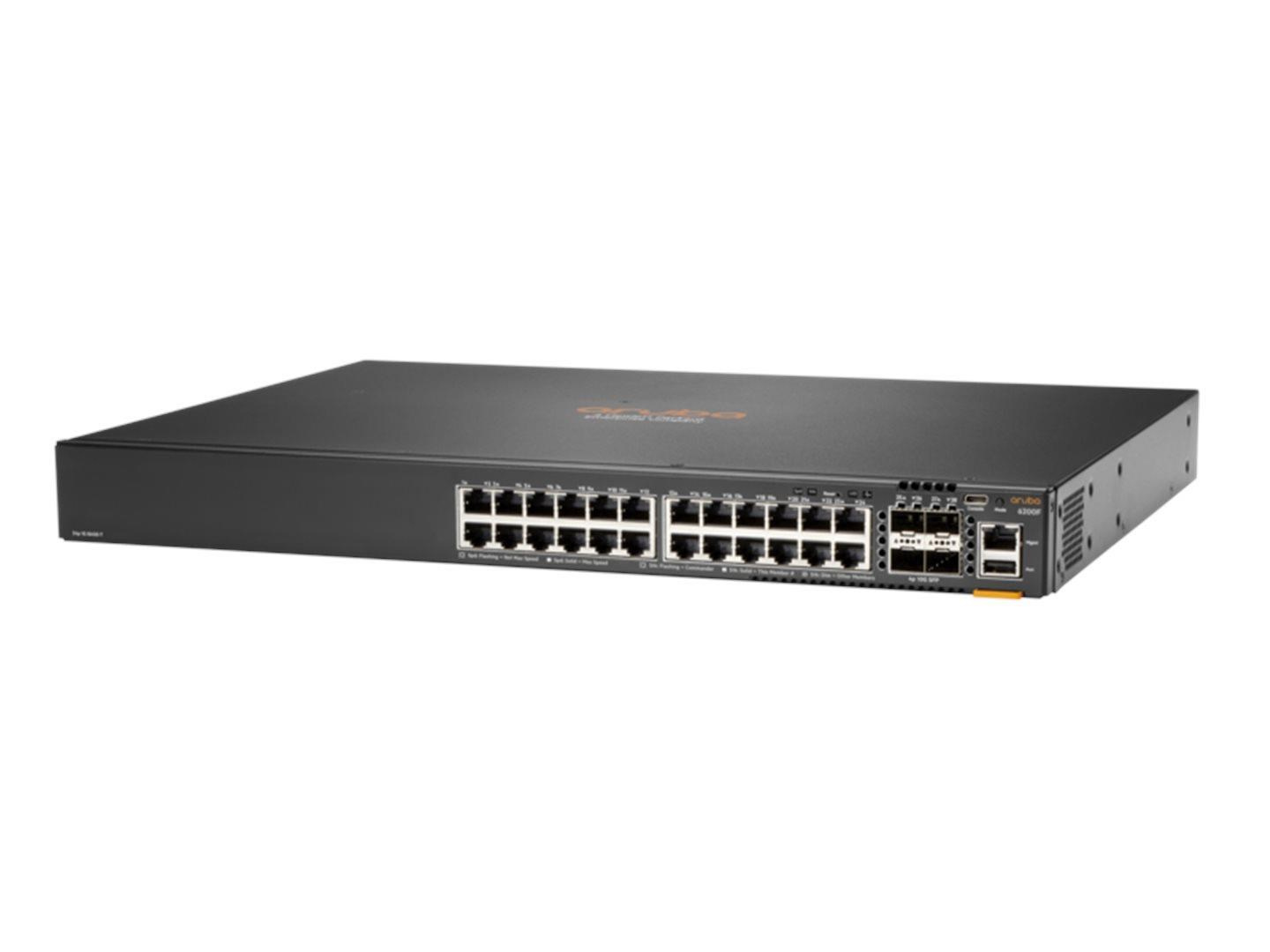

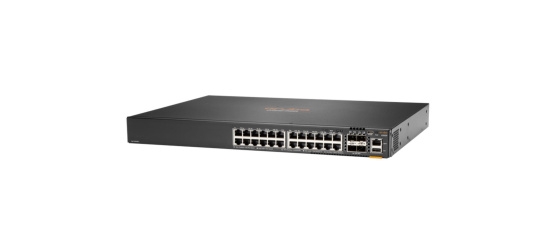

HPE Aruba Networking CX 6200F 24G 4SFP+ Switch JL724A RENEW
Kód: 726370Není skladem
Termín a způsob doručení
Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), L3; Technologie:Gigabit ethernet + 10 Gigabit optika; Počet SFP portů:4; Přenosová rychlost LAN (Mb/s):95; Maximální počet portů:24; Management:SNMP/RMON.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
726370
EAN:
726370
Záruka:
24 Doživotní
Stav:
Maximální počet portů:
24
Provedení:
Rack mounted 19"
Technologie:
Gigabit ethernet + 10 Gigabit optika
Management:
SNMP/RMON
Přenosová rychlost LAN (Mb/s):
95
Funkce:
QoS (Quality of service), VLAN (virtual local area network), L3
Počet SFP portů:
4
Popis HPE Aruba Networking CX 6200F 24G 4SFP+ Switch JL724A RENEW
HPE Aruba Networking CX 6200F 24G 4SFP+ Switch JL724A RENEW

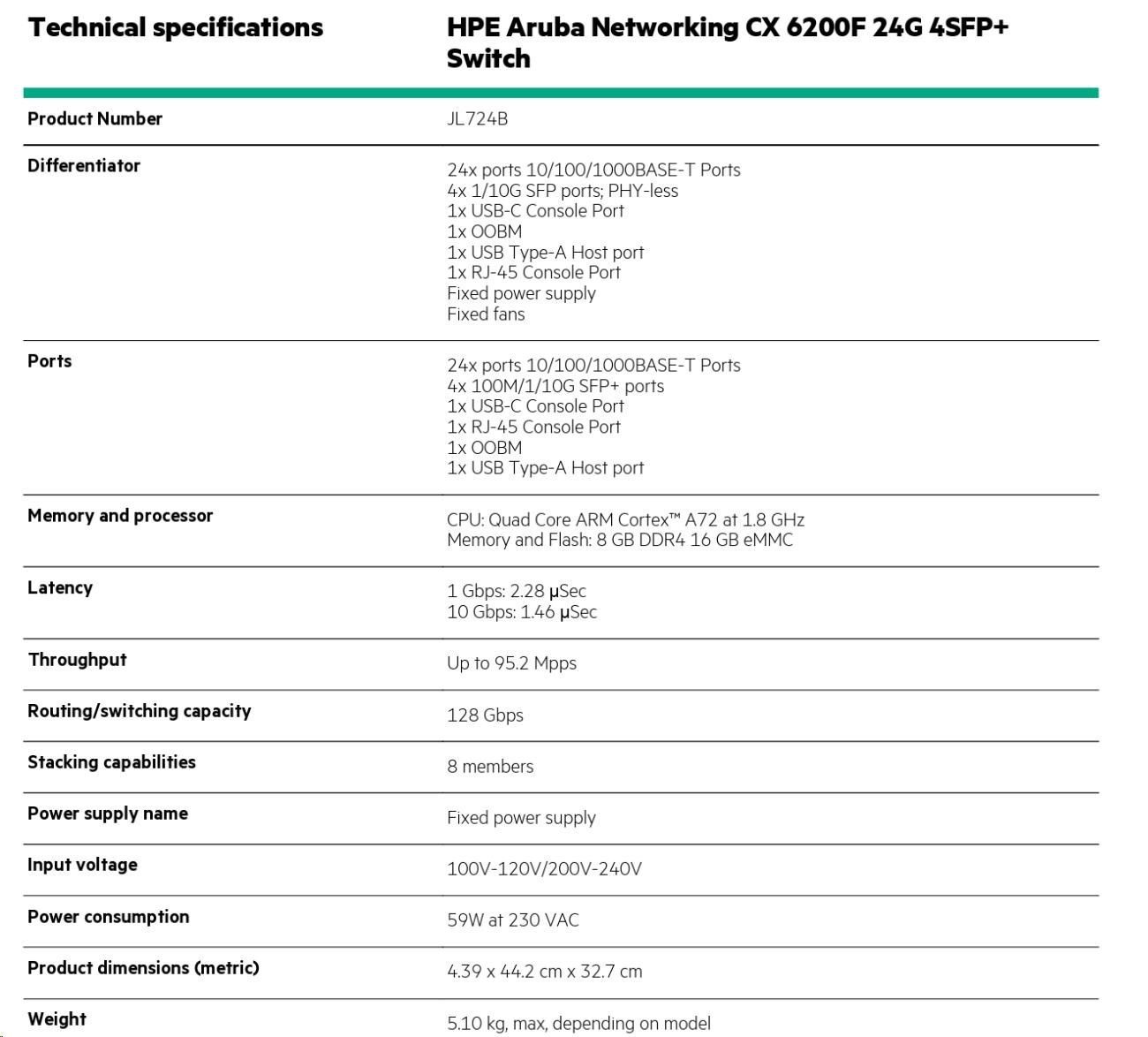

| HPE Aruba Networking CX 6200F 24G 4SFP+ Switch (JL724A) | ||
| Description | 24x ports 10/100/1000BASE-T Ports
4x 1/10G SFP ports
1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with HPE Aruba Networking CX Mobile App | |
| Power supplies | Fixed power supply | |
| Fans | Fixed fans | |
| Physical characteristics | Dimensions | (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73"" x 17.4"" x 12.9"") |
| Weight | 4.36 kg (9.61 lbs) | |
| CPU | Quad Core ARM CortexTM A72 @ 1.8 GHz | |
| Memory and Flash | 8 GB DDR4 16 GB eMMC | |
| Packet buffer | 8 MB packet buffer memory | |
| Performance | Model switching capacity | 128 Gbps |
| Model throughput capacity | Up to 95.2 Mpps | |
| Average latency (LIFO-64-bytes packets) | 1 Gbps: 2.28 µSec 10 Gbps: 1.46 µSec | |
| Stack size | 8 members | |
| Max. stacking distance | Up to 10 kms with long range transceivers | |
| Stacking Bandwidth | 40 Gbps | |
| Switched virtual interfaces (dual stack) | 128 | |
| IPv4 host table (ARP) | 8,192 | |
| IPv6 host table (ND) | 8,192 | |
| IPv4 unicast routes | 2,048 | |
| IPv6 unicast routes | 1,024 | |
| MAC table capacity | 32,768 | |
| IGMP groups | 1,024 | |
| MLD groups | 1,024 | |
| IPv4/IPv6/MAC ACL entries (ingress) | 5,120/1280/5,120 | |
| IPv4/IPv6/MAC ACL entries (egress) | 2,048/512/2,048 | |
| Environment | Operating temperature | 32°F to 113°F (0°C to 45°C) up to 5,000 ft; derate -1°C for every 1,000 ft from 5,000 to 10,000 ft |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing | |
| Non-operating temperature | -40°F to 158°F (-40°C to 70°C) up to 15,000 ft | |
| Non-operating relative humidity | 15% to 90% @ 149°F (65°C) non-condensing | |
| Max operating altitude | Up to 10,000ft (3.048 Km) | |
| Max non-operating altitude | 15,000 feet (4.6 km) max | |
| Acoustics | Sound power, LWAd = 4.9 Bel Sound pressure, LpAm (bystander) = 32.5 dB | |
| Primary airflow | Front and side-to-back | |
| Electrical characteristics | Frequency | 50Hz/60Hz |
| AC voltage | 100-120V/200-240V | |
| Current | 2.5A/1.4A | |
| 80plus.org certification | 80 PLUS Silver | |
| Power consumption (230 VAC) | Hibernation (0 rpm fan): 7W Idle: 49W 100% traffic rate: 59W | |
| Safety | Europe: EN 62368-1:2014 +A11:2017 EN 62368-1:2020 +A11:2020
USA: UL 62368-1, 3rd Ed.,
Canada: CAN/CSA C22.2 No. 62368-1:19, 3rd Ed.
Worldwide: IEC 62368-1:2014 2nd Ed. IEC 62368-1: 2018 3rd Ed.
Taiwan: CNS-15598-1:2020 China: GB 4943.1:2022 | |
| Emissions | Europe: EN 55032:2015 /A11:2020, Class A EN 61000-3-2:2019 EN 61000-3-3:2013 US: FCC 47 CFR part 15B: 2021, Class A Canada: ICES-003 Issue 7: 2020, Class A
Worldwide: VCCI-CISPR 32, Class A CISPR 32: 2016, Class A AS/NZS CISPR 32: 2015, Class A CNS 15936: 2020, Class A KS C 9832 | |
| Lasers | EN 60825-1:2014 / IEC 60825-1:2014 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) | |
| Immunity | Generic | CISPR 35: 2016 |
| EN | EN 55035:2017 / A11:2020 | |
| ESD | EN 61000-4-2 | |
| Radiated | EN 61000-4-3 | |
| EFT/Burst | EN 61000-4-4 | |
| Surge | EN 61000-4-5 | |
| Conducted | EN 61000-4-6 | |
| Power frequency magnetic field | IEC 61000-4-8 | |
| Voltage dips and interruptions | EN 61000-4-11 | |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 | |
| Flicker | EN 61000-3-3, IEC 61000-3-3 | |
| RoHS | EN 63000:2018 / IEC 63000:2018 | |
| Mounting and Enclosure | Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included. | |
.
Hewlett Packard Enterprise, 3000 Hanover Street Palo Alto, California 94304 United States, https://www.hpe.com/us/en/contact-hpe.html
